Deviations from normal Operation

Paper Jam in the Print Engine PE

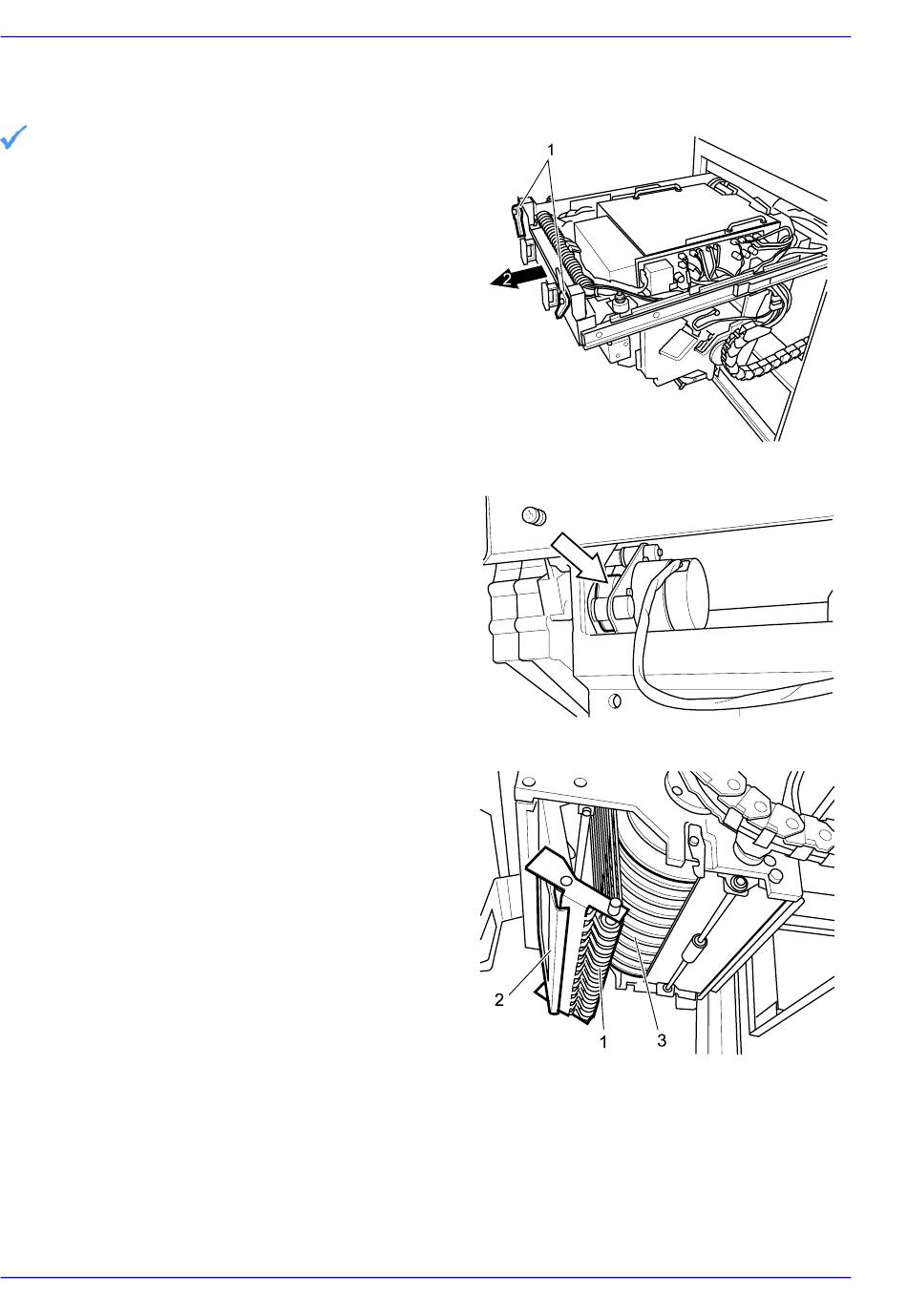

Pull out the print engine:
− Open the LH side door
− Open the locking: 2 levers (1)
− Pull out the PE (2) completely
− Turn the transport belt pulley of the stepper
motor for the print roller
− Unlock (2) the bottom belt assembly (1) and
fold it down
− Remove the paper from the print roller (3)
− Check that all belts of the lower belt assembly
and the print drum sit correctly
7.14
2003-06-01 /PN 9008
