Maintenance
Cleaning the IR Dryer Rack
− Fold the Sorter to the side
− Remove the dryer cover: Turn the screw
through 90° with a coin

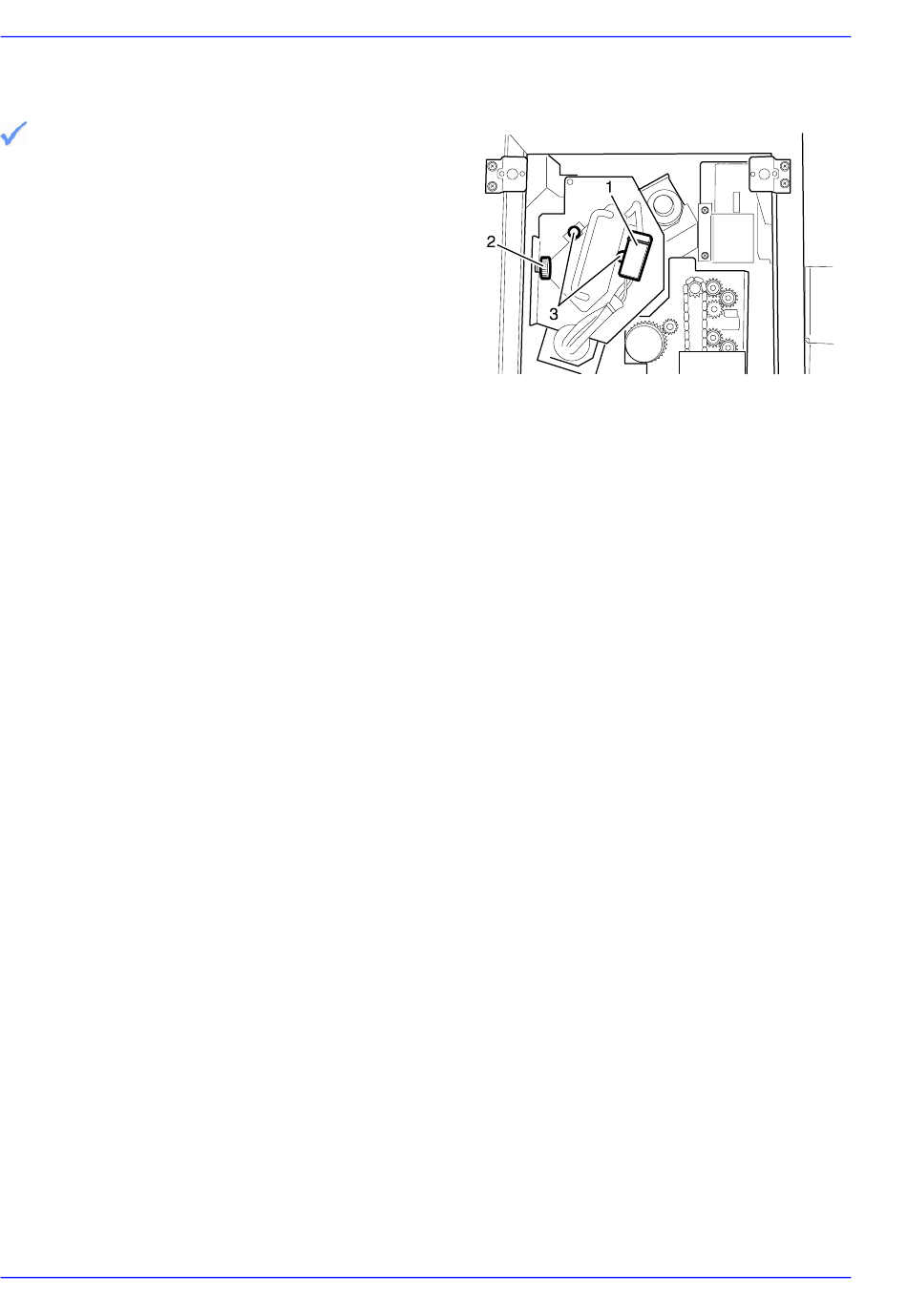

− Disconnect the cable from the IR dryer (1)
− Unscrew the knurled screw (2) of the IR dryer
and pull the latter completely out to the front
− Unscrew the 2 knurled screws (3) and pull the
insert out of the IR dryer
− Clean all deposits with a humid cloth
− Unscrew the thumb screws on the IR dryer
housing and remove the cover plates
− Clean the rubber rollers with a humid cloth
− Installation in reverse order
