Operation

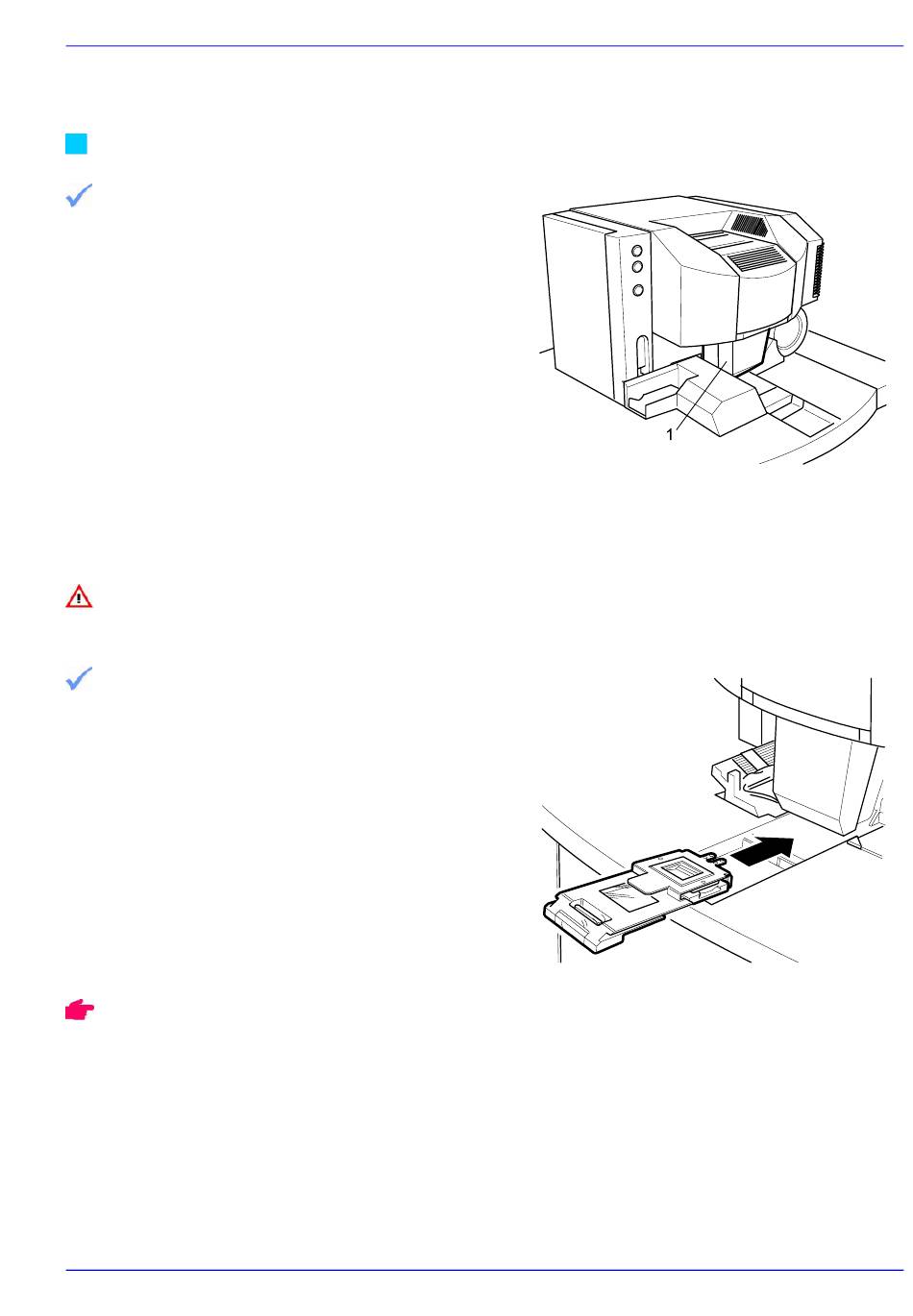

Changing the Mirror Box for Films 120

A different mirror box must be mounted so that the
120 film types can be handled.
– Use both hands to hold the mirror box (1) on
both sides and pull it out towards the front.
– Put the mirror box in the guide rails and push it
in towards the lamphouse until it locks in.

Changing the Film Carrier

Caution!
Only pull out the film carrier when no film is
inserted.
Removing the film carrier:
– Pull it to the front and
– lift it up and out
Mounting the film carrier:
– Insert it in the guide and
– push it in until it locks noticeably
When the film carrier is changed, the pixel
correction (PiCo) is performed automatically. Do
not remove the film carrier while the PiCo is
performed!
