LBC-4000 L-Band Up/Down Converter System
Installation and Startup

3.2.2 Install the Optional Rack Slide Set

CEFD Part Number
FP/SL0007
FP/SL0008
FP/SL0006

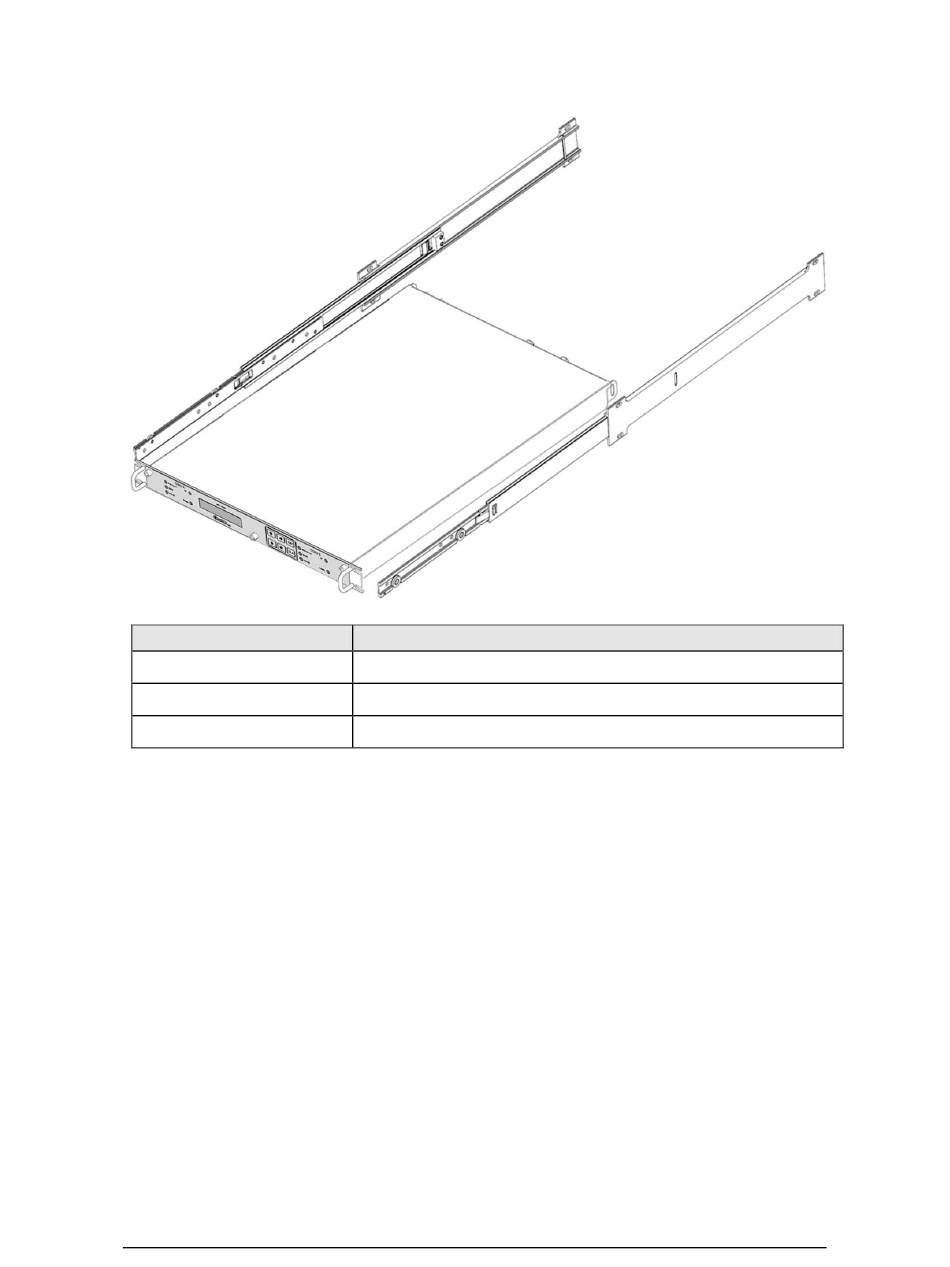

Figure 3-4. Install the Optional Rack Slide Set

If the converter is to be mounted on slides, install the provided bearingless rack
slide set into the rack cabinet, and onto the sides of the LBC-4000. Use the
hardware provided with the slide set that is determined to be appropriate for
installation.
Do these steps to install the slide set (Figure 3-4):
1. Use the provided hardware to install one slide onto each side of the unit
chassis.
2. Use the provided hardware to install the slide rail components into each
interior side of the equipment rack cabinet.
Description
Bearingless Rack Slide Set – 22"
Bearingless Rack Slide Set – 24"
Bearingless Rack Slide Set – 26"
3–7
