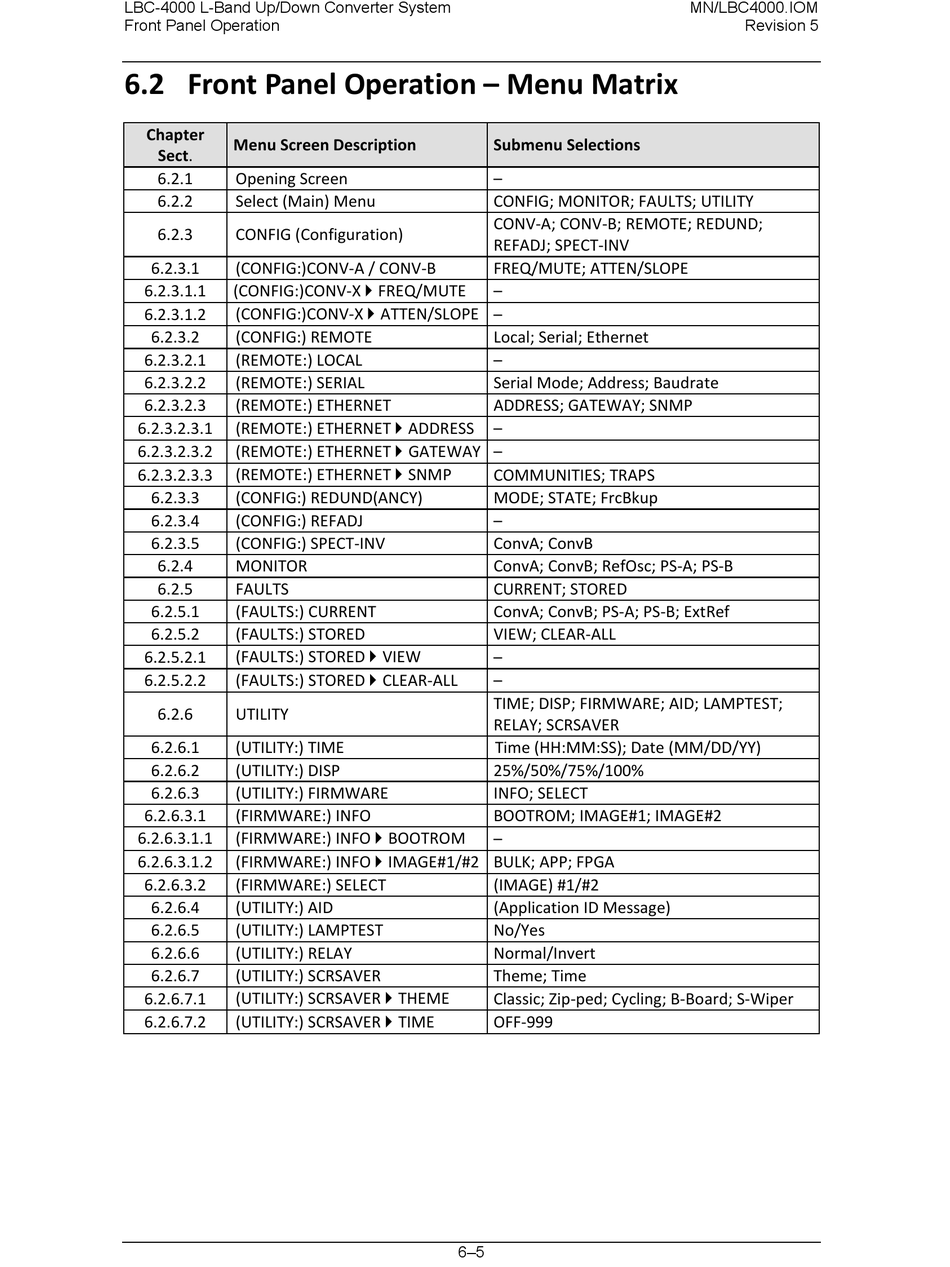

6.2 Front Panel Operation – Menu Matrix
Chapter
Menu Screen Description
Sect.
6.2.1 Opening Screen
6.2.2 Select (Main) Menu
6.2.3 CONFIG (Configuration)
6.2.3.1 (CONFIG:)CONV-A / CONV-B
6.2.3.1.1 (CONFIG:)CONV-X ¹ FREQ/MUTE
6.2.3.1.2 (CONFIG:)CONV-X ¹ ATTEN/SLOPE –
6.2.3.2 (CONFIG:) REMOTE
6.2.3.2.1 (REMOTE:) LOCAL
6.2.3.2.2 (REMOTE:) SERIAL
6.2.3.2.3 (REMOTE:) ETHERNET
(REMOTE:) ETHERNET ¹ ADDRESS
6.2.3.2.3.1
6.2.3.2.3.2 (REMOTE:) ETHERNET ¹ GATEWAY –
6.2.3.2.3.3 (REMOTE:) ETHERNET ¹ SNMP
6.2.3.3 (CONFIG:) REDUND(ANCY)
6.2.3.4 (CONFIG:) REFADJ
6.2.3.5 (CONFIG:) SPECT-INV
6.2.4 MONITOR
6.2.5 FAULTS
6.2.5.1 (FAULTS:) CURRENT
6.2.5.2 (FAULTS:) STORED
6.2.5.2.1 (FAULTS:) STORED ¹ VIEW
6.2.5.2.2 (FAULTS:) STORED ¹ CLEAR-ALL
6.2.6 UTILITY
6.2.6.1 (UTILITY:) TIME
6.2.6.2 (UTILITY:) DISP
6.2.6.3 (UTILITY:) FIRMWARE
6.2.6.3.1 (FIRMWARE:) INFO
6.2.6.3.1.1 (FIRMWARE:) INFO ¹ BOOTROM
(FIRMWARE:) INFO ¹ IMAGE#1/#2 BULK; APP; FPGA
6.2.6.3.1.2
6.2.6.3.2 (FIRMWARE:) SELECT
6.2.6.4 (UTILITY:) AID
6.2.6.5 (UTILITY:) LAMPTEST
6.2.6.6 (UTILITY:) RELAY
6.2.6.7 (UTILITY:) SCRSAVER
6.2.6.7.1 (UTILITY:) SCRSAVER ¹ THEME
6.2.6.7.2 (UTILITY:) SCRSAVER ¹ TIME
Submenu Selections
–
CONFIG; MONITOR; FAULTS; UTILITY
CONV-A; CONV-B; REMOTE; REDUND;
REFADJ; SPECT-INV
FREQ/MUTE; ATTEN/SLOPE
–
Local; Serial; Ethernet
–
Serial Mode; Address; Baudrate
ADDRESS; GATEWAY; SNMP
–
COMMUNITIES; TRAPS
MODE; STATE; FrcBkup
–
ConvA; ConvB
ConvA; ConvB; RefOsc; PS-A; PS-B
CURRENT; STORED
ConvA; ConvB; PS-A; PS-B; ExtRef
VIEW; CLEAR-ALL
–
–
TIME; DISP; FIRMWARE; AID; LAMPTEST;
RELAY; SCRSAVER
Time (HH:MM:SS); Date (MM/DD/YY)
25%/50%/75%/100%
INFO; SELECT
BOOTROM; IMAGE#1; IMAGE#2
–
(IMAGE) #1/#2
(Application ID Message)
No/Yes
Normal/Invert
Theme; Time
Classic; Zip-ped; Cycling; B-Board; S-Wiper
OFF-999
6–5
