LBC-4000 L-Band Up/Down Converter System
Front Panel Operation
Edit the display brightness. Use the [][] arrow keys to select a brightness
value of 25%, 50%, 75%, or 100%. Press [ENT] when the brightness is suitable.

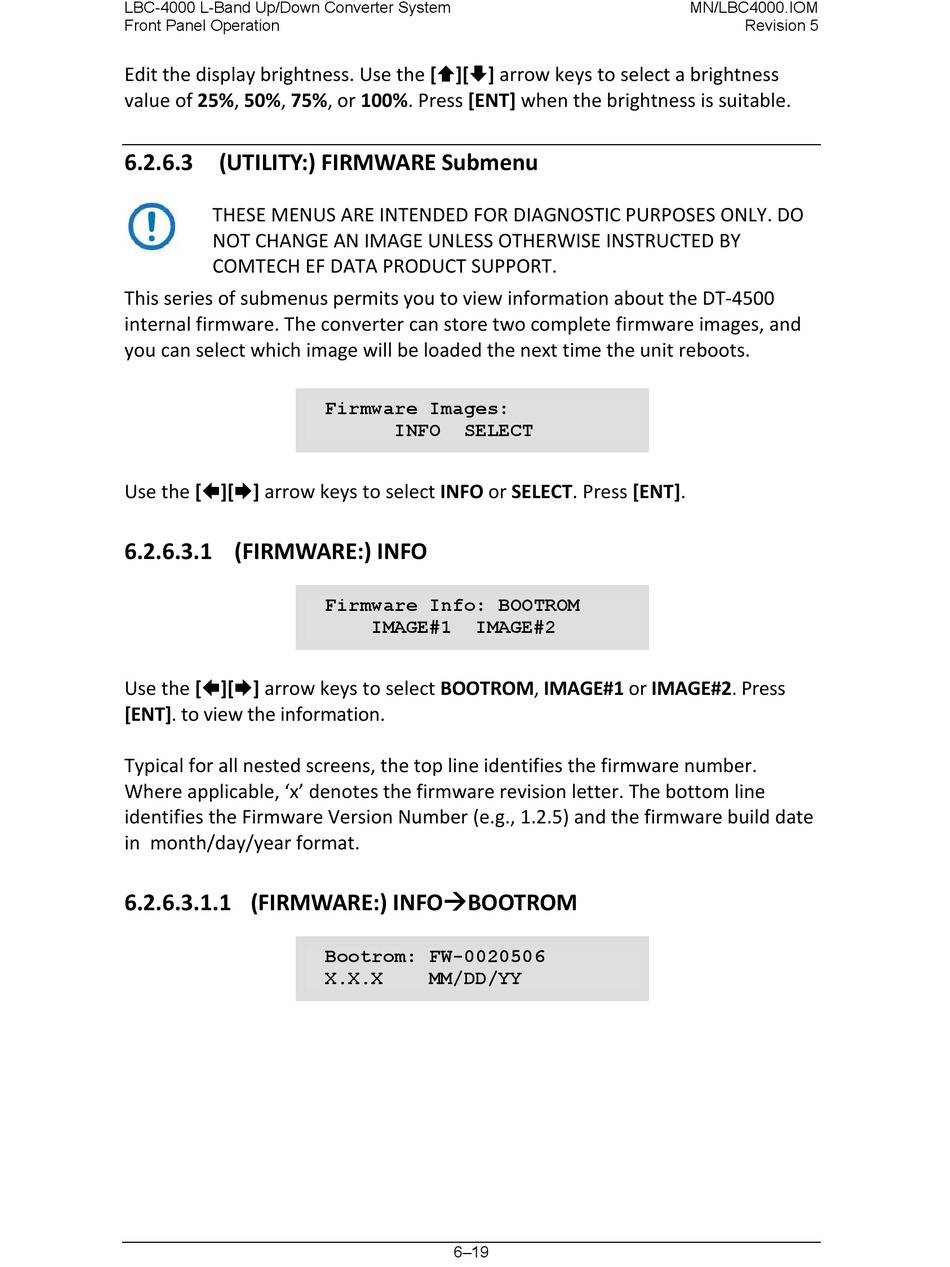

6.2.6.3 (UTILITY:) FIRMWARE Submenu
THESE MENUS ARE INTENDED FOR DIAGNOSTIC PURPOSES ONLY. DO
NOT CHANGE AN IMAGE UNLESS OTHERWISE INSTRUCTED BY
COMTECH EF DATA PRODUCT SUPPORT.
This series of submenus permits you to view information about the DT-4500
internal firmware. The converter can store two complete firmware images, and
you can select which image will be loaded the next time the unit reboots.
Use the [][] arrow keys to select INFO or SELECT. Press [ENT].
6.2.6.3.1 (FIRMWARE:) INFO
Use the [][] arrow keys to select BOOTROM, IMAGE#1 or IMAGE#2. Press
[ENT]. to view the information.
Typical for all nested screens, the top line identifies the firmware number.
Where applicable, 'x' denotes the firmware revision letter. The bottom line
identifies the Firmware Version Number (e.g., 1.2.5) and the firmware build date
in month/day/year format.
6.2.6.3.1.1 (FIRMWARE:) INFOBOOTROM
Firmware Images:
INFO
SELECT
Firmware Info: BOOTROM
IMAGE#1
IMAGE#2
Bootrom: FW-0020506
X.X.X
MM/DD/YY
6–19
MN/LBC4000.IOM
Revision 5
