7.5.3.5 Config | Serial

Use this page to configure LBC-4000 operating parameters over the EIA-485/232
serial interface.

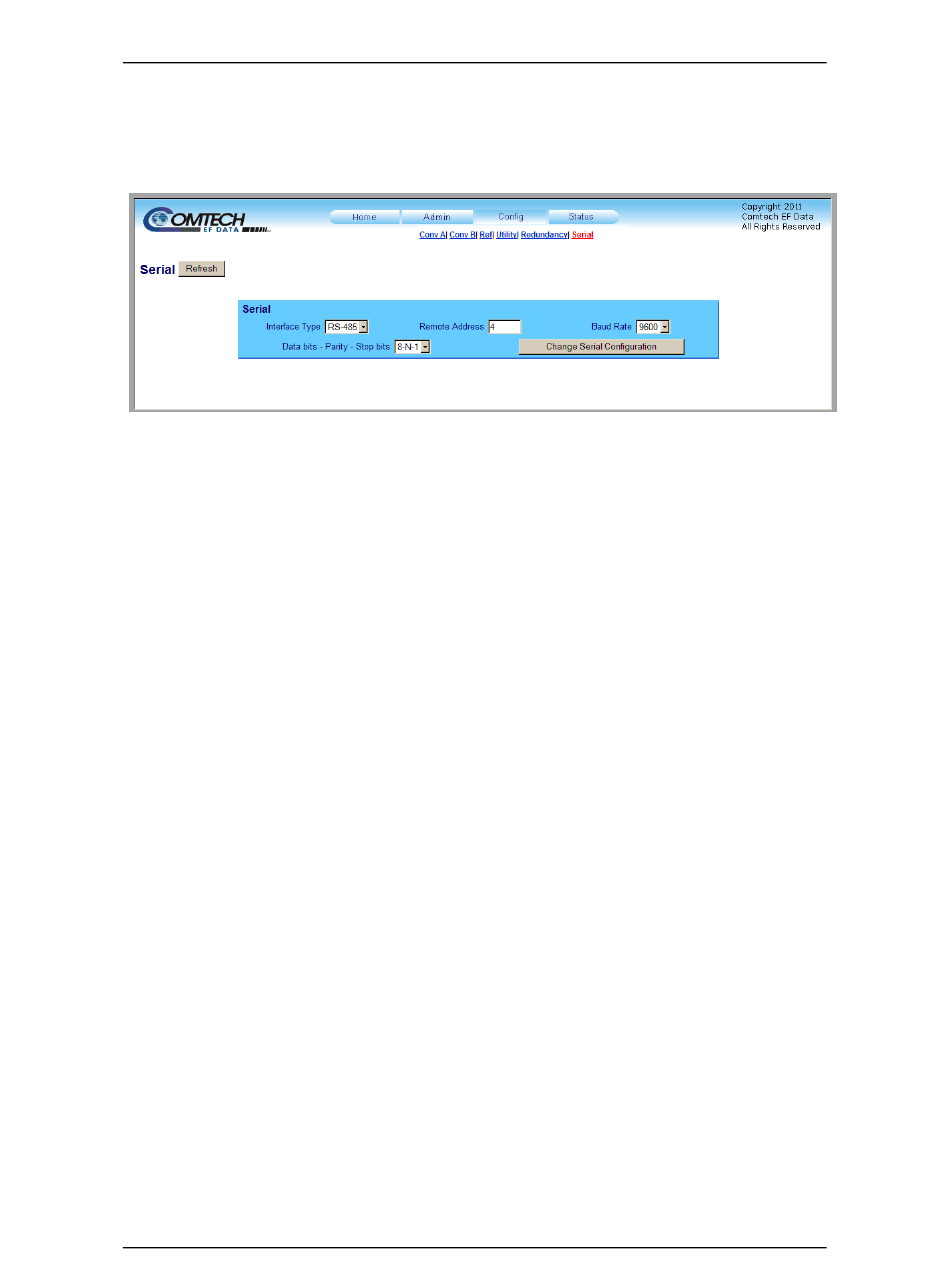

Figure 7-15. Config | Serial page
Serial
Use the drop-down menu to select the operating serial mode as RS-485 or
RS-232.
Remote Address
Enter a valid remote control address from 0001 to 9999.
Baud Rate
Use the drop-down menu to select the operating baud rate as 1200, 2400, 4800,
9600, 19200, or 38400 baud.
Data bits – Parity – Stop Bits
Use the drop-down menu to select the asynchronous character format as 8-N-1
(8 data bits, no parity, 1 stop bit); 7-O-2 (7 data bits, odd parity, 2 stop bits); or
7-E-2 (7 data bits, even parity, 2 stop bits).
Click [Change Serial Configuration].
