Configure Hyperterminal For Telnet Remote Control Operation; Figure 7-3. Configure Hyperterminal - Comtech EF Data MN/LBC4000.IOM Installation And Operation Manual

LBC-4000 L-Band Up/Down Converter System
Ethernet Interface Operation
7.3.1.1 Configure HyperTerminal for Telnet Remote Control
Operation
See Figure 7-3. Do these steps:
1. Make sure to define the Connect To Telnet connection properties
correctly (File  Properties) (Figure 7-3, left):
a. Enter the unit's Traffic/Management IP Address as the "Host
address" (e.g., 192.168.1.1).
b. Enter TCP Port 23 as the "Port number".
c. Set "Connect using" to TCP/IP (Winsock) instead of COM1 or COM2.
d. Click [OK] to save your settings.
2. For ASCII Setup (File  Properties  Settings  ASCII Setup) (Figure 7-3,
right):
a. Check the "Send line ends with line feeds" option in the 'ASCII
Sending' section.
b. Check the "Append line feeds to incoming line ends" option in the
'ASCII Receiving' section.
c. Click [OK] to save your settings.

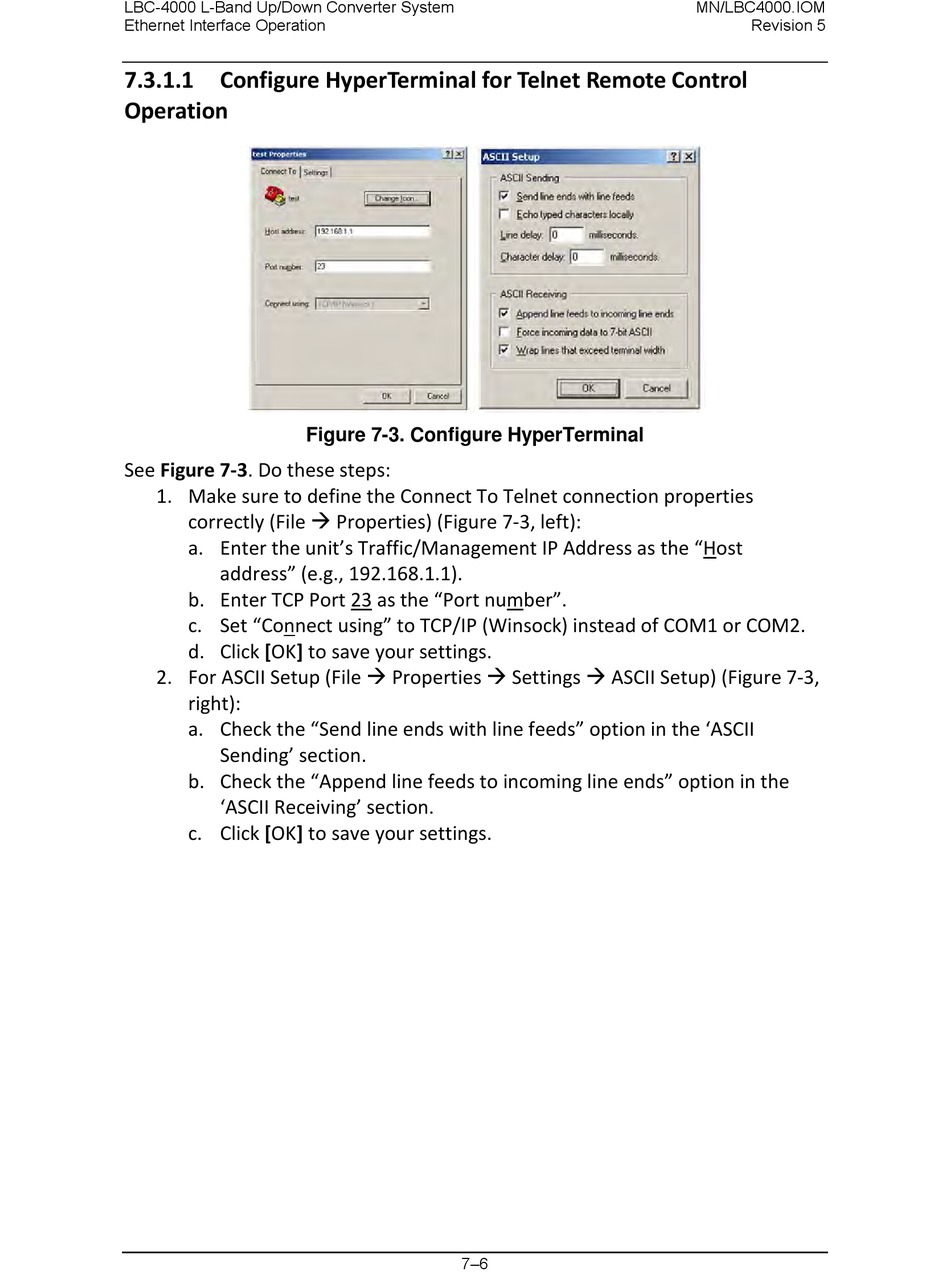

Figure 7-3. Configure HyperTerminal
