LBC-4000 L-Band Up/Down Converter System
Front Panel Operation
change its value. Repeat for all digits until you define the desired
frequency.
Select the Tx/Rx mute status: Use the [][] arrow keys on the bottom
line to select the parameter. Use the [][] arrow keys to select ON or
OFF.
The displays reads 'Tx' when the installed module is an Up
Converter, or 'Rx' when the installed module is a Down
Converter.
Press [ENT].

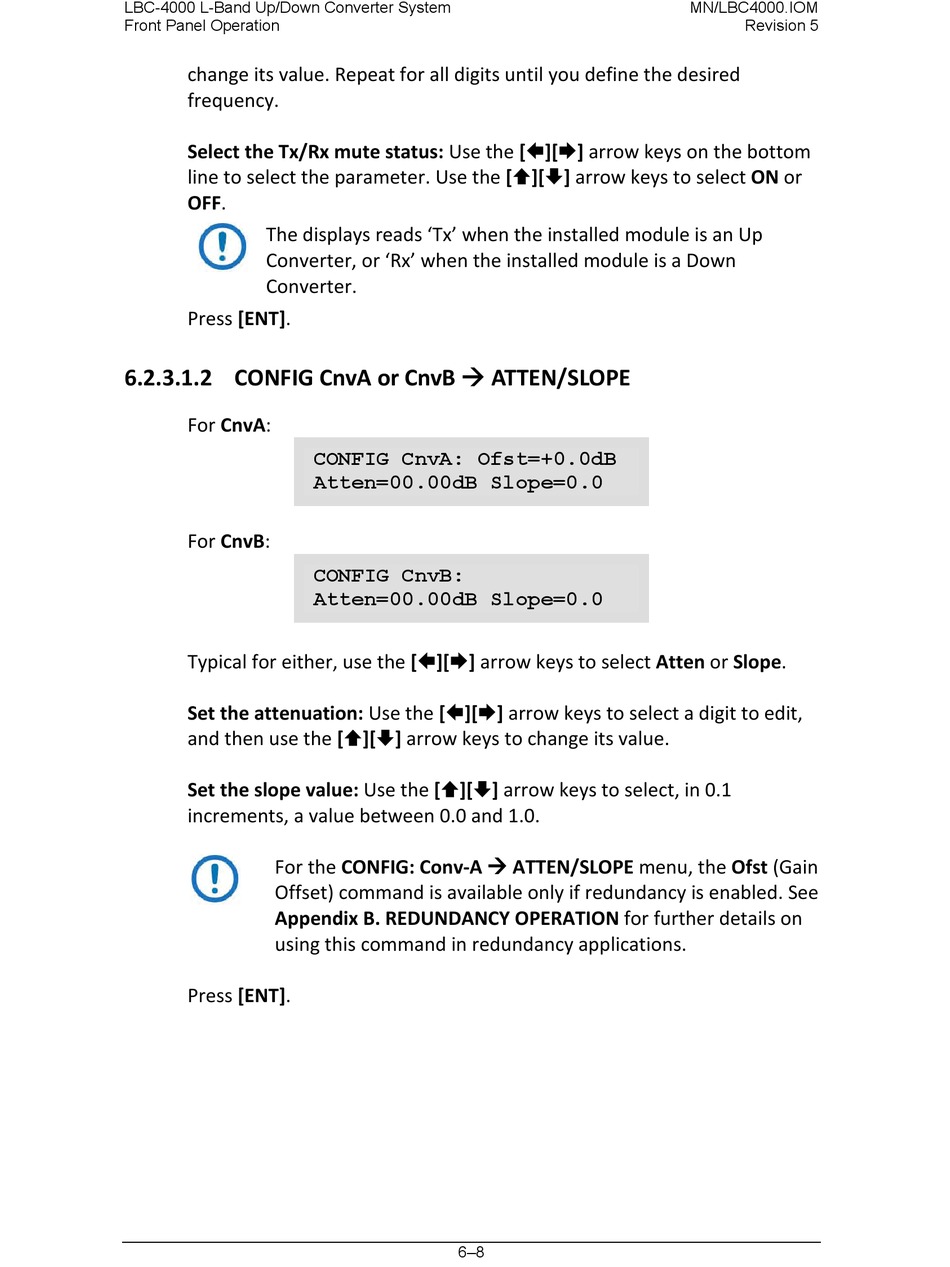

6.2.3.1.2 CONFIG CnvA or CnvB  ATTEN/SLOPE
For CnvA:
For CnvB:
Typical for either, use the [][] arrow keys to select Atten or Slope.
Set the attenuation: Use the [][] arrow keys to select a digit to edit,
and then use the [][] arrow keys to change its value.
Set the slope value: Use the [][] arrow keys to select, in 0.1
increments, a value between 0.0 and 1.0.
For the CONFIG: Conv-A  ATTEN/SLOPE menu, the Ofst (Gain
Offset) command is available only if redundancy is enabled. See
Appendix B. REDUNDANCY OPERATION for further details on
using this command in redundancy applications.
Press [ENT].
CONFIG CnvA: Ofst=+0.0dB
Atten=00.00dB Slope=0.0
CONFIG CnvB:
Atten=00.00dB Slope=0.0
6–8
MN/LBC4000.IOM
Revision 5
