LBC-4000 L-Band Up/Down Converter System
Ethernet Interface Operation
7.5.2 Admin (Administration) Pages
The 'Admin' pages are available only to users who have logged in using
the Administrator Name and Password.
Click the Admin tab, and then select the Access or SNMP hyperlink to continue.

7.5.2.1 Admin | Access

The Administrator must use this page as the means to set up user names,
passwords, the E-mail server, and the host IP addresses as needed to facilitate
communication with the HTTP Interface.
Network Maintenance
IP Gateway, IP Address/Range – Enter the desired IP Gateway Address and
Management IP Address/ Range in these text boxes.

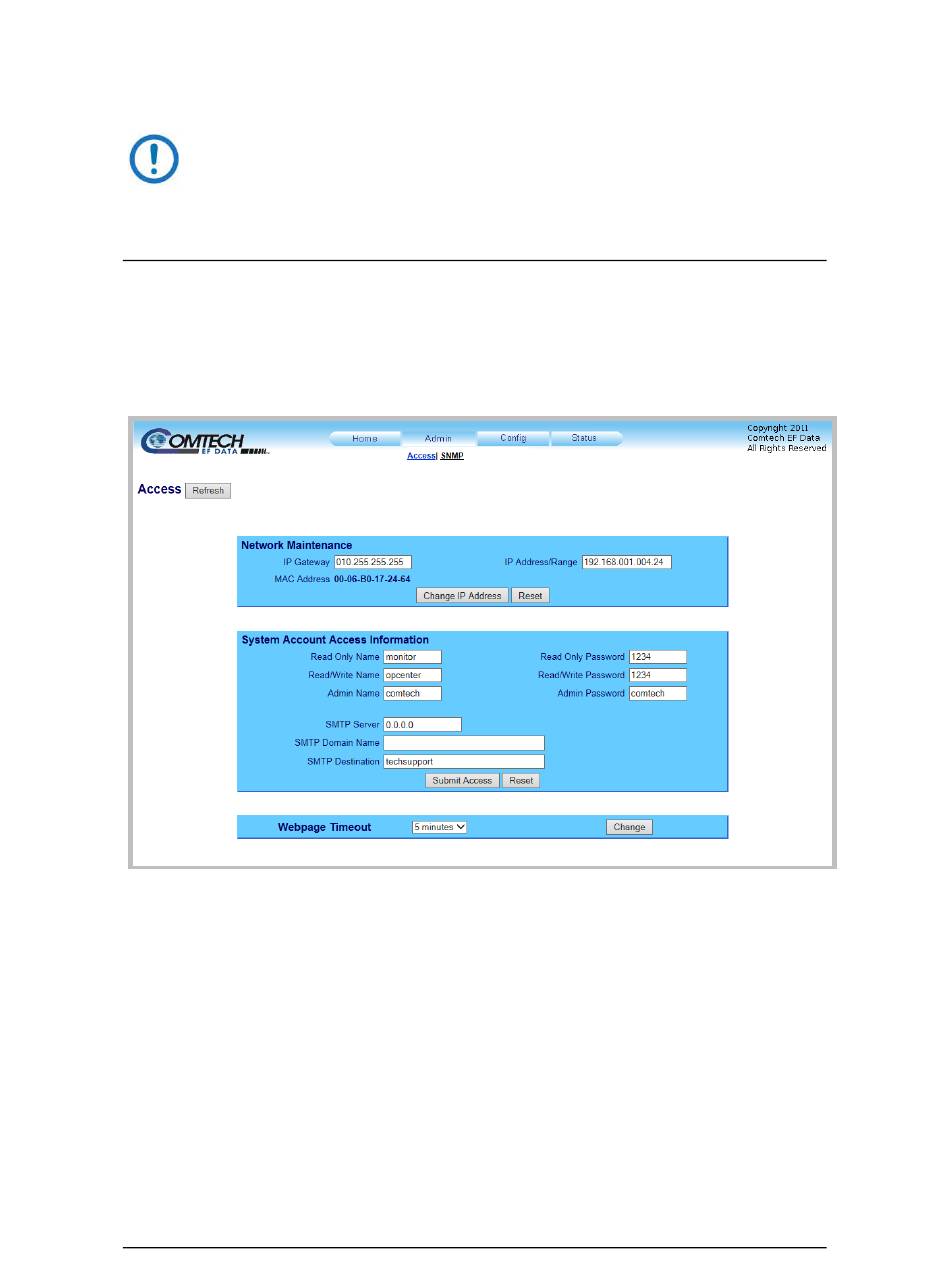

Figure 7-9. 'Admin | Access' Page

7–14
MN/LBC4000.IOM
Revision 5
