LBC-4000 L-Band Up/Down Converter System
Front Panel Operation

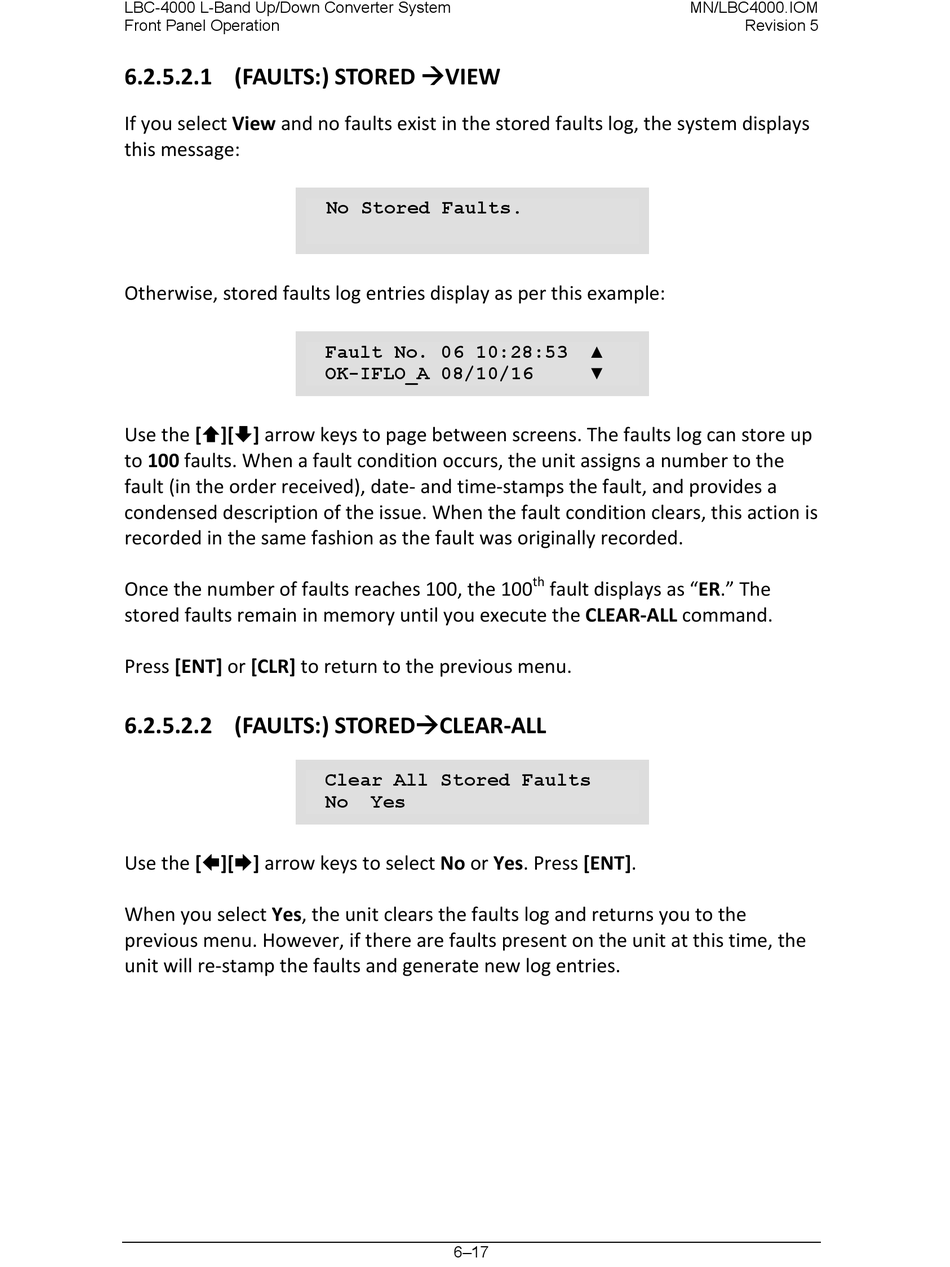

6.2.5.2.1 (FAULTS:) STORED VIEW
If you select View and no faults exist in the stored faults log, the system displays
this message:
Otherwise, stored faults log entries display as per this example:
Use the [][] arrow keys to page between screens. The faults log can store up
to 100 faults. When a fault condition occurs, the unit assigns a number to the
fault (in the order received), date- and time-stamps the fault, and provides a
condensed description of the issue. When the fault condition clears, this action is
recorded in the same fashion as the fault was originally recorded.
Once the number of faults reaches 100, the 100
stored faults remain in memory until you execute the CLEAR-ALL command.
Press [ENT] or [CLR] to return to the previous menu.
6.2.5.2.2 (FAULTS:) STOREDCLEAR-ALL
Use the [][] arrow keys to select No or Yes. Press [ENT].
When you select Yes, the unit clears the faults log and returns you to the
previous menu. However, if there are faults present on the unit at this time, the
unit will re-stamp the faults and generate new log entries.
No Stored Faults.
Fault No. 06 10:28:53
OK-IFLO_A 08/10/16
Clear All Stored Faults
No Yes
6–17
MN/LBC4000.IOM
▲
▼
th
fault displays as "ER." The
Revision 5
