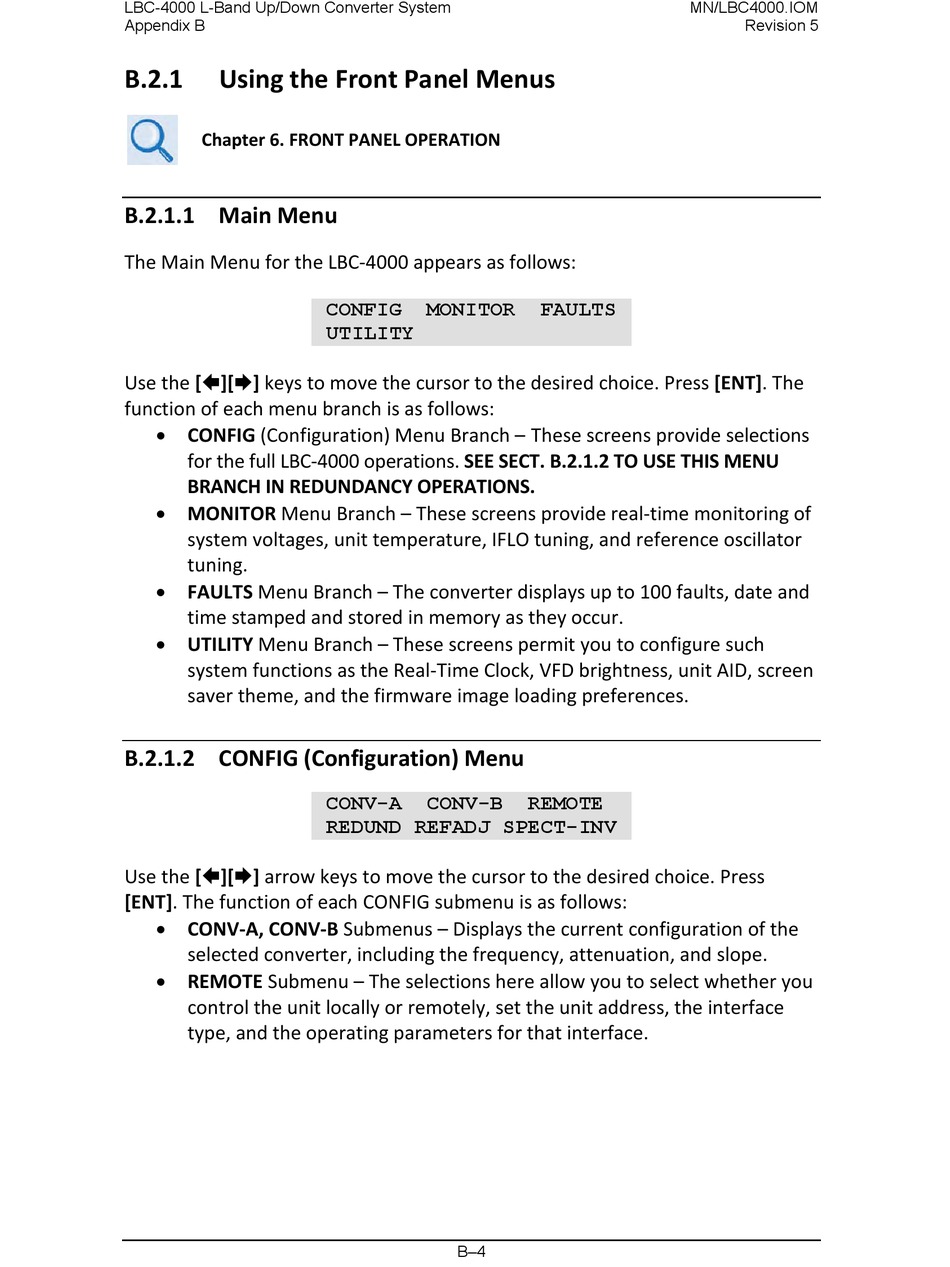

LBC-4000 L-Band Up/Down Converter System
Appendix B
B.2.1

Using the Front Panel Menus

Chapter 6. FRONT PANEL OPERATION
B.2.1.1 Main Menu
The Main Menu for the LBC-4000 appears as follows:
Use the [][] keys to move the cursor to the desired choice. Press [ENT]. The
function of each menu branch is as follows:
• CONFIG (Configuration) Menu Branch – These screens provide selections
for the full LBC-4000 operations. SEE SECT. B.2.1.2 TO USE THIS MENU
BRANCH IN REDUNDANCY OPERATIONS.
• MONITOR Menu Branch – These screens provide real-time monitoring of
system voltages, unit temperature, IFLO tuning, and reference oscillator
tuning.
• FAULTS Menu Branch – The converter displays up to 100 faults, date and
time stamped and stored in memory as they occur.
• UTILITY Menu Branch – These screens permit you to configure such
system functions as the Real-Time Clock, VFD brightness, unit AID, screen
saver theme, and the firmware image loading preferences.
B.2.1.2 CONFIG (Configuration) Menu
Use the [][] arrow keys to move the cursor to the desired choice. Press
[ENT]. The function of each CONFIG submenu is as follows:
• CONV-A, CONV-B Submenus – Displays the current configuration of the
selected converter, including the frequency, attenuation, and slope.
• REMOTE Submenu – The selections here allow you to select whether you
control the unit locally or remotely, set the unit address, the interface
type, and the operating parameters for that interface.
CONFIG MONITOR
UTILITY
CONV-A CONV-B
REDUND REFADJ SPECT-INV
B–4
MN/LBC4000.IOM
FAULTS
REMOTE
Revision 5
