3.5. DNR800 Mini Repeater
External Connections

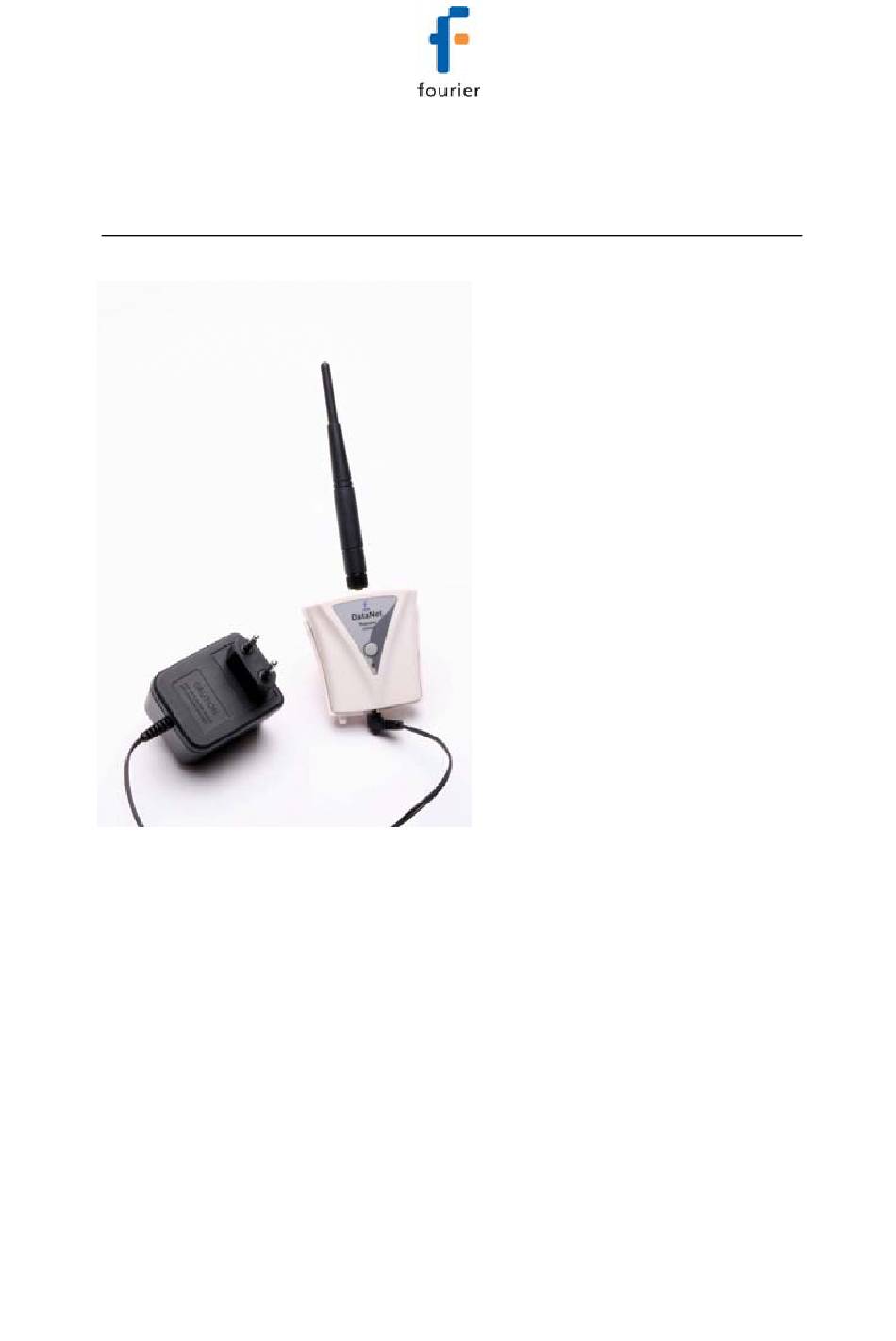

Figure 25: Mini Repeater external connections

12 V Power Socket
To connect unit to external power supply. Plug in an AC/DC 9-12 V
adaptor to power the unit. There is no battery supply so when
disconnected from the adapter the unit will shutdown. The adaptor
should meet the required specifications. Refer to Appendix A:
DataNet Specifications.
46
