Fourier DataNet User Manual page 145

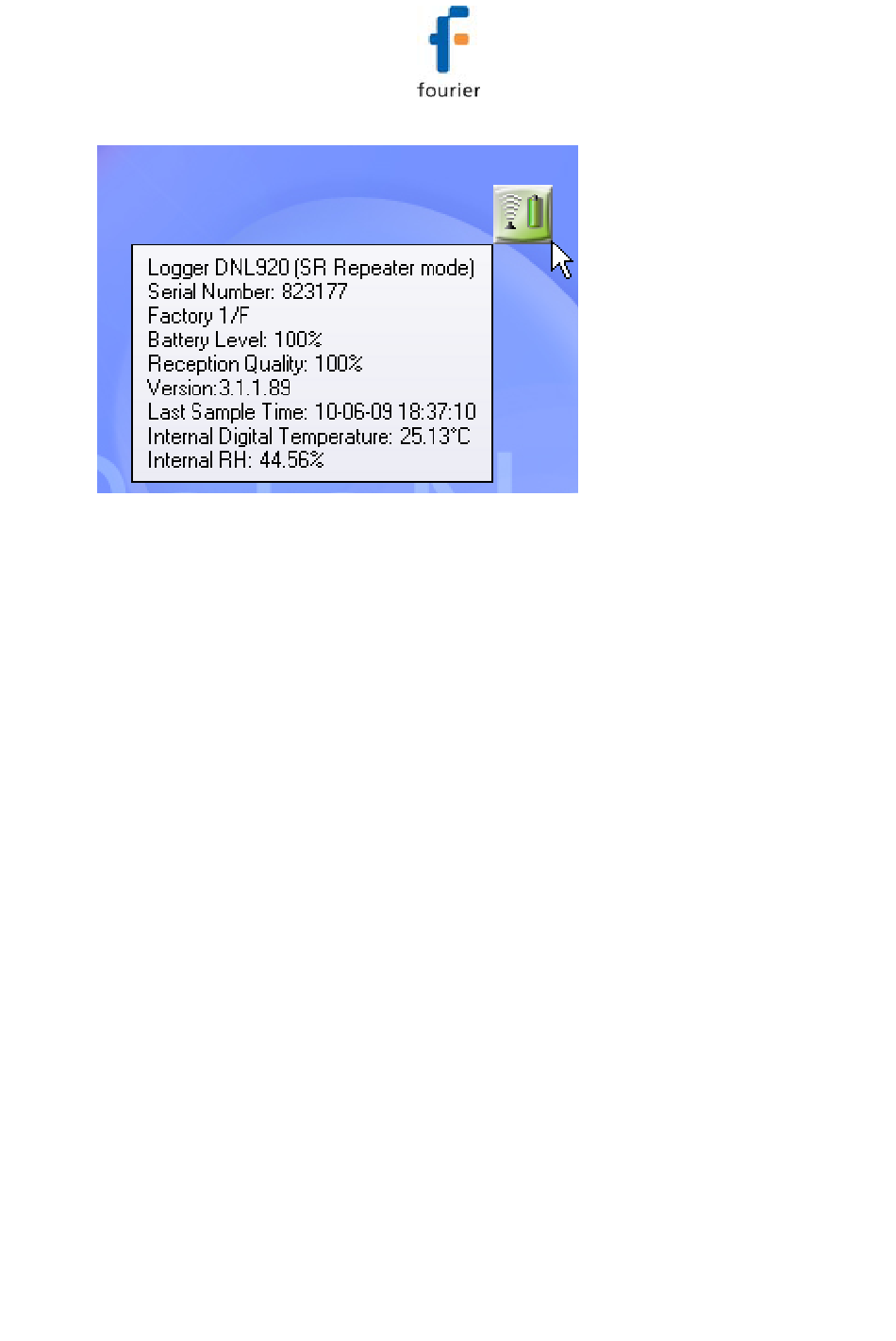

In online mode, the logger also displays:
•
Device mode – Logger or Short Range Repeater
•
The power status (% Battery left or Connected to AC)
•
Reception quality: Strength of RF signal between logger
and Receiver
•
Version number: Firmware version of the logger
•
Last sample time: If logger is running, time stamp of last
recorded sample.
•
Real-time Sensor values: All sensor values are displayed,
including sensor name and alarm status.
Command Queue Progress
The tooltip is updated with specific commands being
performed by the logger. For example, if the logger is
downloading data to the software you can see the progress in
the tooltip. In addition, the Logger icon has a blue progress
indicator so you can monitor the progress without using the
tooltip.
135
