3.2. Data Logger External
Connections
3.2.1.

DNL910 and DNL920

External connections of the DNL910, DNL920 and PA models
are exactly the same.
Four sensor Four sensor
inputs inputs

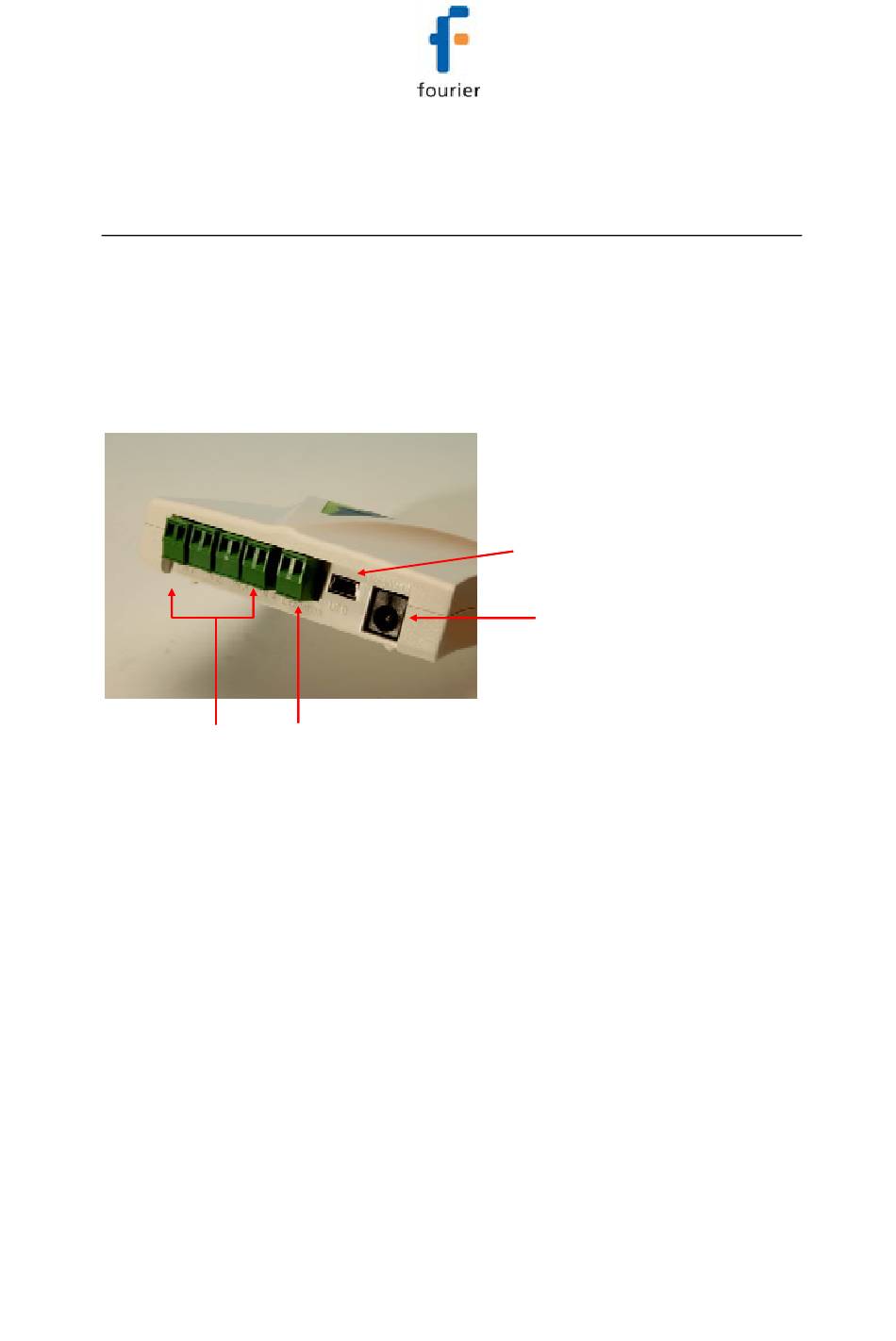

Figure 20: DNL920 data logger external connections
Mini USB Port
To enable data download direct to PC via USB port.
12 V Power Socket
To connect logger to external power supply (negative center).
Sensor Inputs
Pluggable screw terminal blocks marked In-1 to In-4 (from left to
right), to connect wide range of sensor types for data acquisition.
All four inputs can be used simultaneously. Sensors can be
connected in any order.
To connect a sensor to the DataNet data logger, unplug the
Excitation Excitation
41
Mini USB port Mini USB port
12 V power socket 12 V power socket
Negative Center Negative Center
