2. Select the Axis Scaling tab and select the Group plots
by units checkbox.
3. In the Axis drop-down menu select the unit by which you
wish to group the plots.
4. Uncheck the Autoscale check box and enter the custom
values in the text box.
5. Click OK.
6. To restore auto scaling select the Autoscale checkbox.

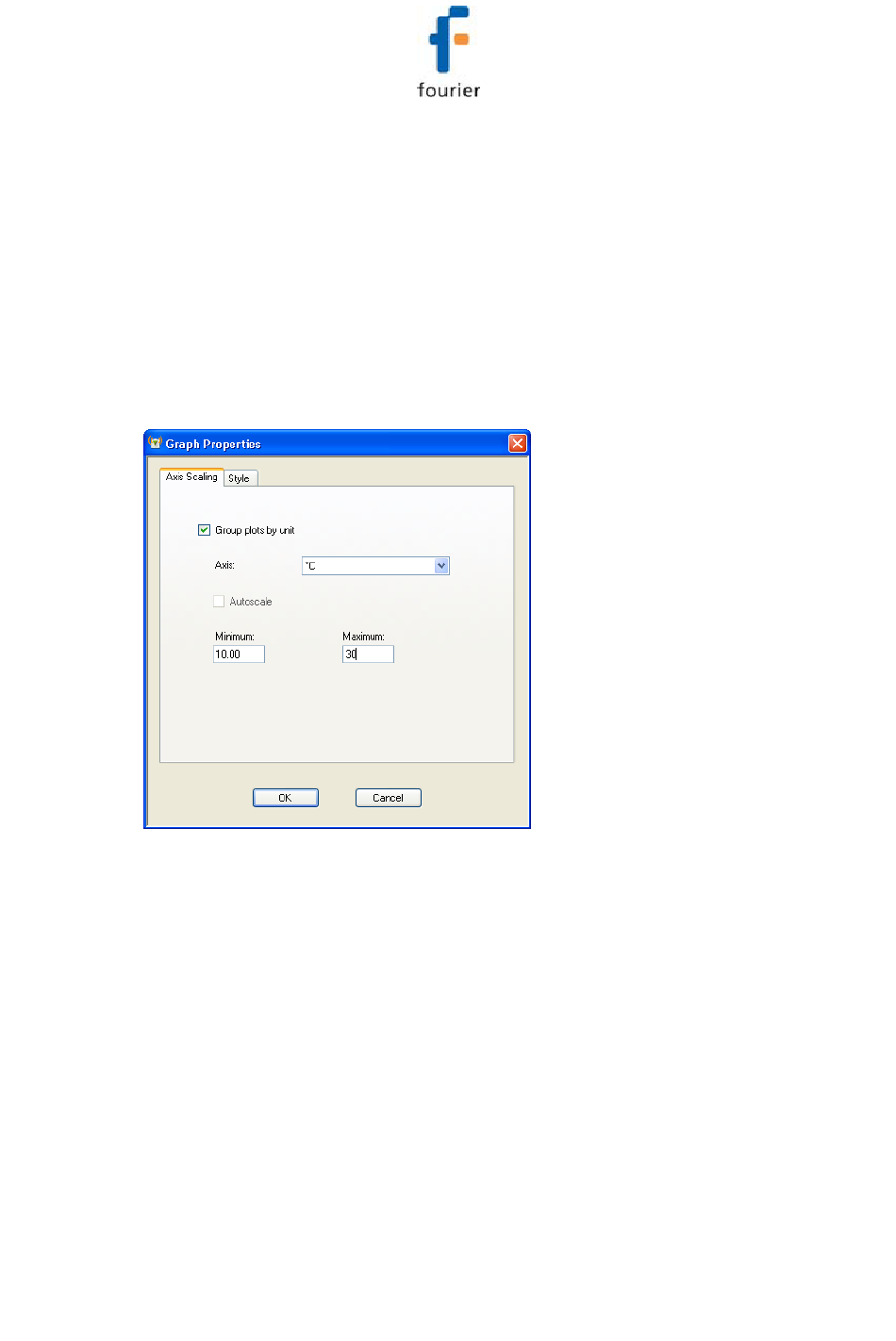

Figure 55: Grouping plots by units

4.15.2. Statistical Analysis

DataNet also provides some basis statistics regarding the
open data sets. While in History View or online Data Display
view, click the Statistics tab.
For each of the sensors in the data set, you will have the
following statistics displayed:
•
Minimum / Maximum values
•
Average value
