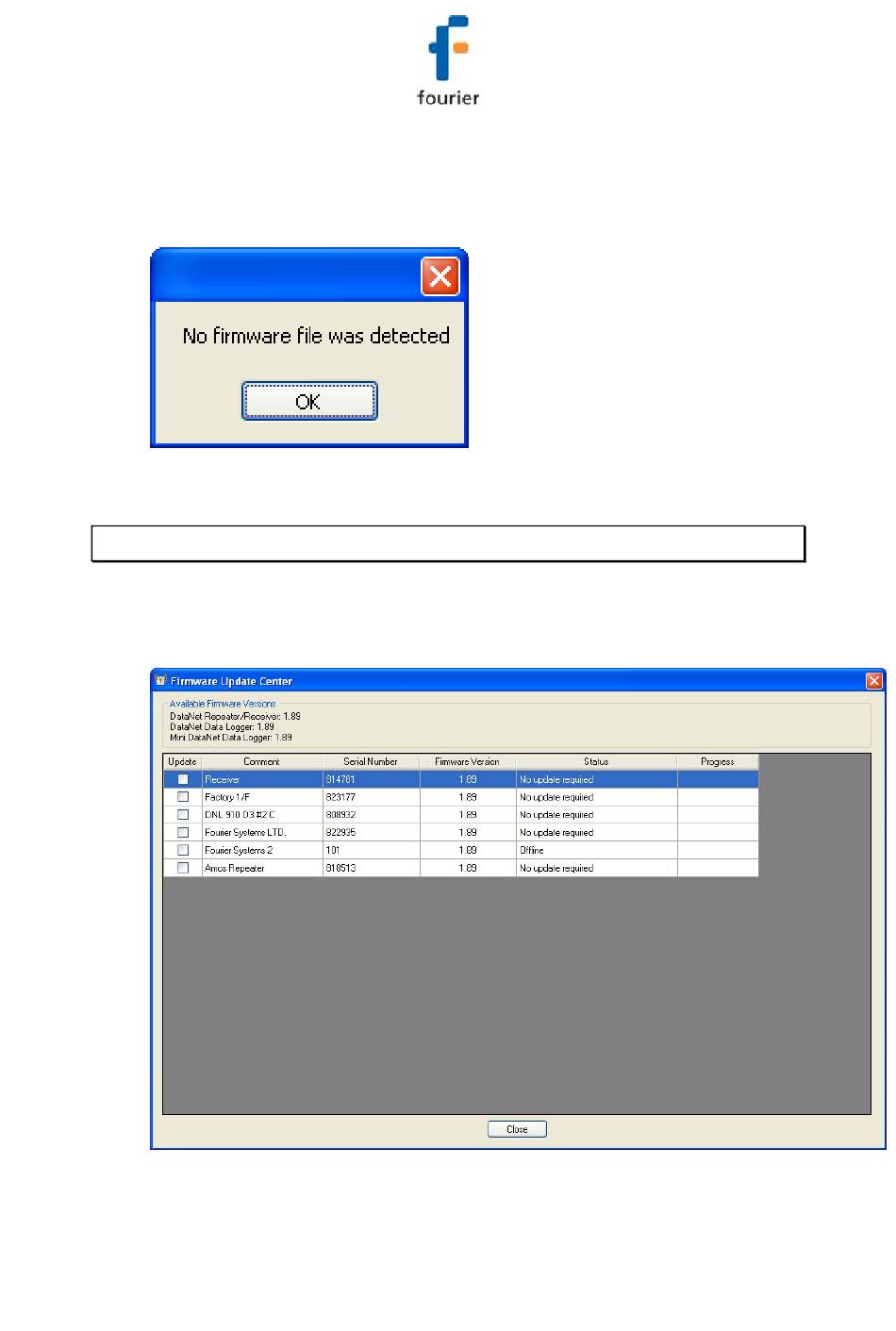

Figure 61: Firmware Update Center Dialog - Fourier DataNet User Manual

If no firmware file is detected in the DataNet directory,
then an error message is displayed and the Update
Center opens with a blank screen.
Copy the firmware file to the directory and reopen the
Update Center.
Note: The default password is 1234.
2. The Update Center dialog lists all units in the network and
displays pertinent information such as available firmware
versions, firmware update status and unit info.

Figure 61: Firmware Update Center dialog

178
