1. Click Tools > Define New Sensor and the Define New
Sensor dialog will open.

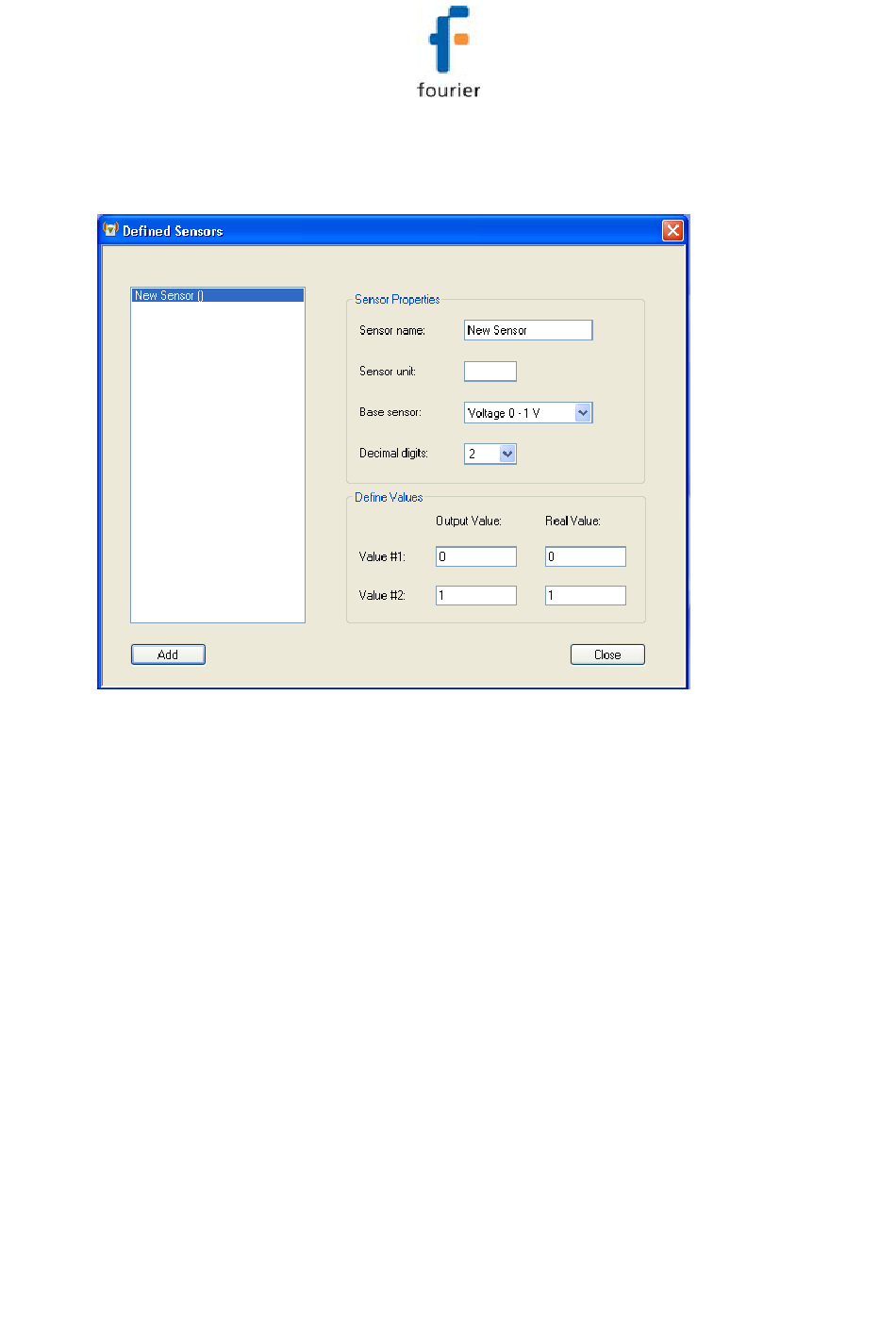

Figure 39: Define New Sensor dialog

2. Click Add to enable the fields.
3. Select the Base sensor from the drop-down menu
(depending on whether your sensor's output is 0 to 1
V, 0 to 50 mV, 4 to 20mA, or measuring pulses).
4. Enter the sensor name and sensor unit.
5. Enter two calibration values (two real values and the
corresponding output values of the sensor).
6. Click Close.
To use the custom defined sensor:
1. Enter the Setup dialog for the data logger you want to
configure.
