Fourier DataNet User Manual page 190

Unit Information
Additional information provided in the Update Center includes:
•
The unit comment/name
•
Serial number
•
Current firmware version
•
Unit status
•
Update progress
1. If the unit status is Requires an update, then select the
checkbox in the Update column adjacent to the unit you
wish to update. You may select as many units as you like
to update, but only two units can be updated at a time.
2. As soon as you select the Update checkbox, the
command will be sent to the unit to begin uploading the
firmware. The firmware is first uploaded to the unit's
memory and then installed. Even if the update is stalled
halfway due to the unit shutting down, for example, the
unit will not lose its current firmware and so will continue
to be operable.

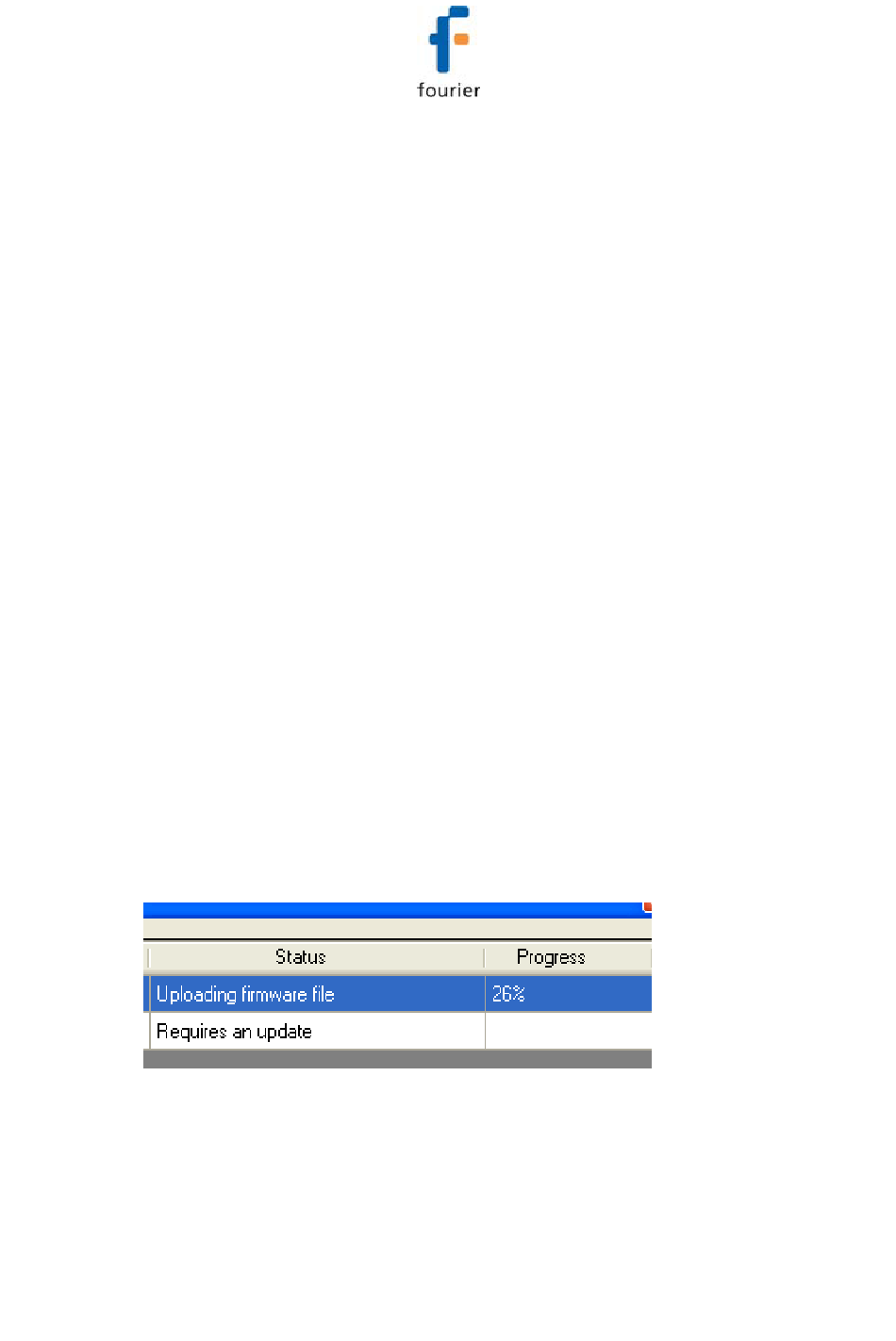

3. When the upload begins the Update Center status will
change to Uploading firmware file and the unit display
will read Loading firmware. The progress will also be
displayed on both hardware and software.
4. When the upload is complete the unit will reset itself and
the Update Center will display the status No update
required. The firmware version will be updated as well.
180
