Carry out NCK reset
Introduction
On the HMI the "Commissioning" menu contains:

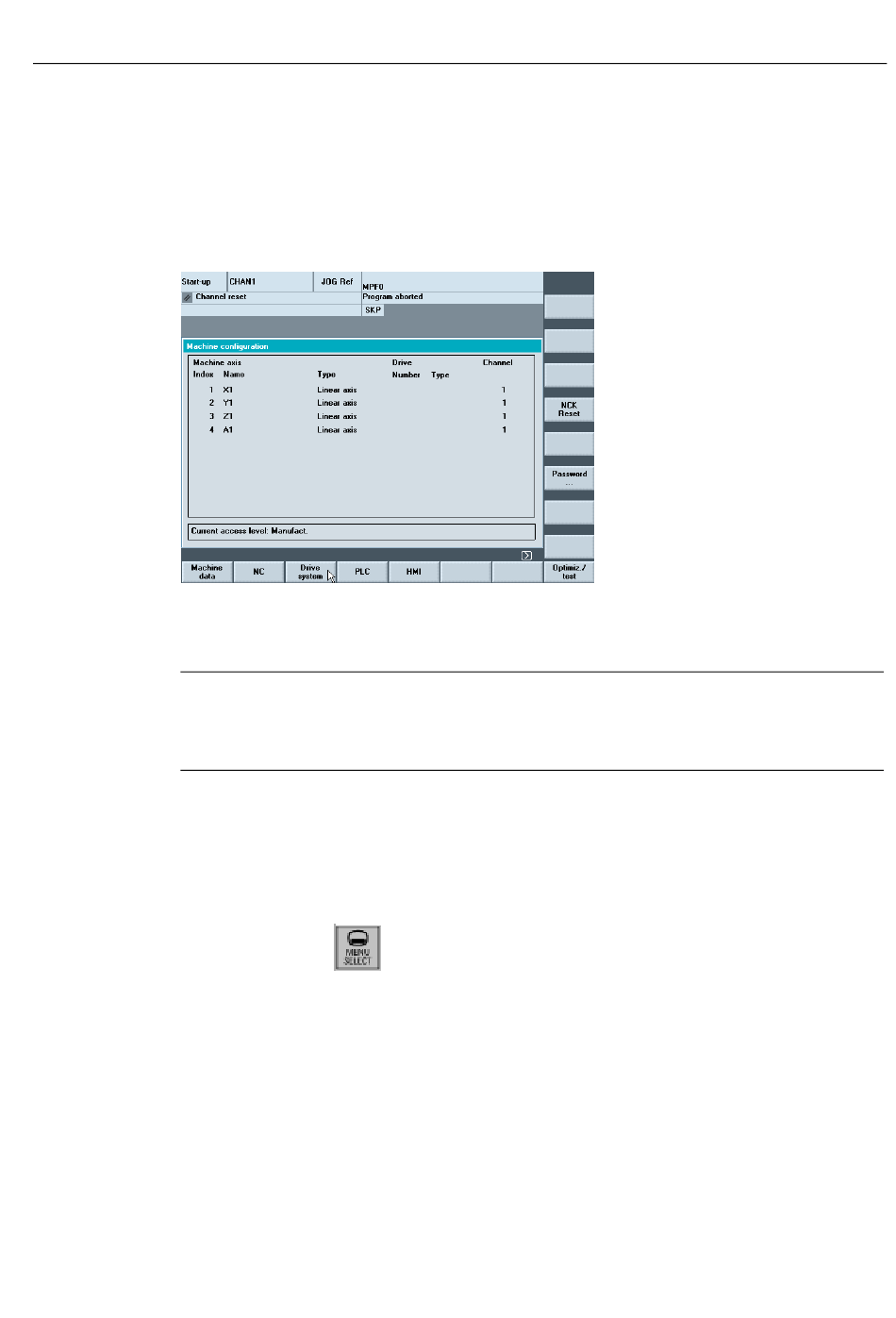

Figure 7-16
Note
If you have an Etrhernet machine control panel with Ethernet hand wheel, a "7" for
"Ethernet" must be entered for the hand wheel in the general machine data MD11350[0]
HAND WHEEL_SEGMENT.
The STOP condition of the PLC which is taken by the PLC for a short time on loading is
interpreted by the NC as a PLC failure with an appropriate alarm response.
Alarm response
• Press the button
CNC Part 1 (NCK, PLC, drive)
Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
"Commissioning" menu
The system may display the following alarms on the HMI (see figure below):
and select the "Diagnostics > Alarms" menu.
