Commissioning SINAMICS drives
8.6 Commissioning using a drive wizard

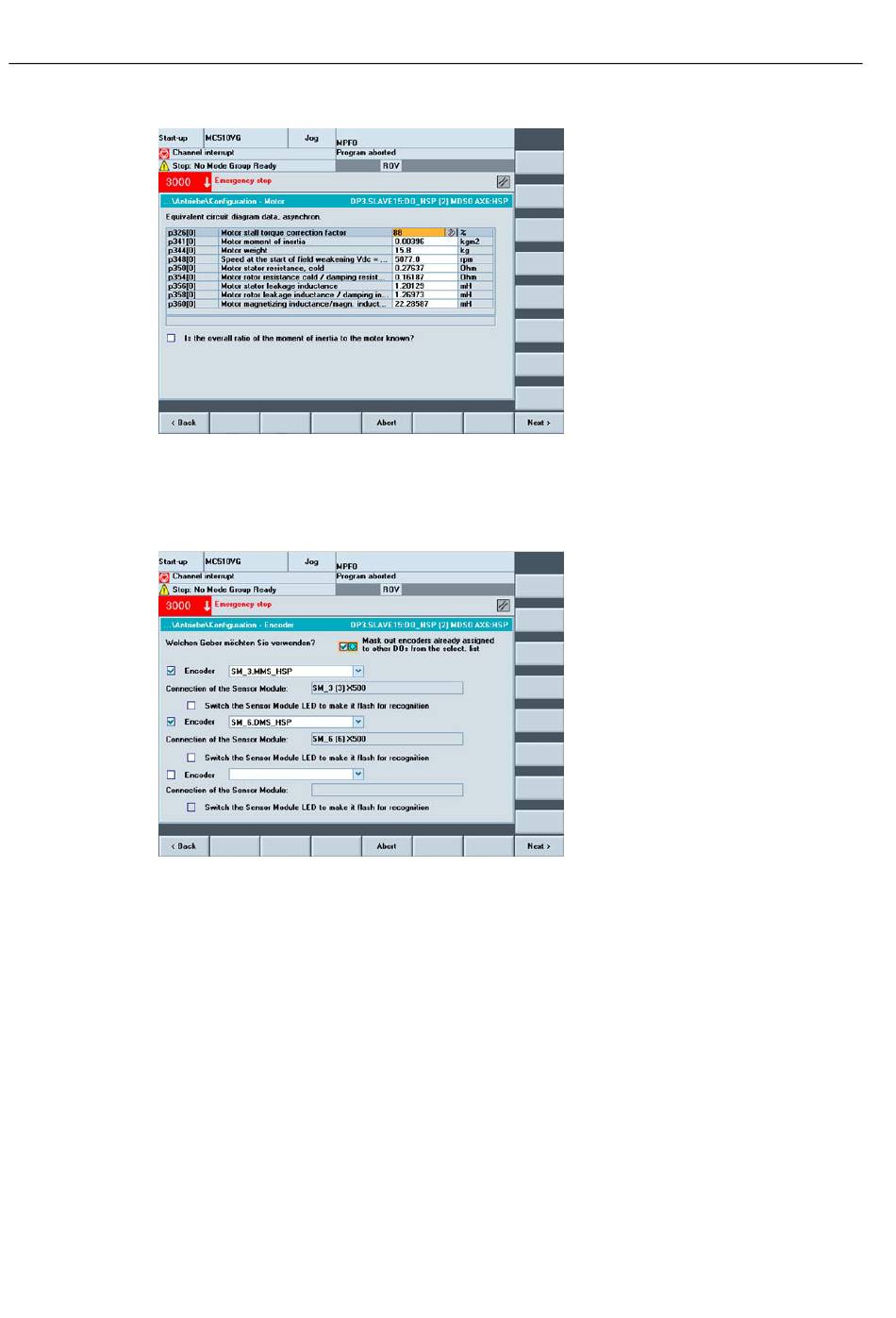

Figure 8-25
14. You can enter additional motor data.
15. Press "Next >".
Figure 8-26
16. For Sensor 1 you have the option of selecting from already assigned sensors.
17. Press "Next >".
80
Menu "Drives > Configuration" "Replacement circuit diagrams" (Next 4)
Menu "Drives > Configuration" "Sensor" (Next 5)
