4
Disassembly/Assembly > Controller System > Removing the Fan > Procedure

Removing the Fan

■ Preparation
1) Remove the Right Cover. Refer to page 4-147.
■ Procedure

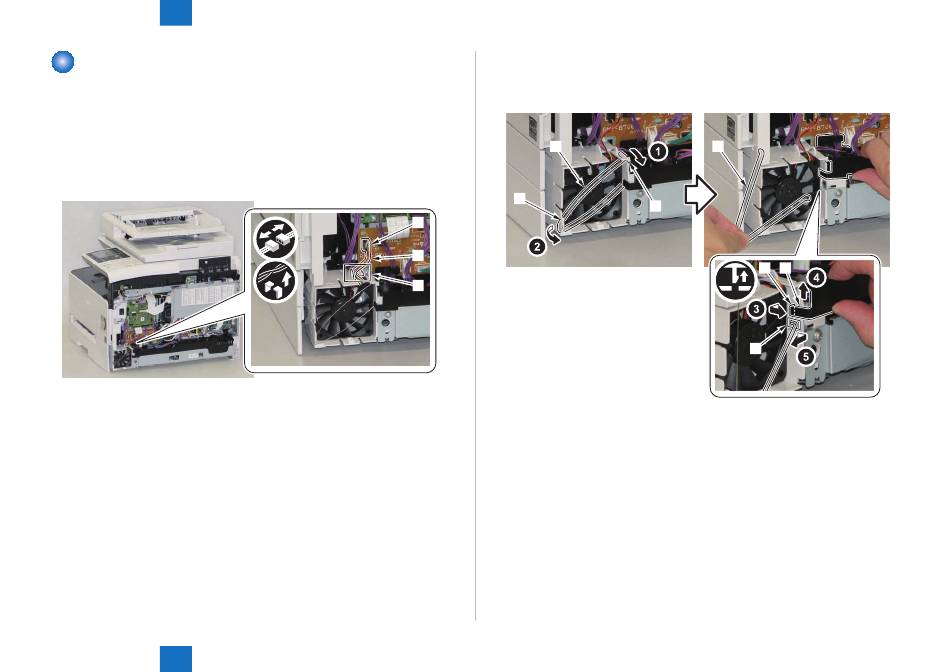

1) Free the harness [1].
• 1 Connector [2]
• Guide [A]
4
Disassembly/Assembly > Controller System > Removing the Fan > Procedure
2) Free the Fan Retainer Spring [1] from the 2 guides [A] of the Fan Duct.
3) While lifting the edge [B] of the Low Voltage Power Supply Unit Cover, free the Fan
Retainer Spring [1] from the hole [C] of the plate.
• 1 Claw [3]
[1]
[A]
[2]
[1]
[A]
F-4-480
[1]
[A]
[2]
[B]
[C]
4-211
F-4-481
4-211
