Disassembly/Assembly > Pickup Feeder System > Removing the Re-pickup Guide Unit > Procedure

Removing the Re-pickup Guide Unit

■ Preparation
1) Removing the Right Cover. Refer to page 4-20.
2) Removing the Left Cover. Refer to page 4-17.
3) Removing the Secondary Transfer Feed Unit. Refer to page 4-127.
4) Removing the Rear Upper Cover. Refer to page 4-24.
5) Removing the Rear Cover. Refer to page 4-24.
6) Removing the Rear Lower Cover. Refer to page 4-25.
7) Removing the Rear Cover Rib Unit. Refer to page 4-27.
8) Removing the Duplex Feed Unit. Refer to page 4-130.
4
Disassembly/Assembly > Pickup Feeder System > Removing the Re-pickup Guide Unit > Procedure
■ Procedure

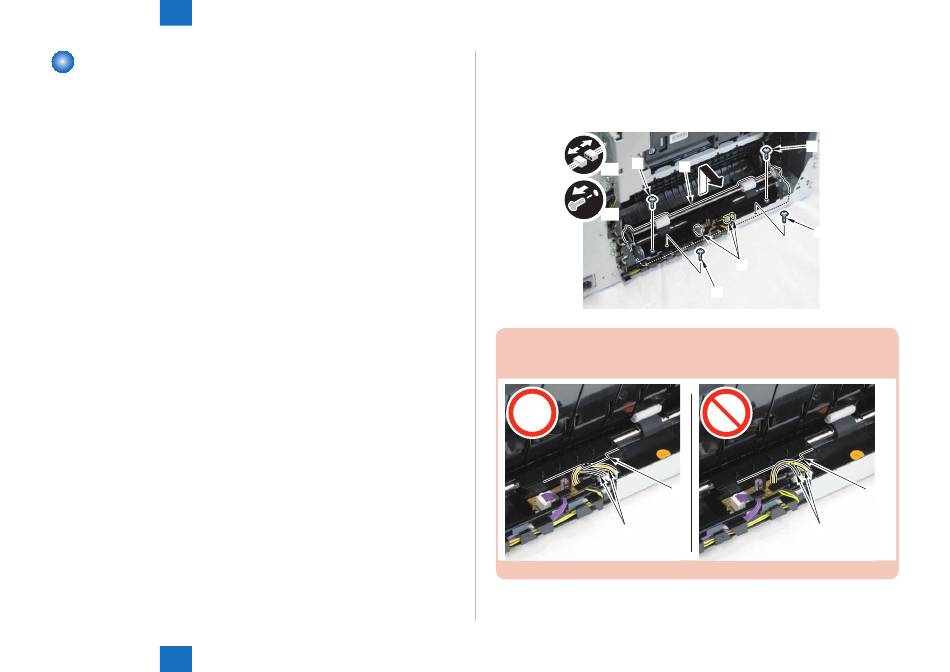

1) Remove the Re-pickup Guide Unit [1].
• 3 connectors [2]
• 4 screws [3]
[3]
x3
x4
CAUTION:
Be sure to insert the 2 harnesses [1] at the bottom of the Guide [A] when installing.
[A]
[1]
[3]
[1]
[3]
[2]
[3]
F-4-291
[1]
4-131
[A]
F-4-292
4-131
