Disassembly/Assembly > Controller System > Removing the Main Drive Unit > Procedure
[Host machine side]

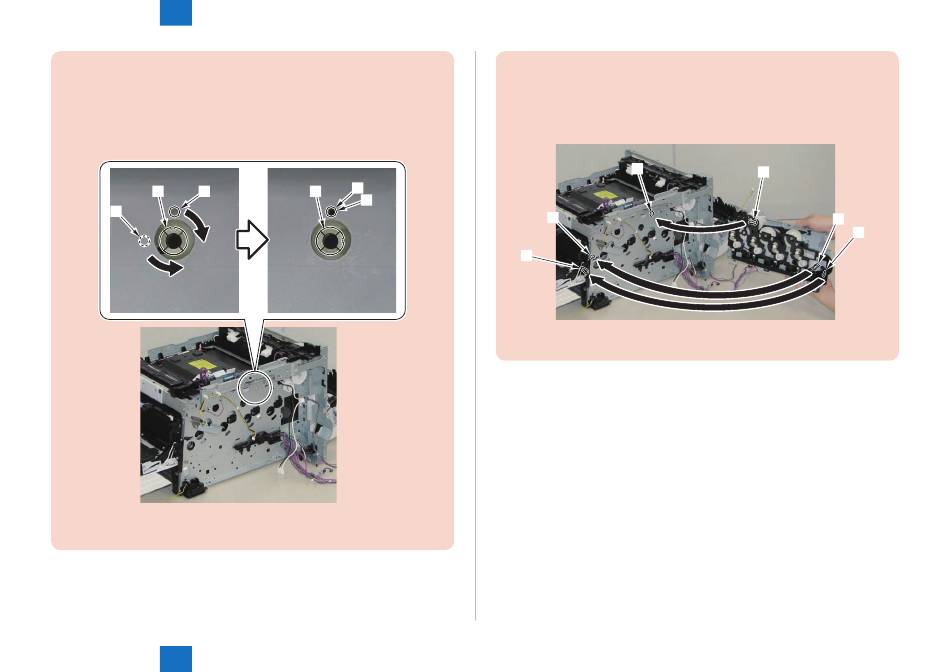

5) The direction of the joint [1] on the host machine side is as shown in the figure below
(at this time, the hole [A] of the plate and hole [B] of the joint [1] are aligned in a
straight line).
If the direction is not correct, rotate the joint [1] to the direction as shown in the figure
below.
[1] [A]
[B]
6) The Front Cover is open.
4 Disassembly/Assembly > Controller System > Removing the Main Drive Unit > Procedure
[A]
[1]
[B]
F-4-175
2.Be sure to keep the following in mind when installing.
• Fit the joint [1] of the gear of the Main Drive Unit with the joint [2] of the host
machine.
• Fit the hole [3] of the link with the shaft [4] of the host machine.
• Fit the hole [5] of the Front Door Arm with the shaft [6] of the host machine.
[2]
[4]
[6]
4-84
[1]
[3]
[5]
F-4-176
