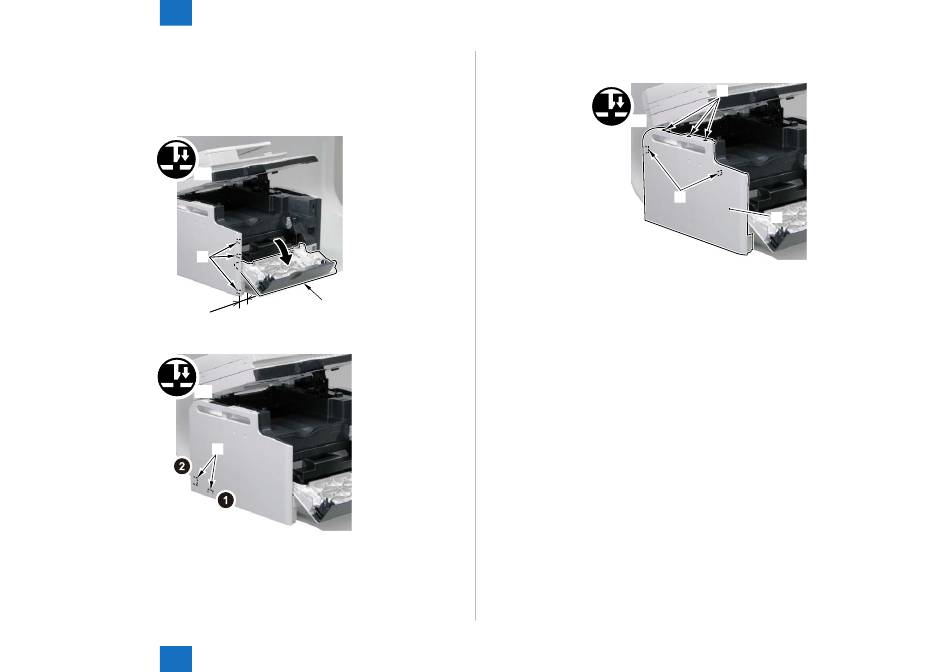

Disassembly/Assembly > External Cover, Internal Cover > Removing the Left Cover > Installing the Left Cover
■ Installing the Left Cover
1) To remove the claw at the lower side of the Left Cover, move the Host Machine for about
5cm from the base.
2) Open the Front Cover [1].
3) Install the 3 claws [2] at the front side of the Left Cover.
x3
[2]
t 5 c m
a b o u
4) Fit in the claw [1] at the lower side of the Left Cover.
x2
[1]
4
Disassembly/Assembly > External Cover, Internal Cover > Removing the Left Cover > Installing the Left Cover
[1]
F-4-312
F-4-313
5) Install the Left Cover [1].
• 5 claws [2]
x5
[2]
4-146
[2]
[1]
F-4-314
