4
Disassembly/Assembly > Document Exposure, Feed System > Removing the Reader Scanner Motor > Procedure

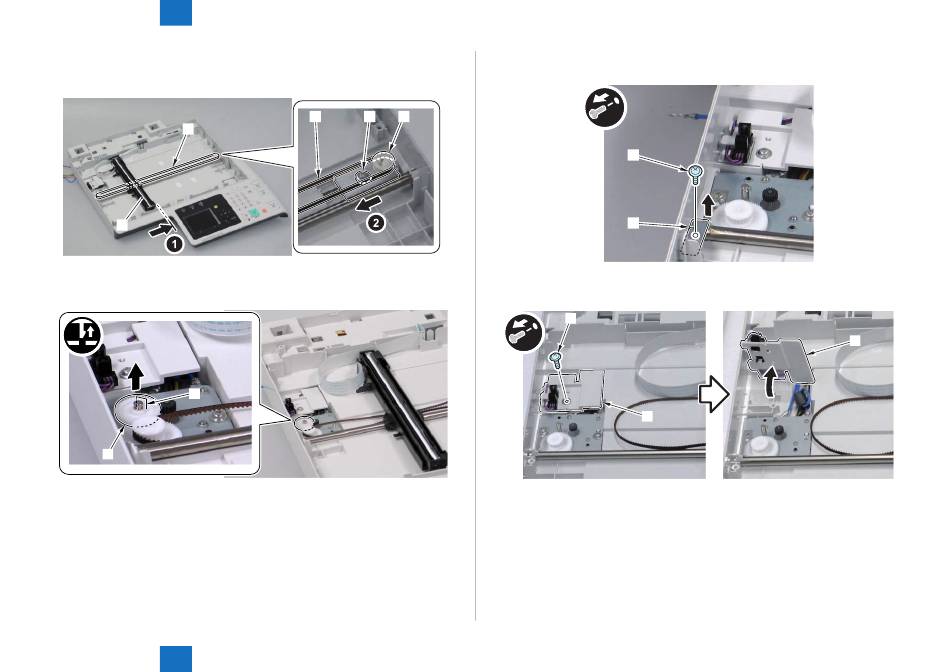

2) Pull the Drive Belt [1] to move the CIS Unit [2].
3) Loosen the screw [3] and move the Pulley Holder [4] in the direction of the arrow to remove
the Drive Belt [1].
[1]
[2]
4) Remove the gear [1].
• 1 claw [2]
[2]
[1]
4
Disassembly/Assembly > Document Exposure, Feed System > Removing the Reader Scanner Motor > Procedure
[1]
[3]
[4]
F-4-104
F-4-105
5) Remove the Shaft Retaining Plate [1].
• 1 screw [2]
[2]
[1]
6) Move the Sensor Mount [1].
• 1 screw [2]
[2]
[1]
4-53
F-4-106
[1]
F-4-107
4-53
