4
Disassembly/Assembly > Controller System > Removing the Fixing Power Supply Unit > Procedure

Removing the Fixing Power Supply Unit

■ Preparation
1) Remove the Right Cover. Refer to page 4-147.
2) Remove the Left Cover. Refer to page 4-144.
3) Remove the Rear Upper Cover. Refer to page 4-153.
4) Remove the Rear Lower Cover. Refer to page 4-154.
■ Procedure

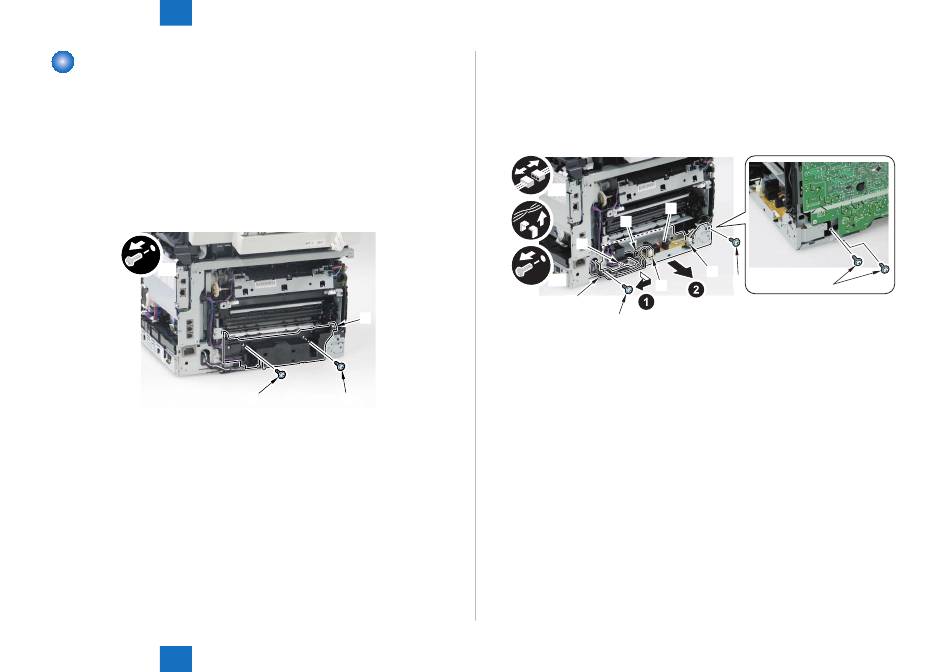

1) Remove the Fixing Power Supply Cover [1].
• 2 screws [2]
x2
4
Disassembly/Assembly > Controller System > Removing the Fixing Power Supply Unit > Procedure
[1]
[2]
[2]
F-4-438
2) Remove the Harness Guide [1].
• 1 Connector [2]
• 1 Hook [3]
3) Remove the Fixing Power Supply Unit [4].
• 2 Connectors [5]
• 4 Screws [6]
x2
[4]
[5]
[3]
x4
[2]
[1]
[6]
4-195
[5]
[6]
[6]
F-4-439
4-195
