Configuration; Figure 2-1. Optional Rear-Mounting Support Bracket Installation - Comtech EF Data CDM-625 Installation And Operation Manual

CDM-625 Advanced Satellite Modem
Installation
#10 Shoulder Screw
Support Bracket
#10 Bracket Bolt

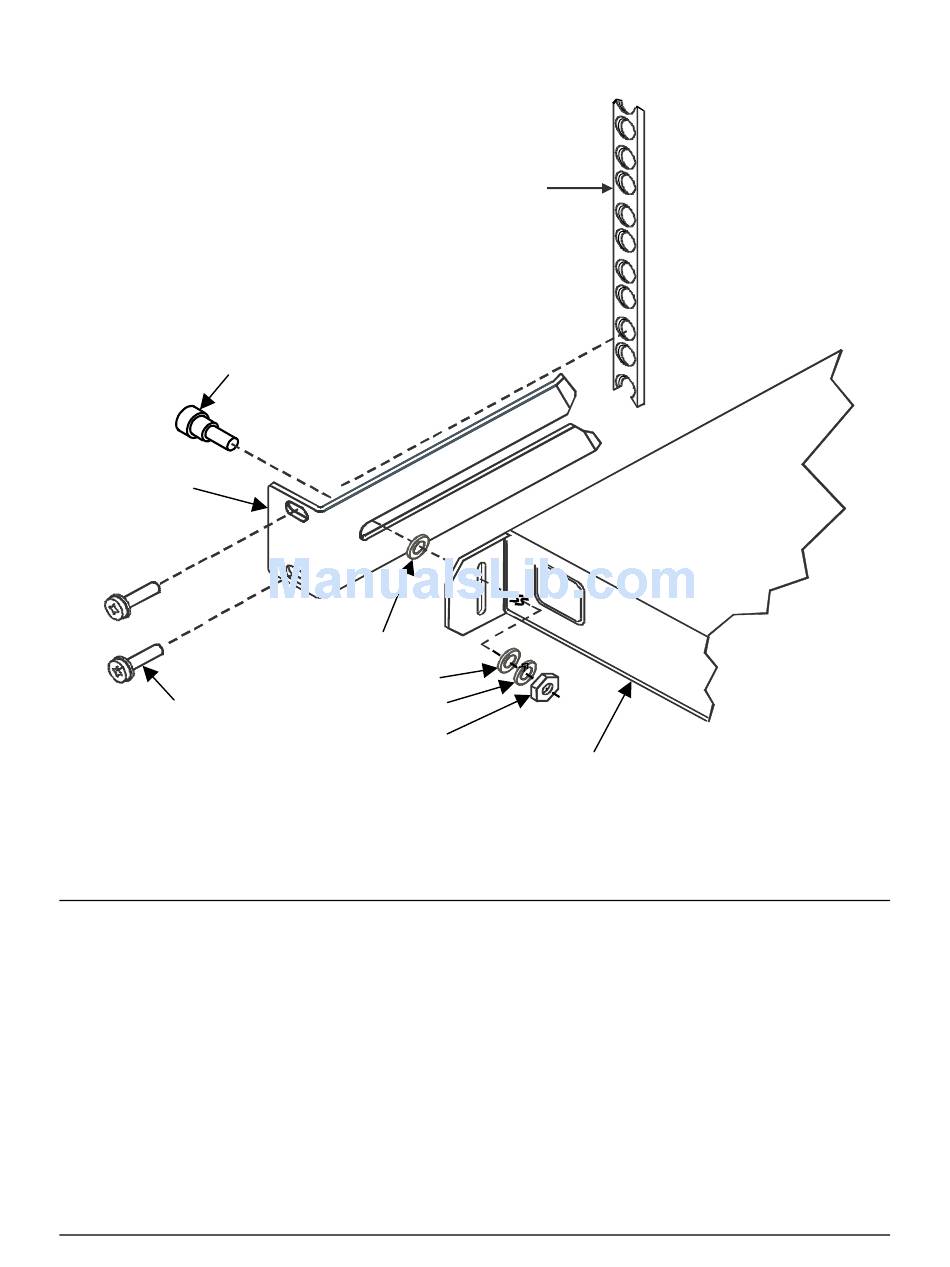

Figure 2-1. Optional Rear-Mounting Support Bracket Installation

2.3

Configuration

There are no internal jumpers to configure, no interface cards to install, and no other options to
install. All configurations are carried out entirely in software. The unit should first be configured
locally, using the front panel keypad and display. The unit will ship with a default 64 kbps, QPSK,
Rate 1/2 configuration. Please refer to Chapter 5. FRONT PANEL OPERATION for details on
how to fully configure the unit for the desired operating parameters.
Note: The auto-sensing AC power supply does not require any adjustments. Simply plug in the
supplied line cord, and turn on the switch on the rear panel.
Equipment Rack
Rear Mounting Rail
#10 Flat Washer
#10 Flat Washer
#10 Split Washer
#10 Hex Nut
MN-0000036 (Ref MN/CDM625.IOM)
Back of unit
2–3
Revision 1
