CDM-625 Advanced Satellite Modem
Front Panel Operation

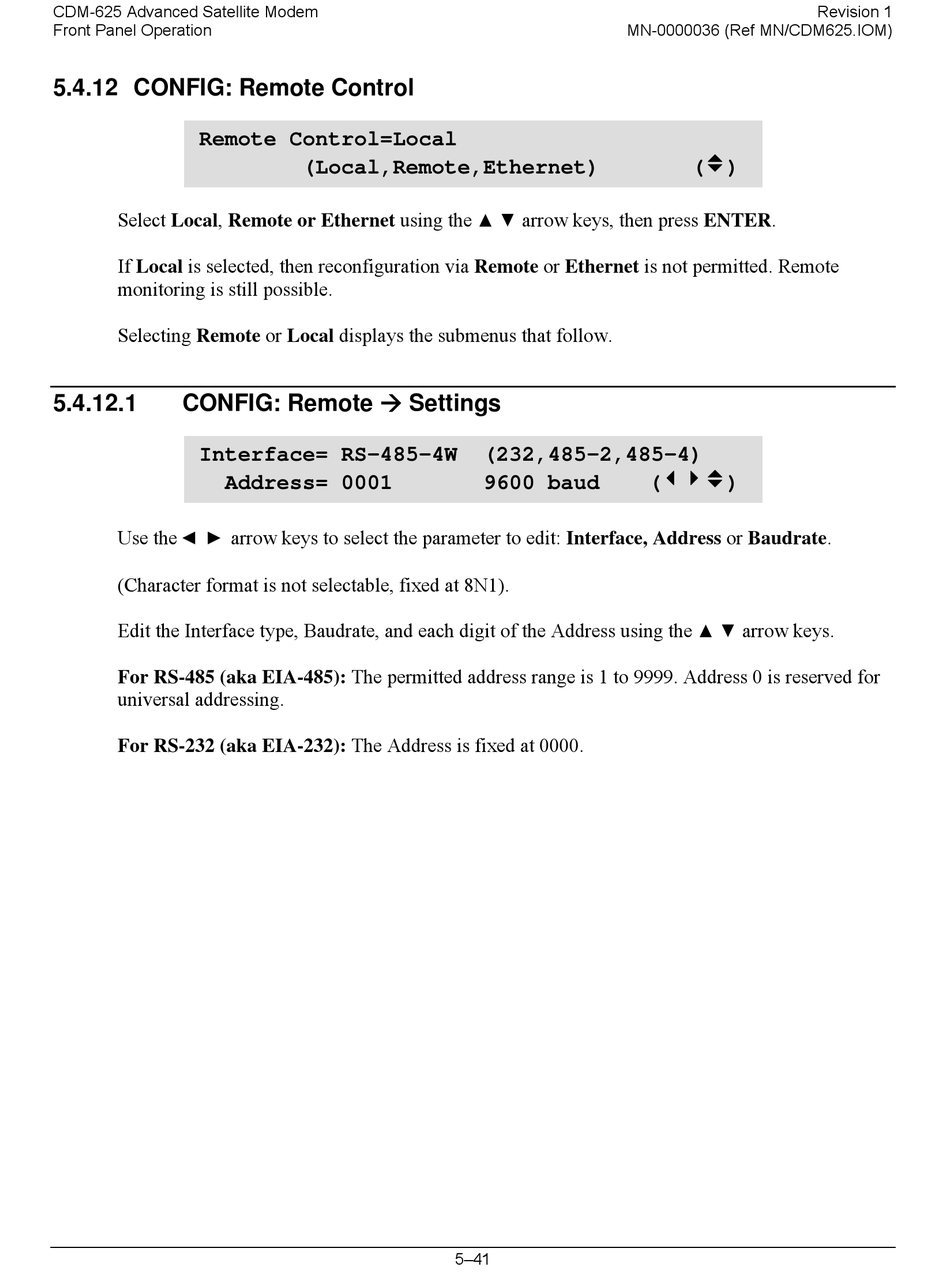

5.4.12 CONFIG: Remote Control

Remote Control=Local
Select Local, Remote or Ethernet using the
If Local is selected, then reconfiguration via Remote or Ethernet is not permitted. Remote
monitoring is still possible.
Selecting Remote or Local displays the submenus that follow.
5.4.12.1 CONFIG: Remote
Interface= RS-485-4W
Address= 0001
Use the ◄ ► arrow keys to select the parameter to edit: Interface, Address or Baudrate.
(Character format is not selectable, fixed at 8N1).
Edit the Interface type, Baudrate, and each digit of the Address using the
For RS-485 (aka EIA-485): The permitted address range is 1 to 9999. Address 0 is reserved for
universal addressing.
For RS-232 (aka EIA-232): The Address is fixed at 0000.
(Local,Remote,Ethernet)
▲ ▼
Settings
5–41
MN-0000036 (Ref MN/CDM625.IOM)
arrow keys, then press ENTER.
(232,485-2,485-4)
9600 baud (34v)
Revision 1
(v)
arrow keys.
▲ ▼
