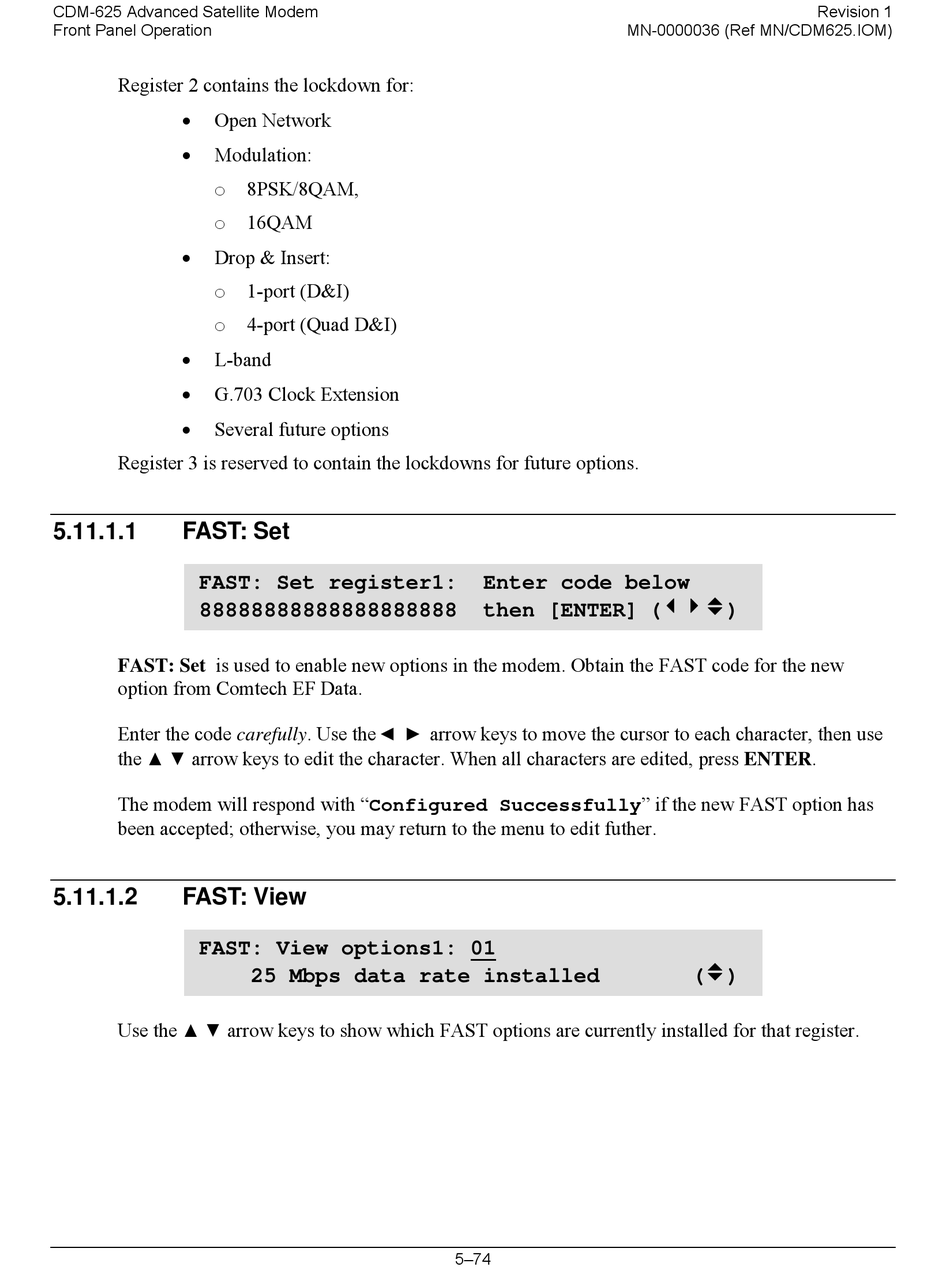

Comtech EF Data CDM-625 Installation And Operation Manual page 146

CDM-625 Advanced Satellite Modem
Front Panel Operation
Register 2 contains the lockdown for:
•
Open Network
•
Modulation:
o 8PSK/8QAM,
o 16QAM
•
Drop & Insert:
o 1-port (D&I)
o 4-port (Quad D&I)
•
L-band
•
G.703 Clock Extension
•
Several future options
Register 3 is reserved to contain the lockdowns for future options.
5.11.1.1 FAST: Set
FAST: Set register1:
88888888888888888888
FAST: Set is used to enable new options in the modem. Obtain the FAST code for the new
option from Comtech EF Data.
Enter the code carefully. Use the
the arrow keys to edit the character. When all characters are edited, press ENTER.
▲ ▼
The modem will respond with "Configured Successfully" if the new FAST option has
been accepted; otherwise, you may return to the menu to edit futher.
5.11.1.2 FAST: View
FAST: View options1: 01
Use the arrow keys to show which FAST options are currently installed for that register.
▲ ▼
◄ ►
25 Mbps data rate installed
Enter code below
then [ENTER] (34v)
arrow keys to move the cursor to each character, then use
5–74
MN-0000036 (Ref MN/CDM625.IOM)
(v)
Revision 1
