Chapter 4. Flash Upgrading; Flash Updating Via Internet; Figure 4-1. Flash Update Via Internet - Comtech EF Data CDM-625 Installation And Operation Manual

Chapter 4. FLASH UPGRADING

4.1

Flash Updating via Internet

The CDM-625 eliminates the need for updating firmware by physically replacing EPROMs. Instead,
the CDM-625 uses 'Flash memory' technology internally. This makes software upgrading very
simple, and updates can now be sent via the Internet (Figure 4-1), via E-mail, or on CD.
This chapter outlines the complete upgrading process as follows:
•
New firmware can be downloaded via the Internet to an external PC.
•
The upgrade can be performed without opening the CDM-625 by simply connecting the unit
to the serial port of a computer.
•
The firmware update is transferred, via File Transfer Protocol (FTP), to the CDM-625.

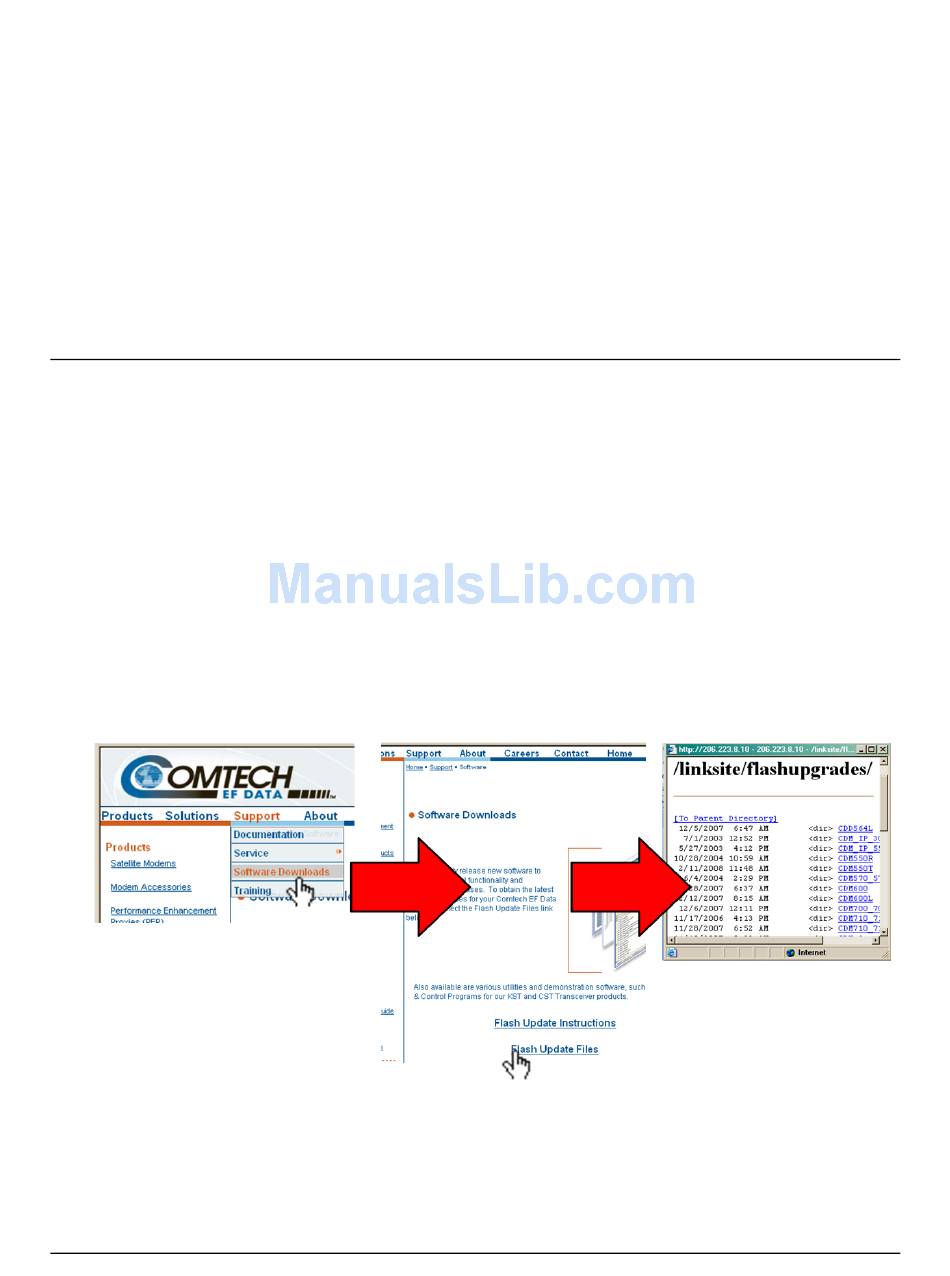

Figure 4-1. Flash Update via Internet

4–1
