ODU | Utilities Page

Note: The appearance of the 'ODU | Utilities' page changes depending on which type of ODU
had been configured for operation with the CDM-625. This page is used to configure various
ODU utility functions.

6.5.4.5.4.1 ODU | Utilities Page (CSAT-5060)

Figure 6-22 shows the 'ODU | Utilities' page as it appears with the CSAT-5060 configured as the
ODU.
ODU Selection
If redundant ODUs are used, the CSAT-5060 'ODU | Utiltities' page can be toggled between the
Online and Offline units by selecting CSAT #1 or CSAT #2 in the ODU Selection: box, then
clicking Select ODU. A message identifies the currently active unit as 'ONLINE' in the right-
hand side of the box.
Force 1:1 Switch
If redundant ODUs are used, and the selected unit is currently the Online unit, this will force a
switchover so the unit will then be in 'Standby' mode. The command is only valid for the Online
unit in a 1:1 pair.

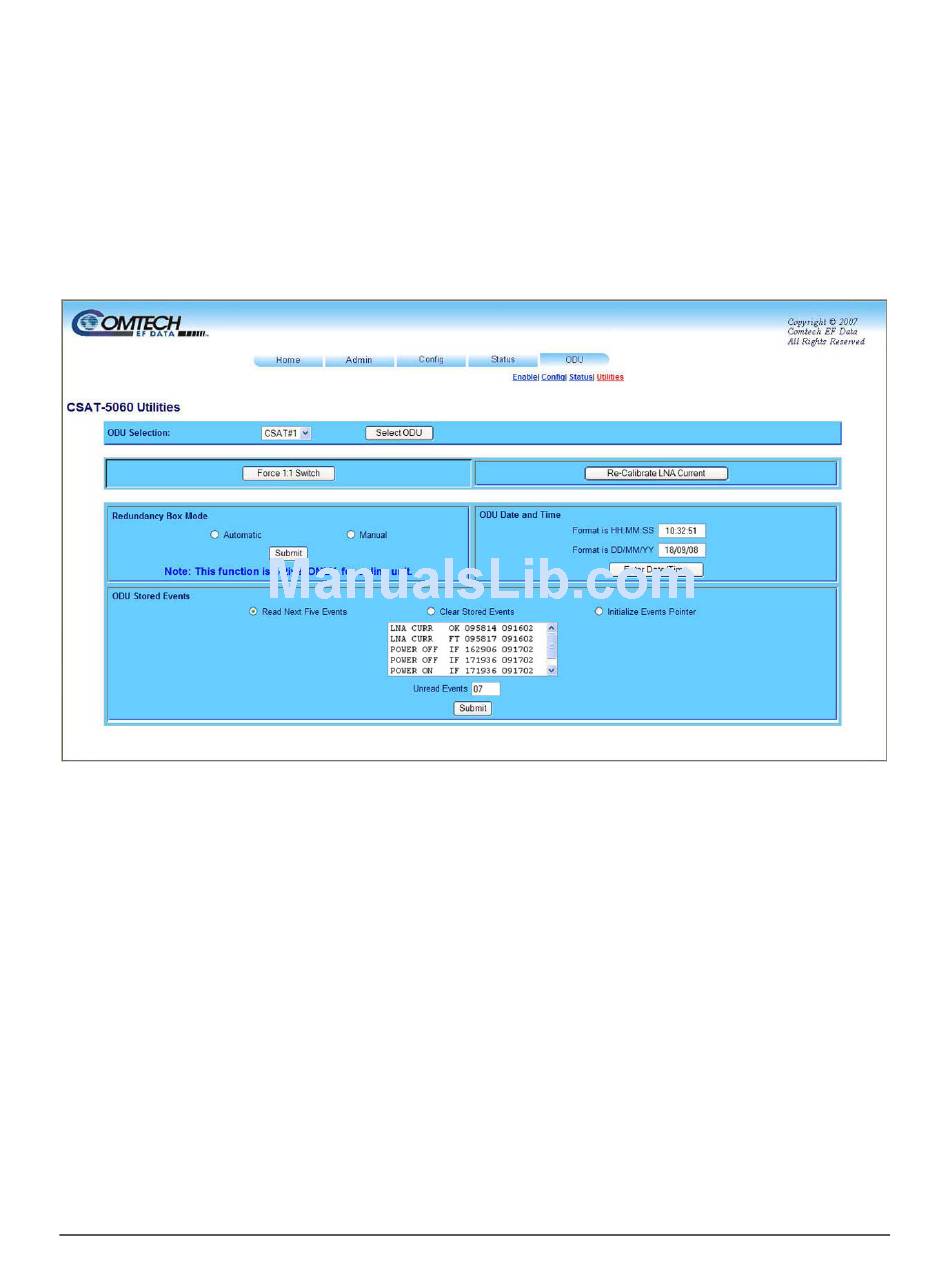

Figure 6-22. ODU | Utilities page (CSAT-5060)
