CDM-625 Advanced Satellite Modem
Front Panel Operation
may be viewed on the monitor screen. The equalizer is then turned on, and the Eb/No viewed on
the monitor screen to determine any improvement.

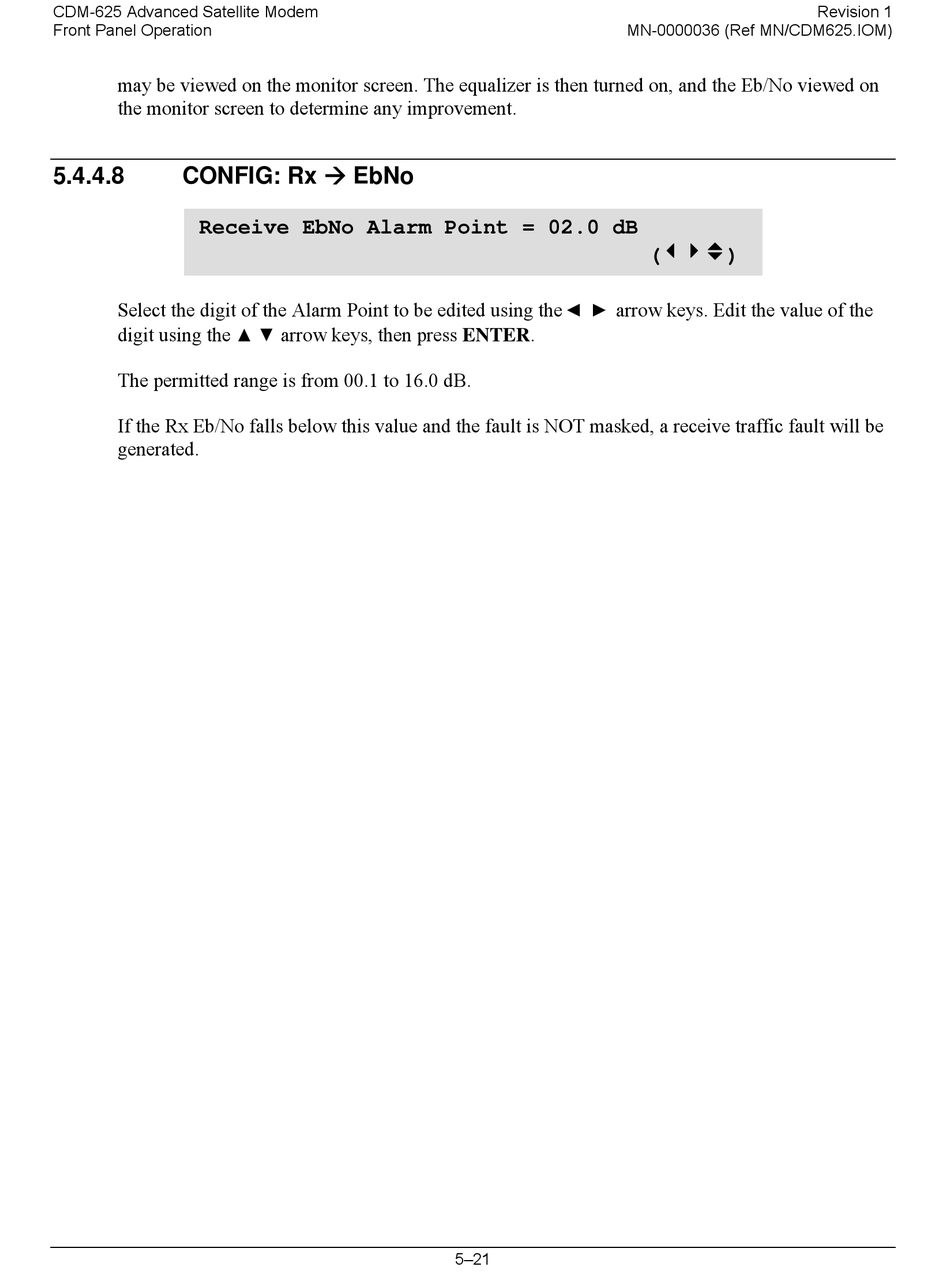

5.4.4.8 CONFIG: Rx
Receive EbNo Alarm Point = 02.0 dB
Select the digit of the Alarm Point to be edited using the
digit using the
The permitted range is from 00.1 to 16.0 dB.
If the Rx Eb/No falls below this value and the fault is NOT masked, a receive traffic fault will be
generated.
EbNo
arrow keys, then press ENTER.
▲ ▼
MN-0000036 (Ref MN/CDM625.IOM)
◄ ► arrow keys. Edit the value of the
5–21
Revision 1
