CDM-710/L Broadcast Satellite Modem
Front Panel Operation
of 1, 2, 5, 10, or 20 MHz. The unit reverts to Internal if the External
Reference is not present or is faulted.
• Aux (Auxiliary) Submenu – The selections here define the 1:1 Modem
Switching parameters of the unit.
• Alarms Submenu – The selections here configure the Alarm states for
various parameters.

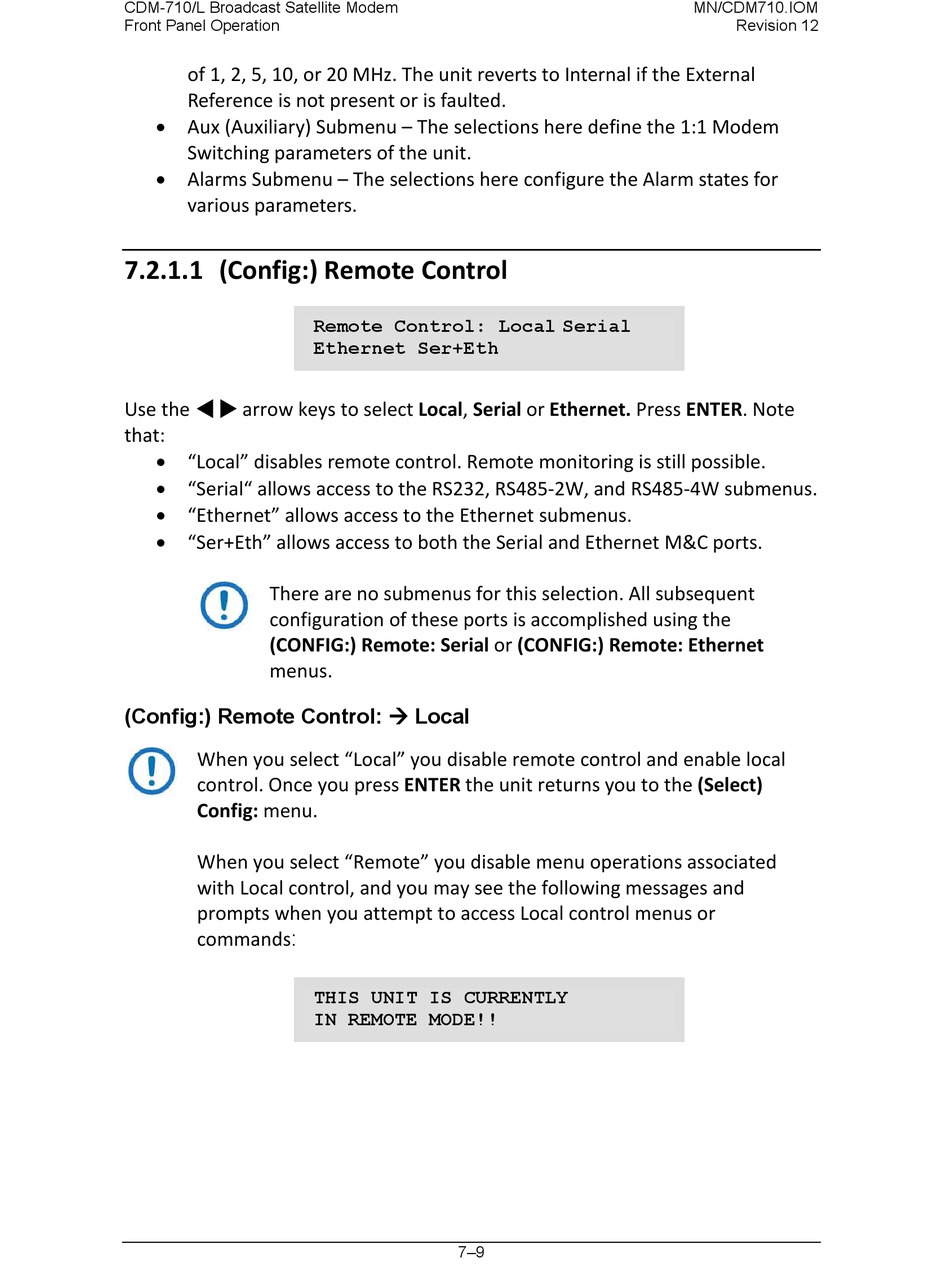

7.2.1.1 (Config:) Remote Control

Use the   arrow keys to select Local, Serial or Ethernet. Press ENTER. Note
that:
• "Local" disables remote control. Remote monitoring is still possible.
• "Serial" allows access to the RS232, RS485-2W, and RS485-4W submenus.
• "Ethernet" allows access to the Ethernet submenus.
• "Ser+Eth" allows access to both the Serial and Ethernet M&C ports.
There are no submenus for this selection. All subsequent
configuration of these ports is accomplished using the
(CONFIG:) Remote: Serial or (CONFIG:) Remote: Ethernet
menus.
(Config:) Remote Control:  Local
When you select "Local" you disable remote control and enable local
control. Once you press ENTER the unit returns you to the (Select)
Config: menu.
When you select "Remote" you disable menu operations associated
with Local control, and you may see the following messages and
prompts when you attempt to access Local control menus or
commands:
Remote Control: Local Serial
Ethernet Ser+Eth
THIS UNIT IS CURRENTLY
IN REMOTE MODE!!
7–9
MN/CDM710.IOM
Revision 12
