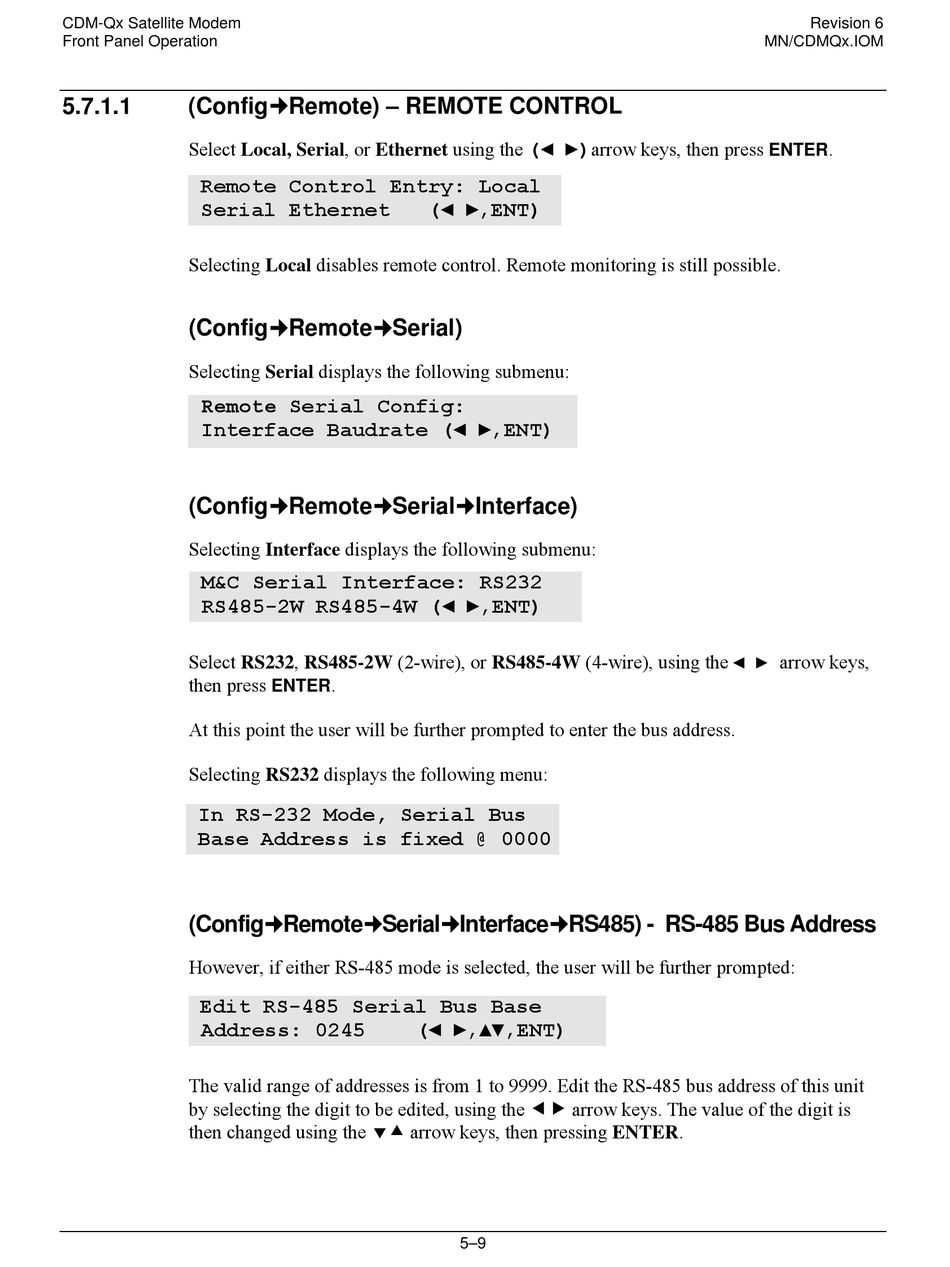

5.7.1.1 (Config%Remote) – REMOTE CONTROL
Select Local, Serial, or Ethernet using the
Remote Control Entry: Local
Serial Ethernet
Selecting Local disables remote control. Remote monitoring is still possible.
(Config%Remote%Serial)
Selecting Serial displays the following submenu:
Remote Serial Config:
Interface Baudrate (◄ ►,ENT)
(Config%Remote%Serial%Interface)
Selecting Interface displays the following submenu:
M&C Serial Interface: RS232
RS485-2W RS485-4W (◄ ►,ENT)
Select RS232, RS485-2W (2-wire), or RS485-4W (4-wire), using the ◄ ► arrow keys,
then press
At this point the user will be further prompted to enter the bus address.
Selecting RS232 displays the following menu:
In RS-232 Mode, Serial Bus
Base Address is fixed @ 0000
(Config%Remote%Serial%Interface%RS485) - RS-485 Bus Address
However, if either RS-485 mode is selected, the user will be further prompted:
Edit RS-485 Serial Bus Base
Address: 0245
The valid range of addresses is from 1 to 9999. Edit the RS-485 bus address of this unit
by selecting the digit to be edited, using the
then changed using the () arrow keys, then pressing ENTER.
(◄ ►,ENT)
.
ENTER
(◄ ►,▲▼,ENT)
(◄ ►)
arrow keys, then press
&'
arrow keys. The value of the digit is
5–9
