Configuring The Daily Tariff Schedule - Satec expertmeter EM720 Operation Manual

Chapter 5 Configuring the EM720
Parameter
Channel
Source
Input
Multiplier
Target

Configuring the Daily Tariff Schedule

EM720 Power Quality and Revenue Meter
Options Default
No, Ch1-Ch6 None
Register Source List
None None
kWh IMPORT
KWh EXPORT
kvarh IMPORT
kvarh EXPORT
kvarh Q1
kvarh Q2
kvarh Q3
kvarh Q4
kVAh TOTAL
kVAh IMPORT
kVAh EXPORT
DI1-DI8
0.001 to 100.000 1.000
Reg#1- Reg#10 None

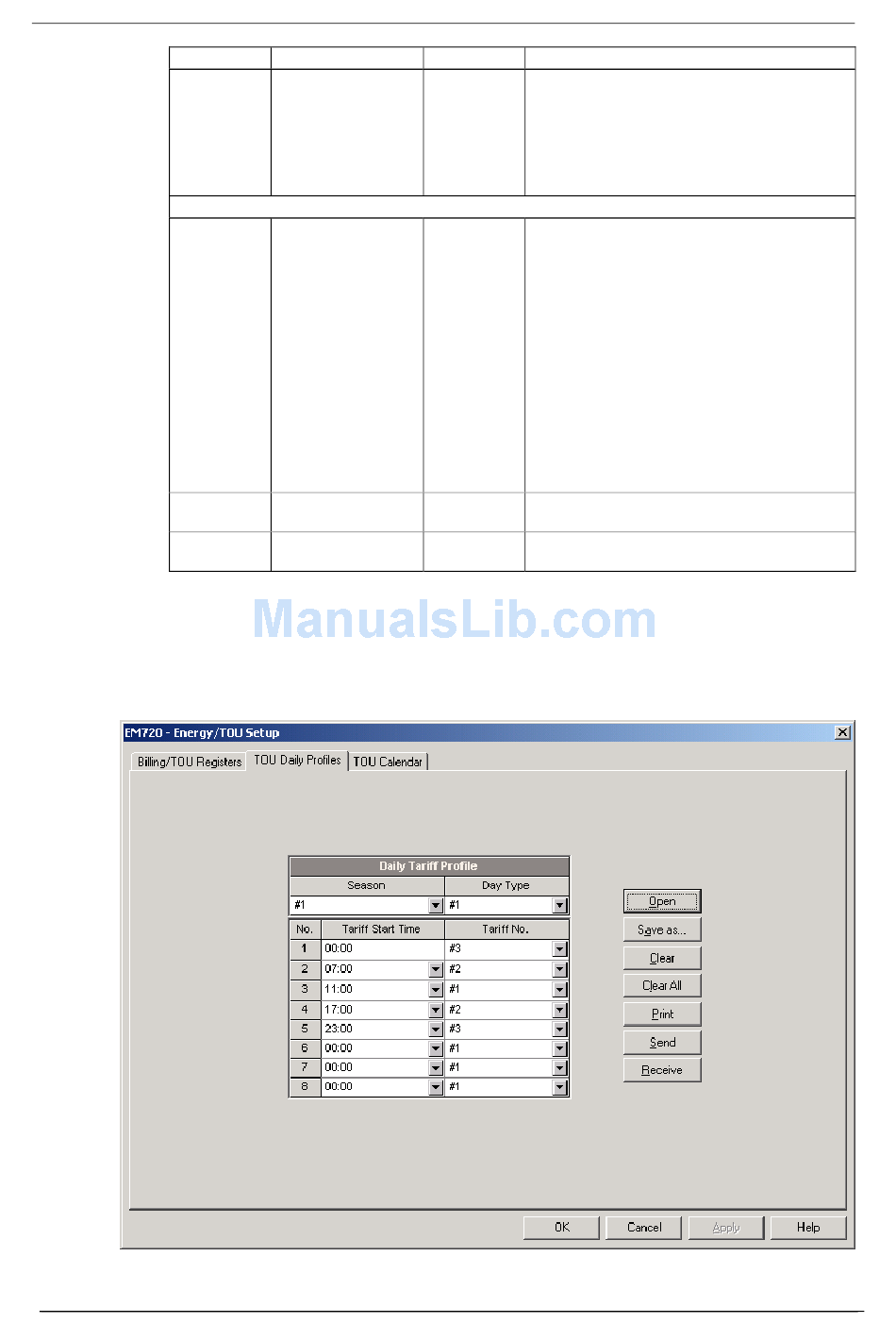

To configure your daily tariff schedule, select Energy/TOU
from the Meter Setup menu, and then click on the TOU Daily
Profiles tab.
Configuring Billing/TOU
Description
Defines a measurement channel for multi-
meter energy metering. Not used for a
single self-metering channel if there are no
external sources. Set to Ch1 for internal
energy sources, and to Ch2 through Ch6 for
external sources in the event of multi-
channel energy metering.
Links an internal or external energy source
to the billing register.
The multiplication factor for the energy
source. Not effective for internal sources.
Defines the target billing register for the
energy source. It is set automatically.
95
