Chapter 7 Monitoring Meters; Viewing Real-Time Data - Satec expertmeter EM720 Operation Manual

Chapter 7 Monitoring Meters

Chapter 7 Monitoring Meters

Viewing Real-time Data

Organizing Data Sets
EM720 Power Quality and Revenue Meter
Real-time data is continuously retrieved from your devices
and updated on the screen at the rate you defined in the
Instrument Setup.
To get real-time data from your device:
1. Ensure that the On-line button on the PAS toolbar is
checked.
2. Select the device site from the list box on the PAS
toolbar.
3. Point to RT Data Monitor on the Monitor menu, and
then select a data set you want to view.

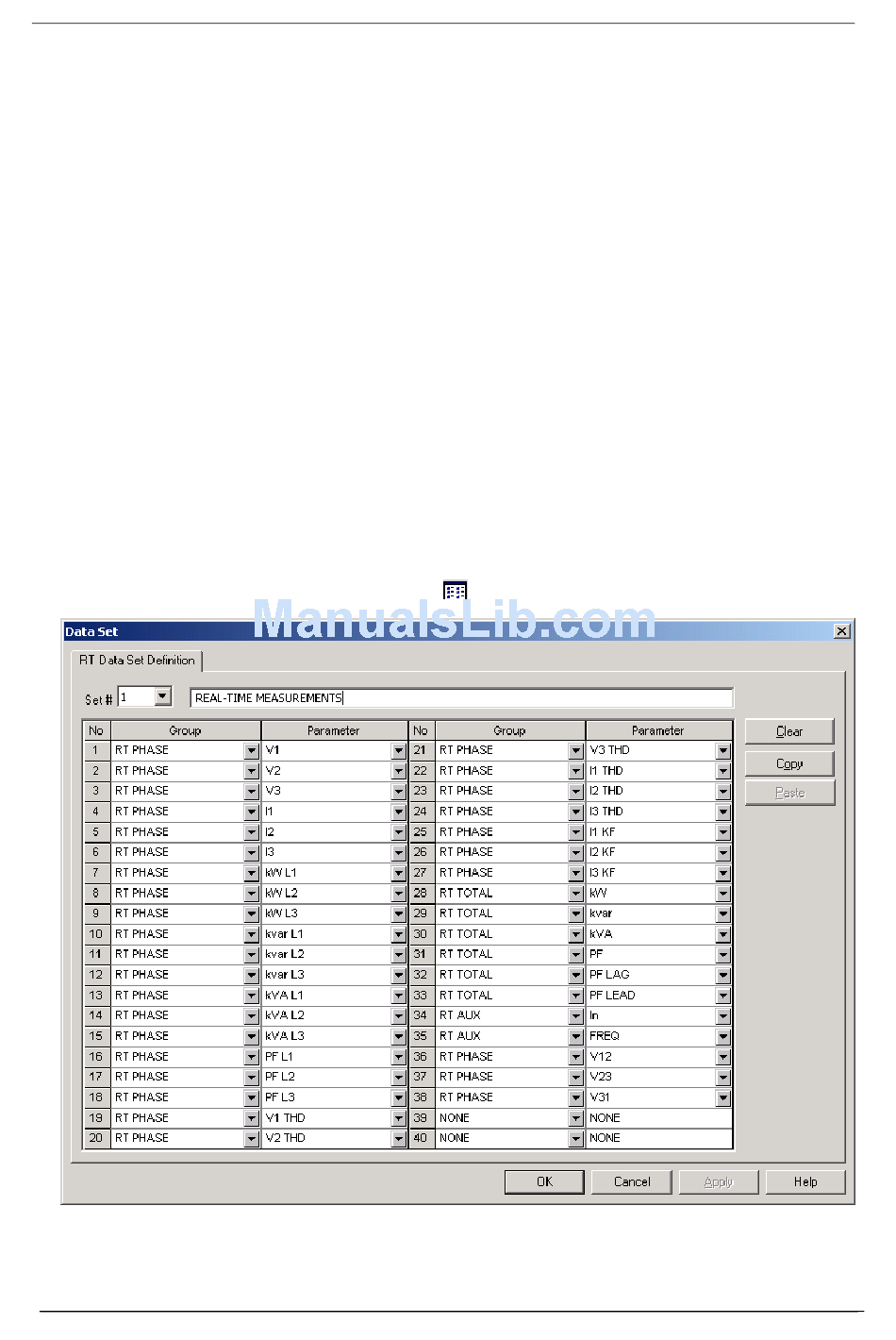

PAS supports 33 programmable data sets with up to 40 data
parameters. Set #0 is intended for simple meters, which
have a limited
recommended for the use with the EM720. To re-organize
data sets, select RT Data Sets from the Monitor menu or click
on the button on the local toolbar.
Some data sets are preset for your convenience and others
are empty. You can freely modify data sets.
Viewing Real-time Data
number of parameters, and is not
