Chapter 5 Configuring the EM720

Transformer/Line Loss Compensation Setup

Parameter
Loss Compensation Enabled
Metering Point Location
74
The order in which you define the test points does not
matter. The meter will automatically arrange all data in a
correct order.
Check the Correction Enabled box to activate transformer
correction in the meter. You can also enable and disable
transformer correction from the front display (see
Options and Mode Control).
Loss compensation corrects the power and energy readings of
the meter when the metering point and point of billing are
physically separated by a power transformer or a power line.

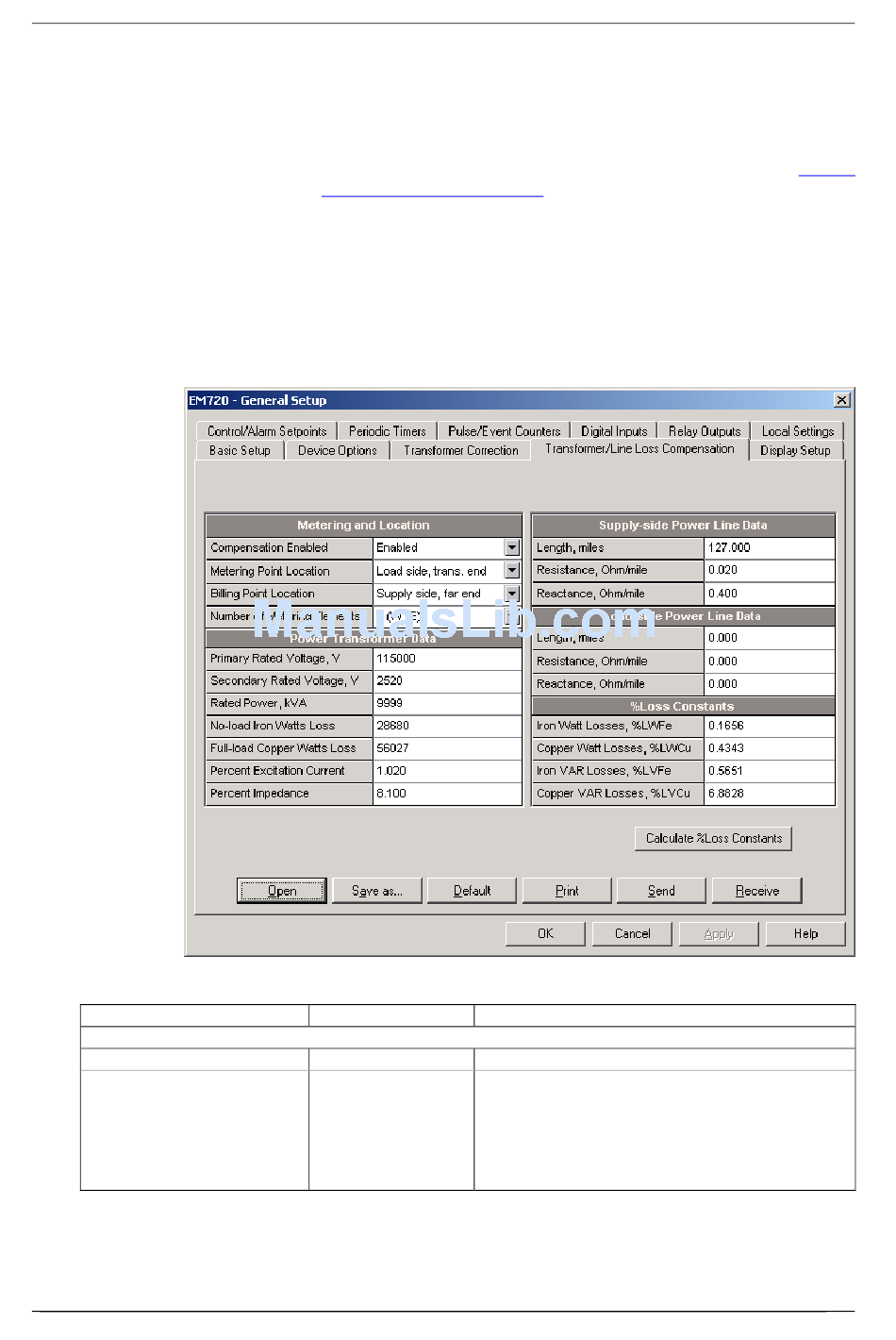

Select General Setup from the Meter Setup menu, and then
click on the Transformer/Line Loss Compensation tab.
The available options are described in the following table.
Options
Metering and Location
Disabled, Enabled Enables/disables loss compensation
Supply side, far end, Defines the location of the meter:
Supply side, far end – near the supply source or near the load,
transformer end,
transformer end – near the power transformer.
Load side,
transformer end,
Load side, far end
