Chapter 8 Retrieving and Storing Files

Exporting Files in Excel Format

148
To automatically convert your waveform or data log tables
into COMTRADE or PQDIF format:

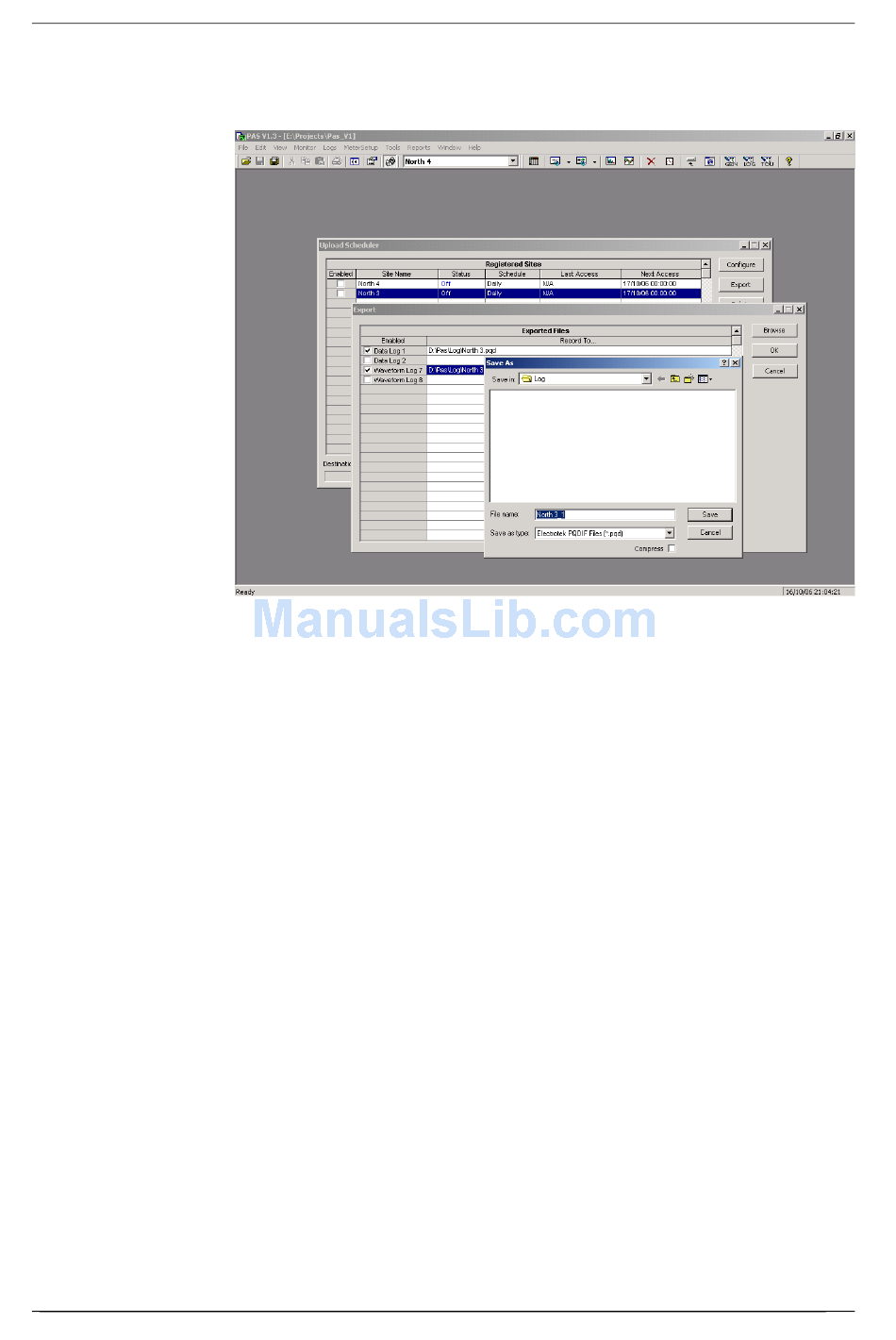

1. Open the Upload Scheduler.
2. Highlight a desired device site with the left mouse
button, and then click on the Export button.
3. Check the Enabled box for a data log or a waveform
log table you want to automatically convert at the
upload time.
4. Highlight the Record to... row for the selected table and
click on the Browse button.
5. Select a folder where you want to store converted
files, type in the converted file's name, select a desired
output file format, and then click on Save.
6. Repeat the same for all tables you wish to be
converted.
7. Click OK.
PAS can automatically convert data files into the Microsoft
Excel workbook format while retrieving data from your
meters via the Upload Scheduler.
To store files in Excel format, follow instructions in the
previous section and select Excel Workbook as the output file
format.
The first row of the Excel table lists data names (see
Appendix A) and the second row provides data codes, which
identify recorded data points (see Modbus communications
guide for data codes) that may be useful for automated table
processing.
EM720 Power Quality and Revenue Meter
Exporting Files
