Chapter 5 Configuring the EM720

Configuring DNP3

DNP Options
Number of BI to Generate
events
Binary Input Object
Binary Input Change
Event Object
Number of AI to Generate
events
EM720 Power Quality and Revenue Meter
4. Click Send to download your setup to the device.
DNP Options can be changed both via DNP3 and Modbus.
Refer to the EM720 DNP3 Reference guide for information on
the protocol implementation and a list of the available data
points.

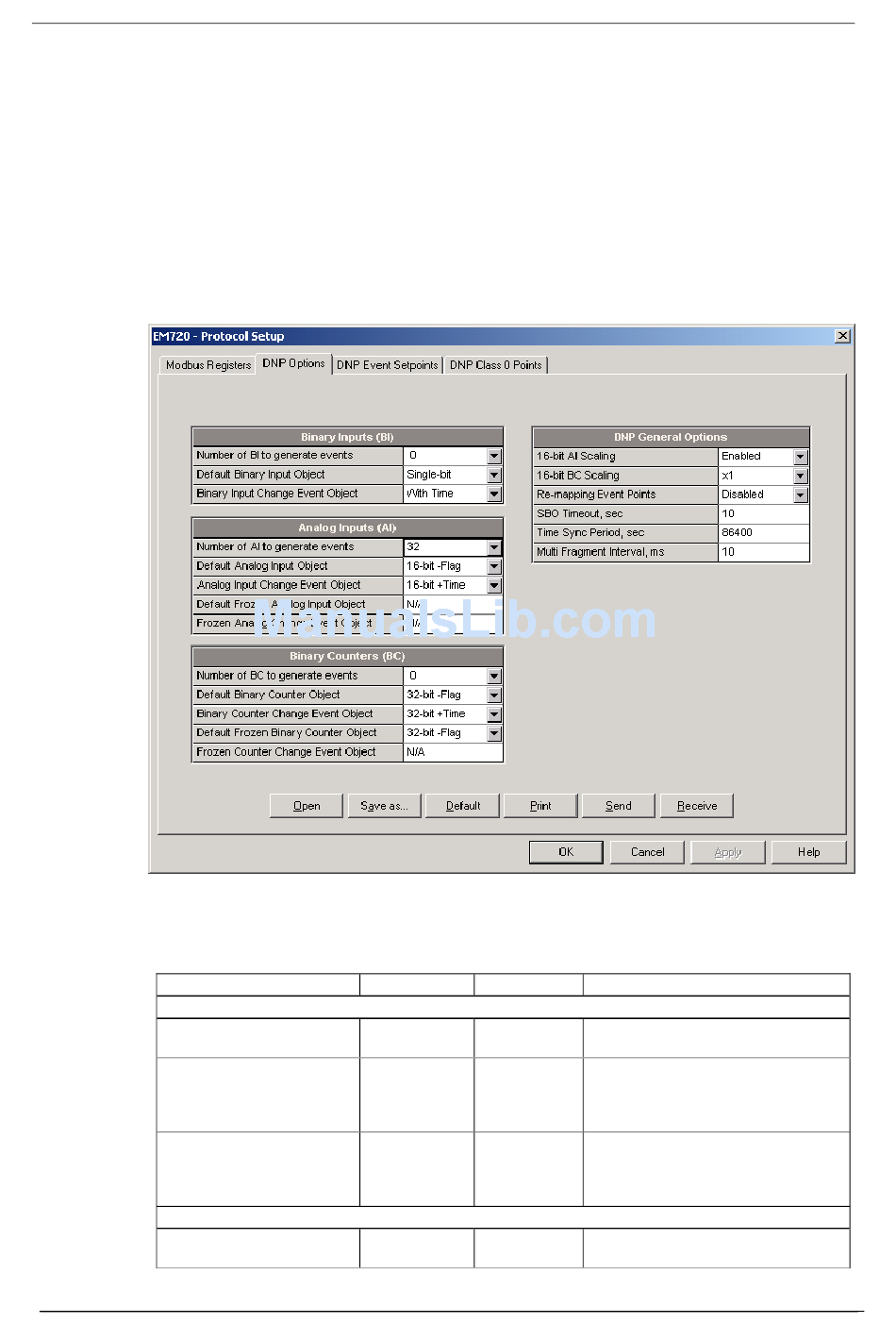

From the Meter Setup menu select Protocol Setup and click
on the DNP Options tab.
The following table describes available DNP options. Refer to
the DNP3 Data Object Library document available from the
DNP User's Group on the DNP3 object types.
Parameter
0-64
Single-bit
With Status
Without Time
With Time
0-64
Configuring Communication Protocols
Options Default
Binary Inputs (BI)
3 21
Single-bit
With Time
Analog Inputs (AI)
3 43
Description
The total number of BI change
event points for monitoring
The default BI object variation for
requests with qualifier code 06
when no specific variation is
requested
The default BI change event object
variation for requests with qualifier
code 06 when no specific variation
is requested
The total number of AI change
event points for monitoring
121
