Chapter 9 Viewing Files and Reports
Linking to Waveforms and Data Records
Retrieving Waveforms Online
EM720 Power Quality and Revenue Meter

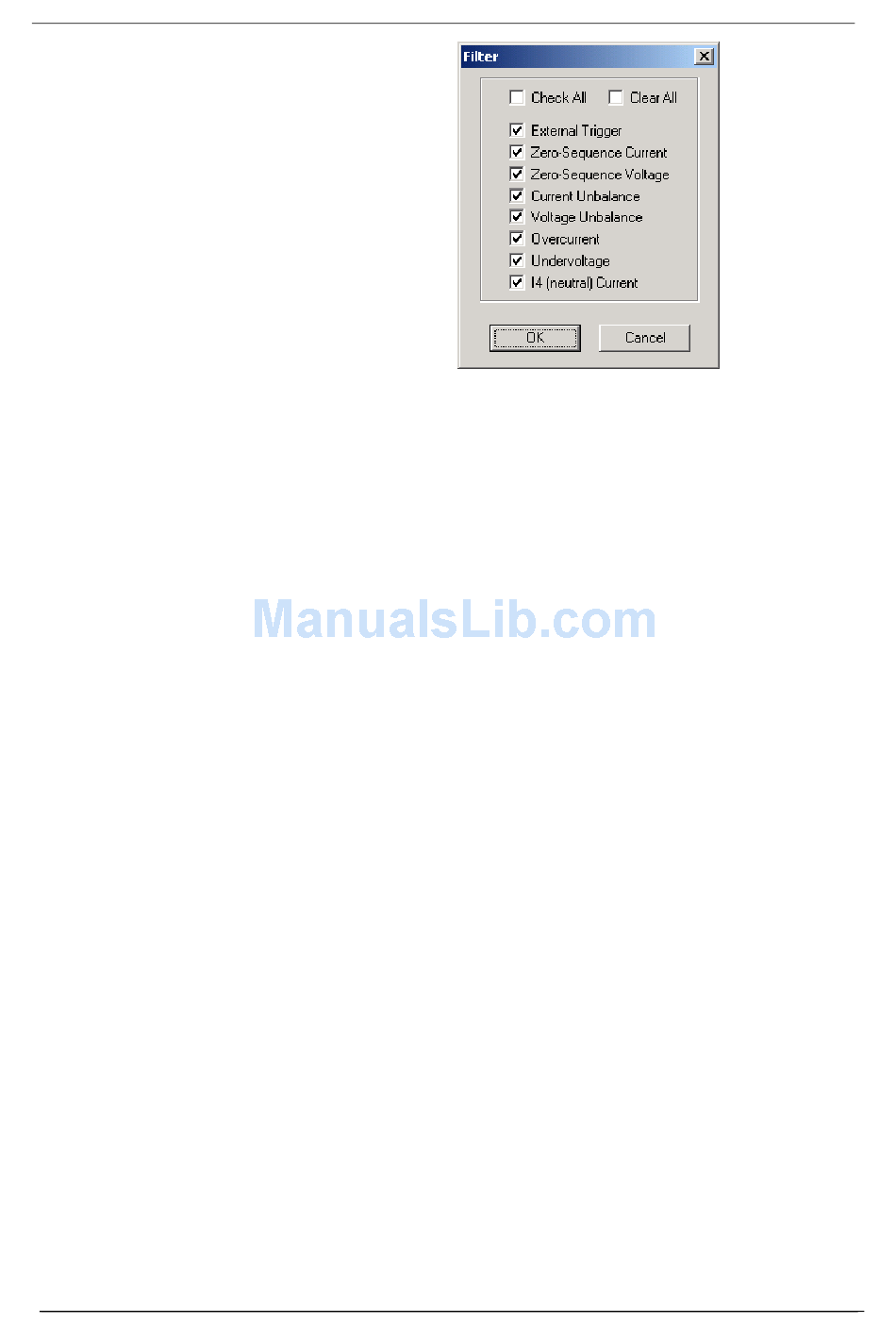

When displaying the fault report, PAS establishes links
between the event and related waveforms and data log
records. Fault events for which PAS finds related links are
blue colored.
Click on the colored event ID with the left mouse button to
check a list of the event links. Click on a list item to move to
the related waveform or data log records. Data log records
associated with the fault event are taken into a separate
window for easy viewing and trending.
If you found an event for which you expect a waveform to be
recorded in the meter, but it has not yet been stored to the
database, you can retrieve it online.
Events for which PAS did not find a corresponding waveform
in the database are still black colored.
Click on the event ID, then click on the "Retrieve Waveform"
prompt and point to a database to which you want the
waveform to be stored.
Viewing the Fault Log
