Chapter 9 Viewing Files and Reports

Viewing Synchronized Waveforms

EM720 Power Quality and Revenue Meter
currents, calculated for the point indicated by the left marker
line.
To enable or disable the symmetrical components, click on
the waveform window with the right mouse button, select
"Options...", check or uncheck the "Symmetrical components"
box on the "Channels" tab, and then click OK.

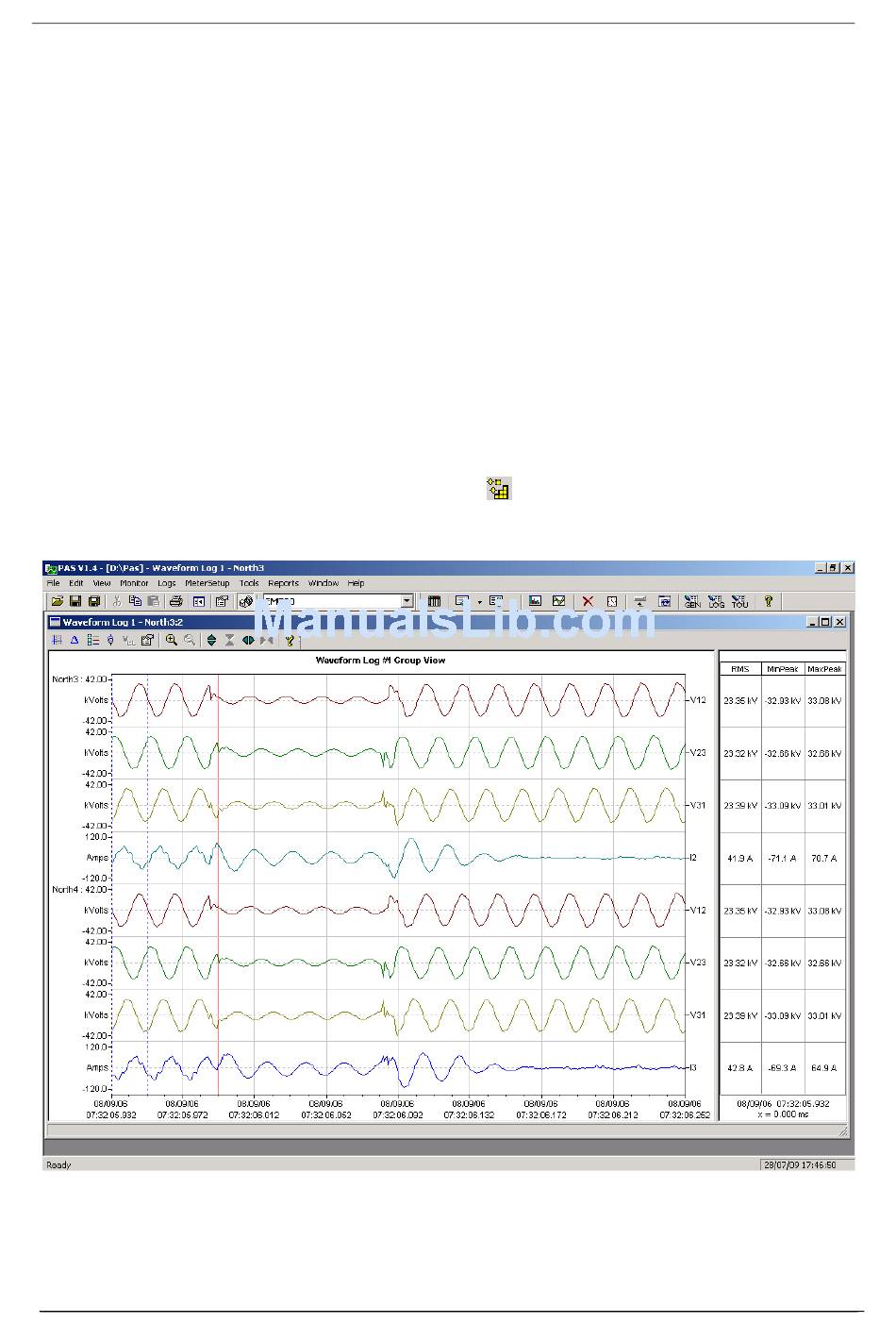

If you have a number of devices with synchronized clocks,
you can view waveforms recorded at different locations in
one window. PAS can synchronize the time axes for different
waveforms so they could be displayed in a single plot.
To get synchronized waveforms:
1. Put the databases with waveforms into the same
folder, or put the sites from which you uploaded data
to the same group in the sites tree.
2. Open a waveform you want to synchronize with other
waveforms, and then click on the Multi-site
View button
waveforms that have the same time span as your
selected waveform.
3. Check the sites your want to see displayed.
Viewing Waveforms
. PAS searches for time-coordinated
169
