Remove SAS Storage Drive Cables
b.

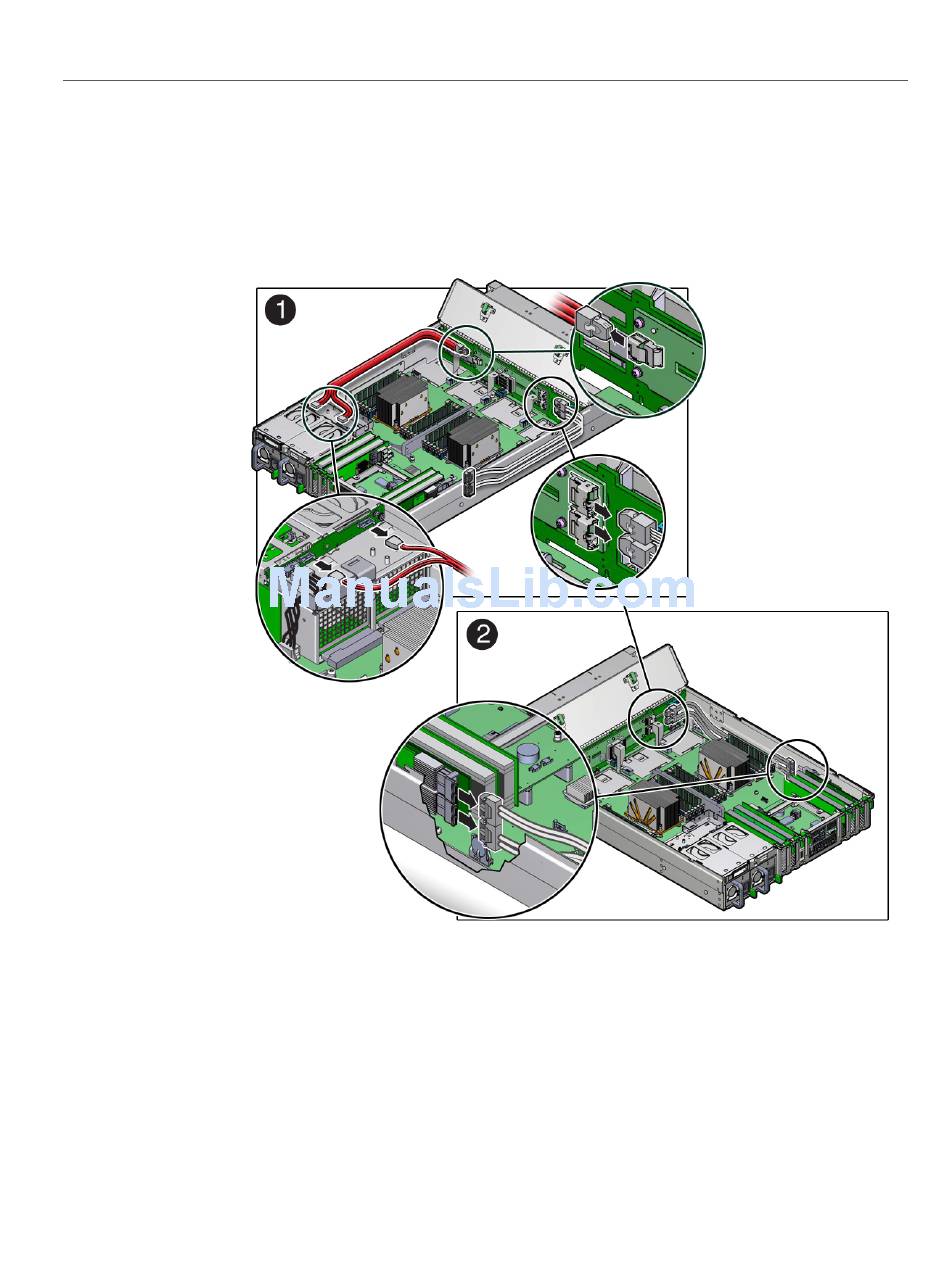

(Optional) To disconnect the SAS cables between the rear storage drive
backplane and front storage drive backplane, press each latch, and then pull
out to disengage the cable from each SAS connector [1].
Remove the SAS cables from the server.
3.
Carefully remove the SAS cable bundles from the chassis mid-wall. Be careful not to snag the
cables on the server components.
120
Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
