See
"Servicing the Front LED/USB Indicator Modules" on page
7.

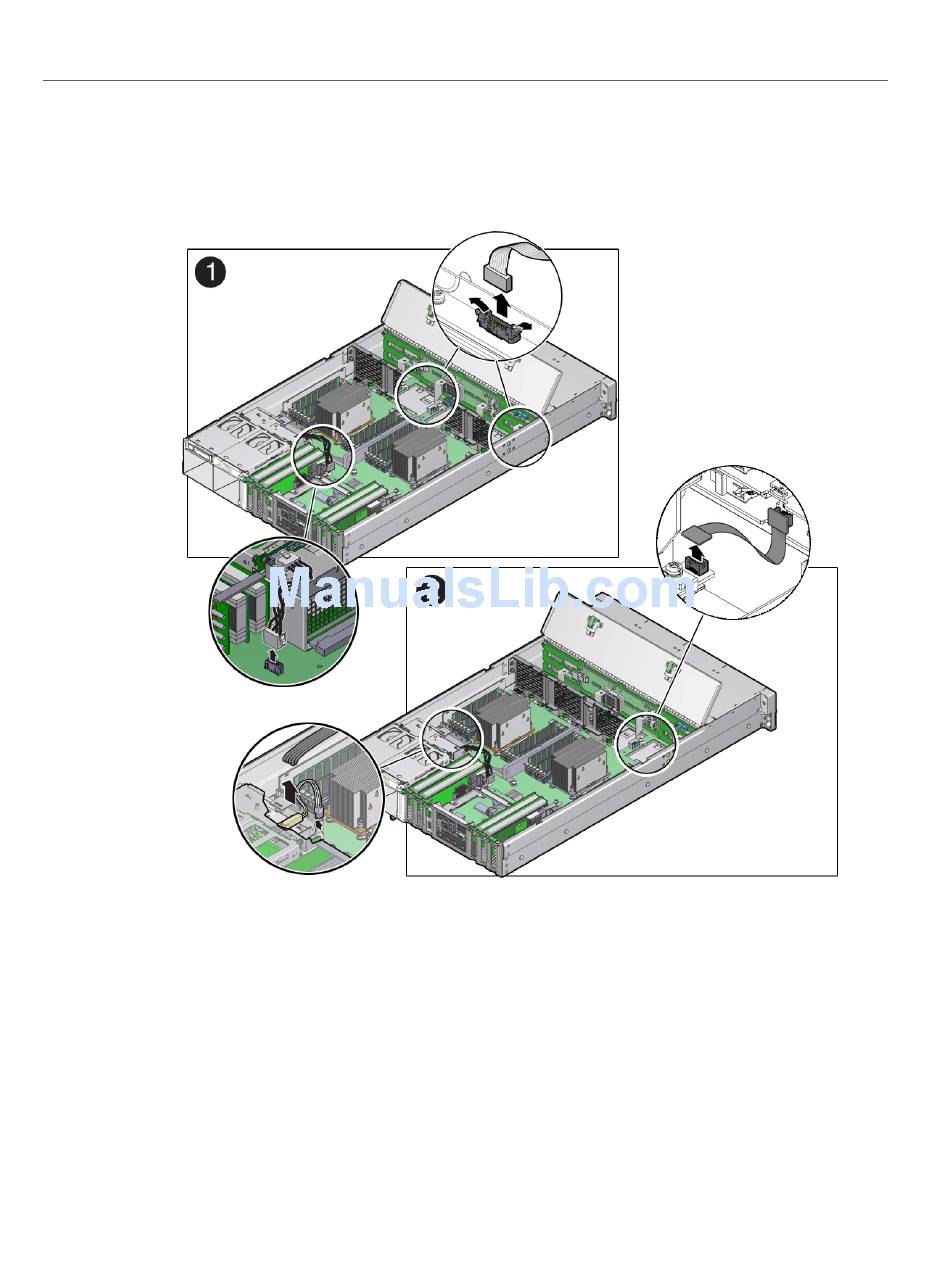

Disconnect the auxiliary signal cable from the motherboard to the front storage
drive backplane [2].
See
"Servicing the Storage Drive Backplanes" on page
8.
Disconnect the power cable from the motherboard to the front storage drive
backplane [2].
See
"Servicing the Storage Drive Backplanes" on page
Remove the Motherboard Assembly
130.
112.
112.
Servicing Components That Require Server Power-Off
147
