b.
Apply a reclosable fastener to the underside of the super capacitor.
c.

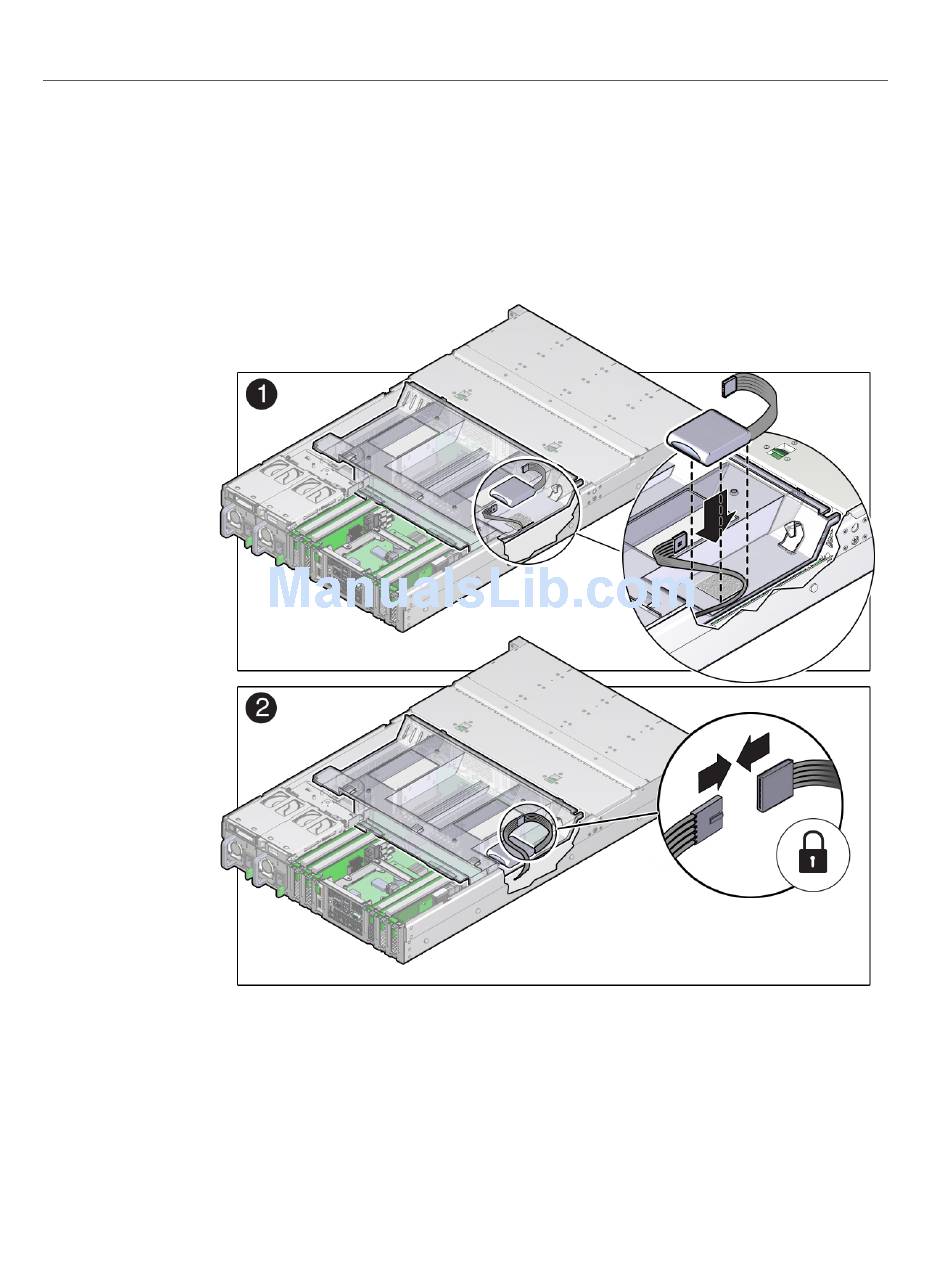

Align the reclosable fastener on the super capacitor with the reclosable
fastener on the air baffle and press down [1].
Connect the super capacitor's cable [2].
d.
Install the Oracle Storage 12 Gb/s SAS PCIe RAID HBA Card
Servicing Components That Require Server Power-Off
129
