Oracle Exadata X5-2 Service Manual page 128

Install the Oracle Storage 12 Gb/s SAS PCIe RAID HBA Card
To ensure proper SAS cable connections, see
Cables" on page

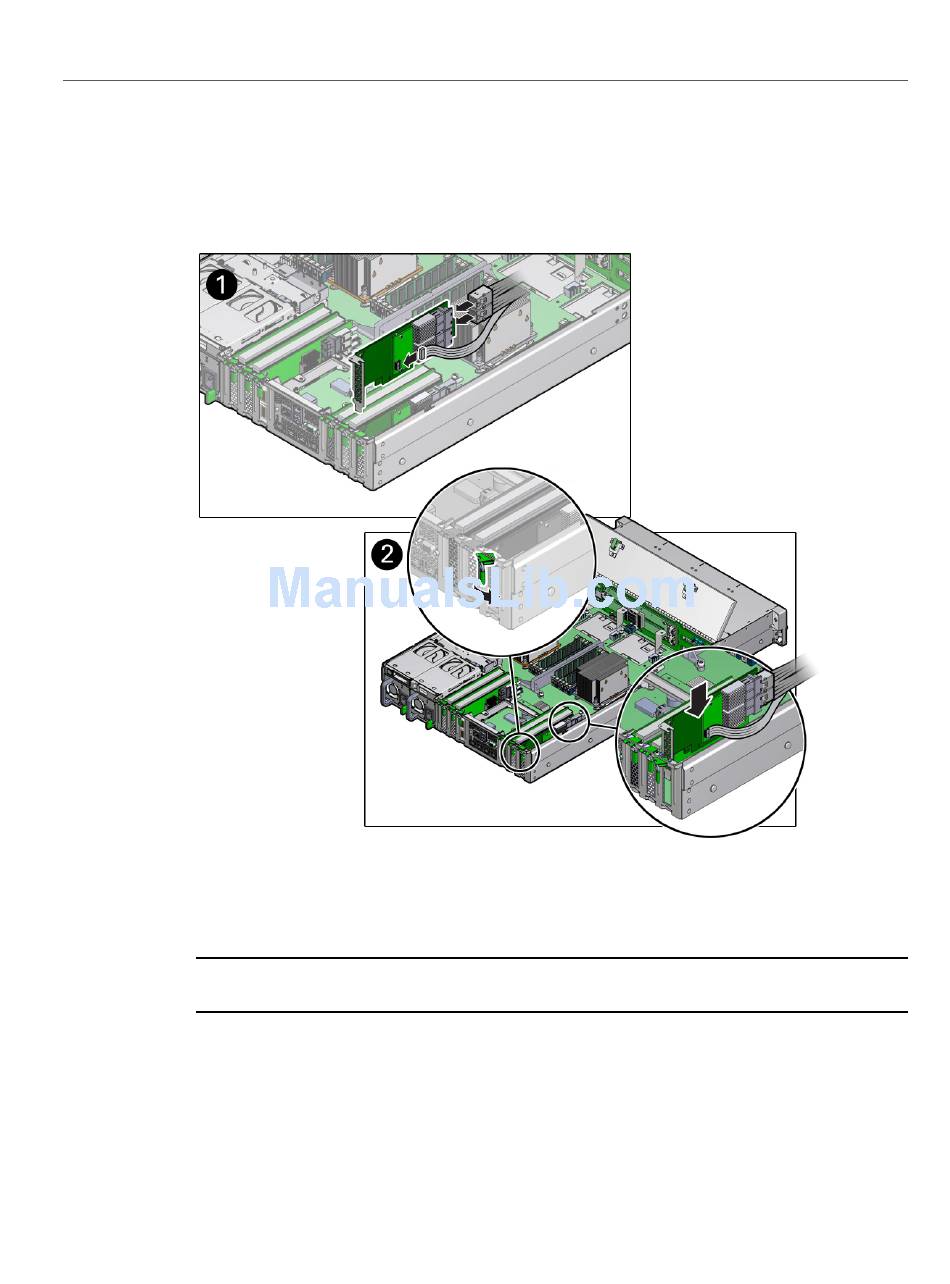

4. Insert the Oracle Storage 12 Gb/s SAS PCIe RAID HBA card into slot 6, and
rotate the PCIe locking mechanism to secure the PCIe HBA card in place [2].
Note -
card. The card is required for controlling and managing the SAS storage drives.
Install the super capacitor in the chassis.
5.
a. Lower the air baffle to the installed position.
128 Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
121.
PCIe slot 6 is the primary slot for the Oracle Storage 12 Gb/s SAS PCIe RAID HBA
"Install SAS Storage Drive
