6.

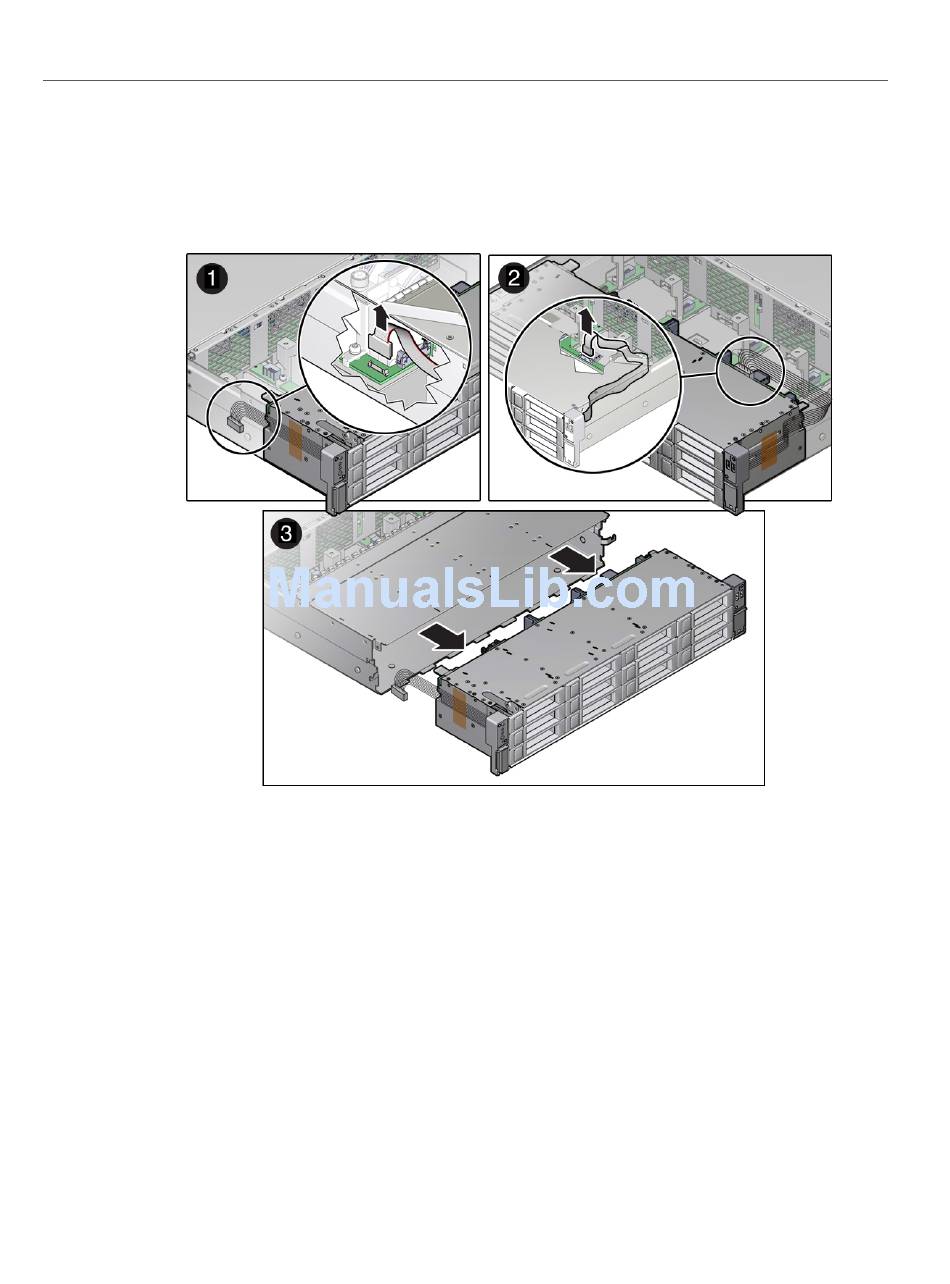

Disconnect the left LED indicator module cable and the right LED/USB indicator
module cable from the motherboard [1 and 2].
7.
Slide the disk cage assembly forward, and then gently lift the disk cage
assembly from the chassis [3].
Set the disk cage assembly on an anti-static mat.
8.
Remove the left LED indicator module.
Remove the two No. 2 Phillips screws that secure the LED indicator module
a.
to the server front panel [1].
Remove the Left LED Indicator Module
Servicing Components That Require Server Power-Off
133
