Install the Right LED/USB Indicator Module
6.

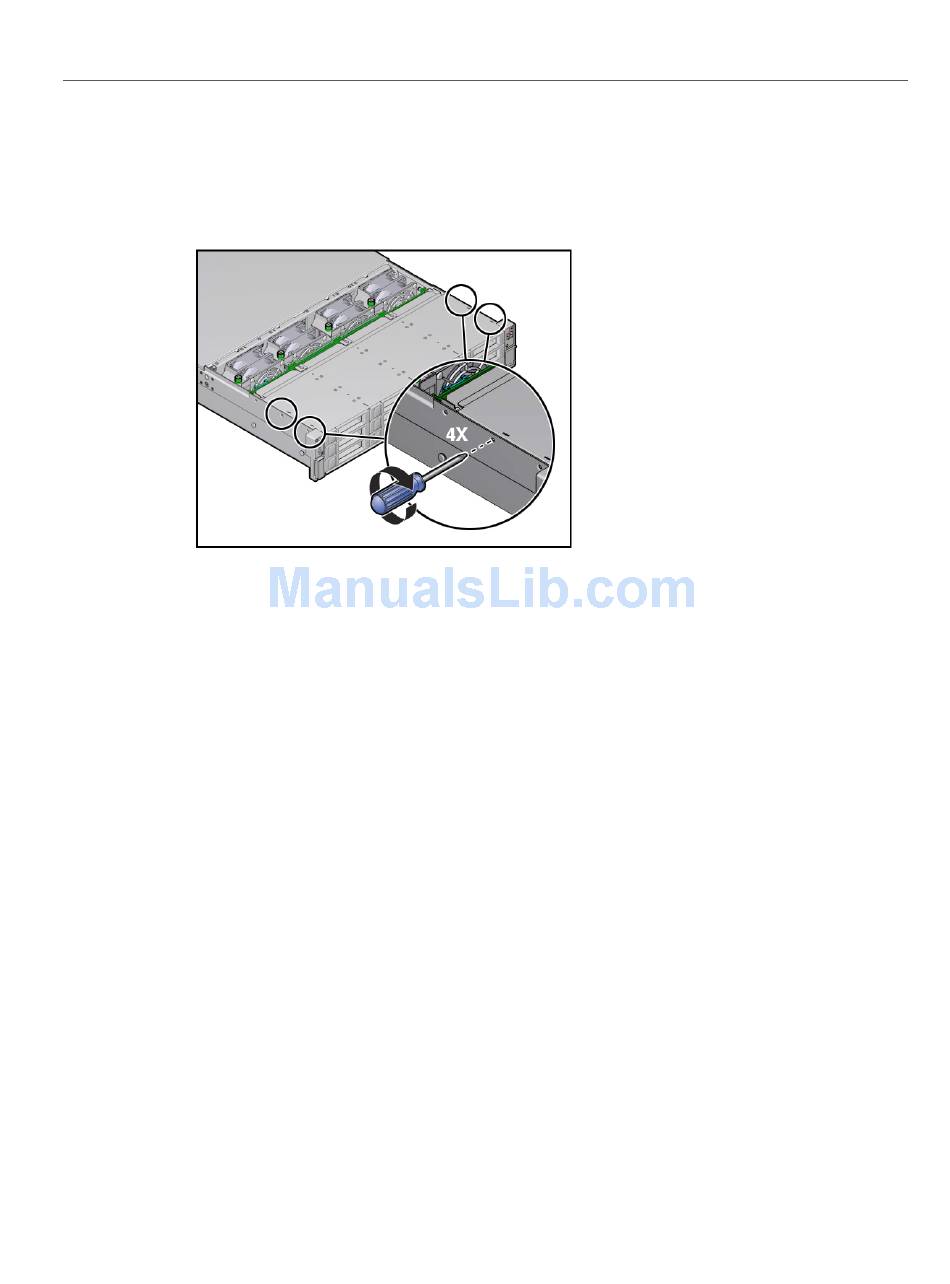

Install the four No. 2 Phillips screws (two on each side of the chassis) that
secure the disk cage assembly to the server chassis.
7.
Install the server front fan assembly door.
See
"Install the Fan Assembly Door" on page
Return the server to operation.
8.
a.
Install the server top cover.
See
Return the server to the normal rack position.
b.
See
c.
Reconnect the power cords to the power supplies, and power on the server.
See
Server" on page
Related Information
"Server System-Level Status Indicators" on page 27
■
"Remove the Right LED/USB Indicator Module" on page 138
■
144
Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
"Install the Server Top Cover" on page
"Return the Server to the Normal Rack Position" on page
"Reconnect Power and Data Cables" on page 167
167. Verify that the power supply AC OK LED is lit.
163.
161.
165.
and
"Power On the
