Remove the Left LED Indicator Module

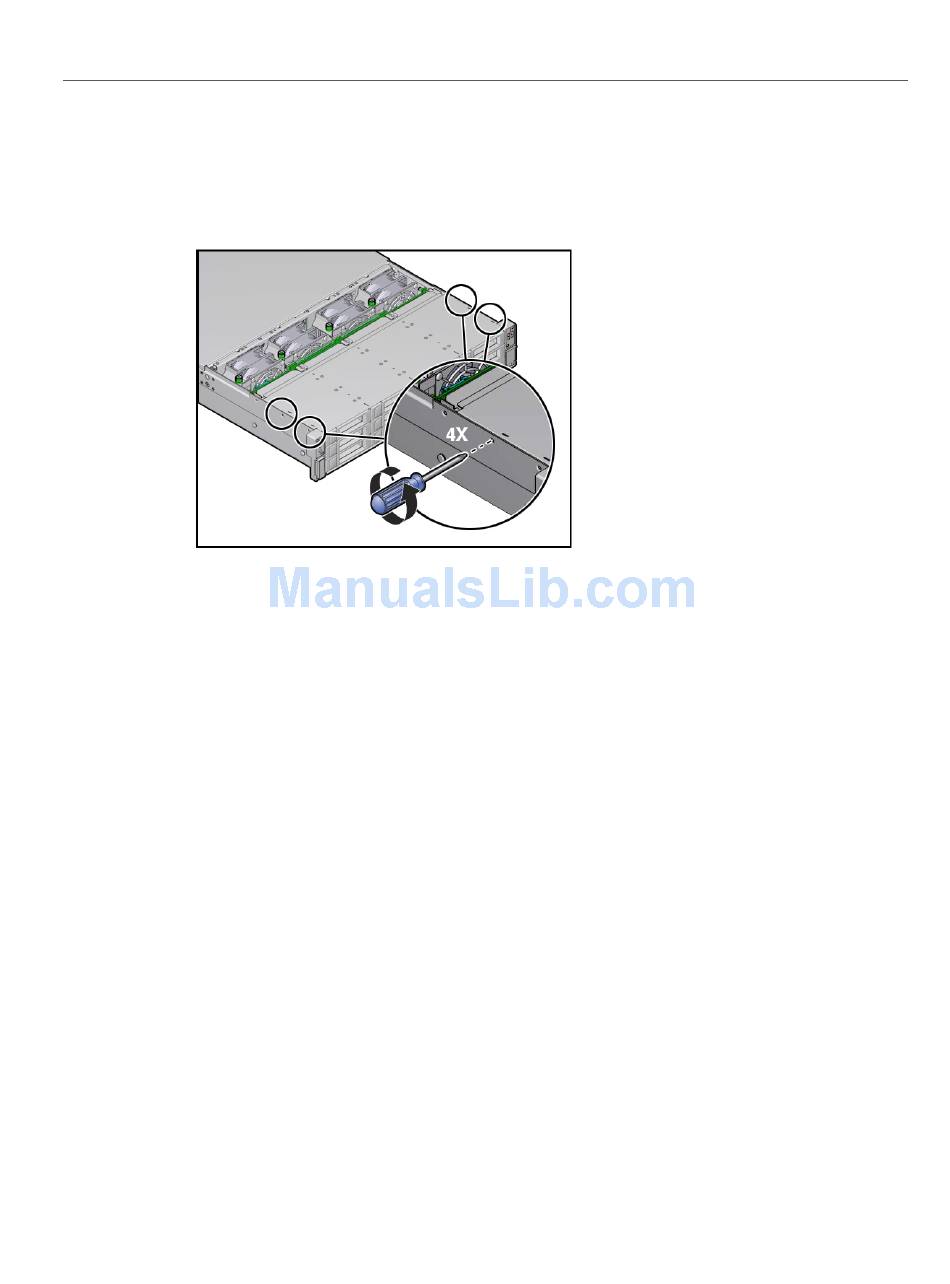

3. Remove the four remaining No. 2 Phillips screws (two on each side of the
chassis) that secure the disk cage assembly to the server chassis.
4. Remove the fan modules from the server.
See "Remove a Fan Module" on page
Disconnect all cables from the front storage drive backplane.
5.
See the procedures for your storage drive configuration in
Backplanes" on page
132 Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
67.
112.
"Servicing the Storage Drive
