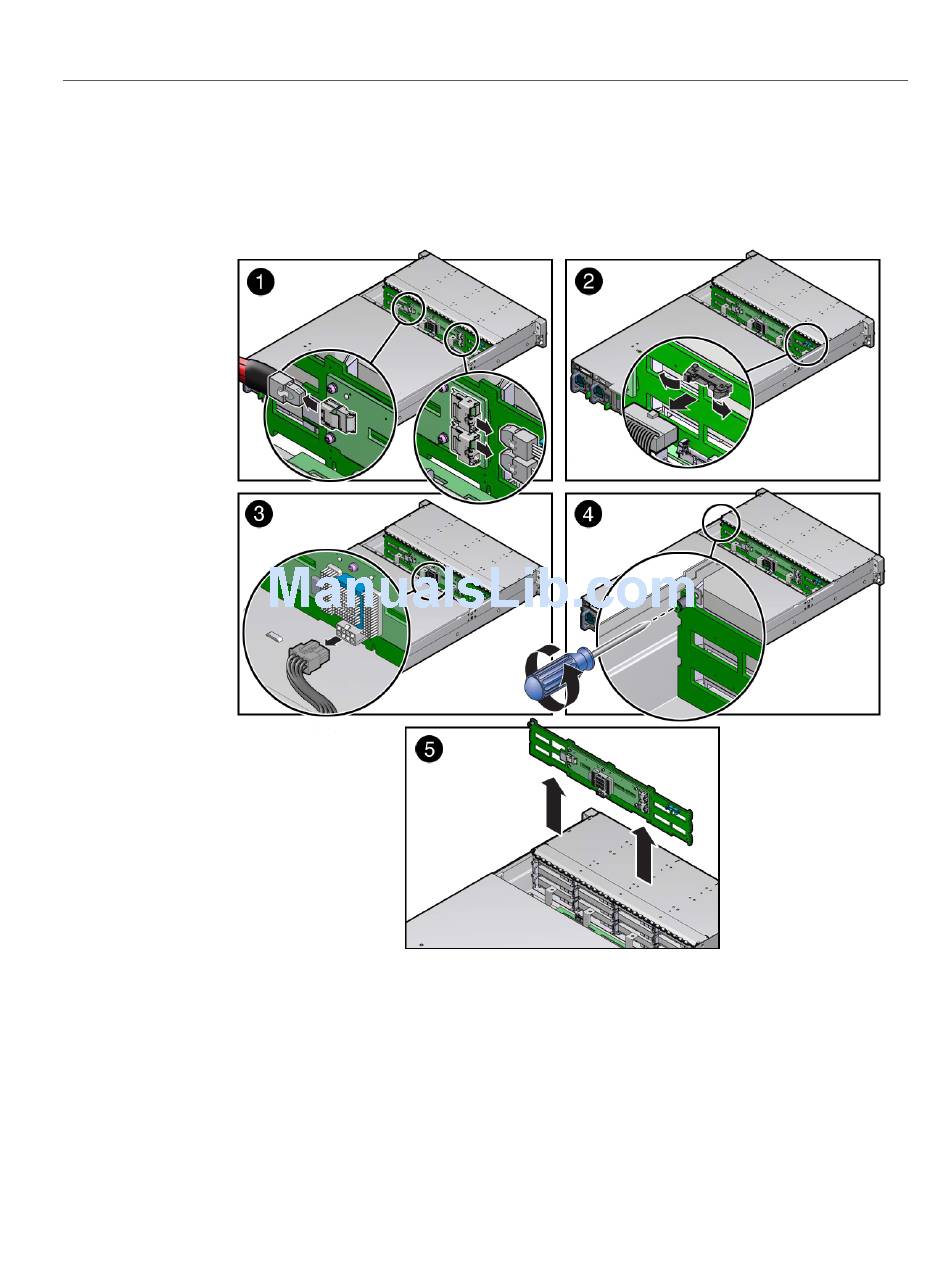

Remove the Storage Drive Backplane
b.
Disconnect the auxiliary signal cable and the power cable from the storage
drive backplane [2].
4.
Using a No. 2 Phillips screwdriver, loosen the right-side spring-mounted screw
that secures the storage drive backplane to the chassis [3].
Lift the storage drive backplane up to release it from the standoff hooks [4].
5.
114
Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
